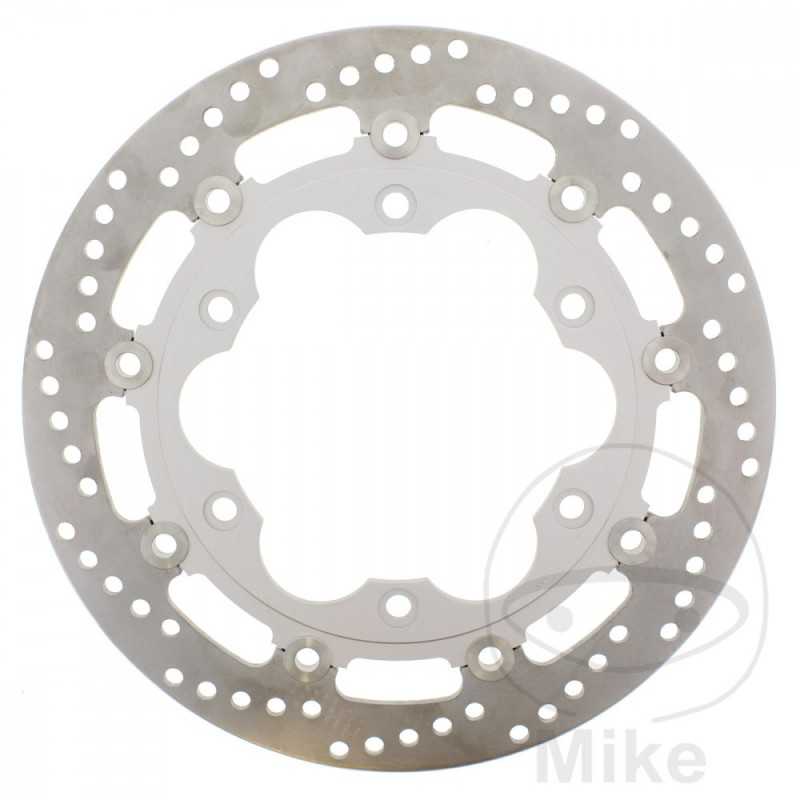

EBC Left brake disc 760.03.37

EBC Prolite floating brake disc, full float. MADE IN THE UK.

The objective of its development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel that has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears away in the contact area of the brake pads as soon as the brakes are applied. Only in this area a slight rust with a longer service life can form.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even with the highest load.

- There is no glazing of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect it from corrosion.

- Anodized aluminum cube.

- The smallest manufacturing tolerances.

- Independent design.
OUTSIDE DIAMETER: 310MM
INSIDE DIAMETER: 144.3MM
CIRCLE SIZE: 166 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
THICKNESS: 4.7MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
TRIUMPH AMERICA 865 56/34 CV, 41/25 KW 2CIL. 986MK BASTIDORES: 3 --3 - 2007
TRIUMPH AMERICA 865 56/34 CV, 41/25 KW 2CIL. 986MK BASTIDORES: SMTTJ9111R --SMTTJ9111R - 2007
TRIUMPH AMERICA 865 EFI 61/34 CV, 45/25 KW 2CIL. 986MK2 BASTIDORES: SMTTJ9118R --SMTTJ9118R - 2008-2009
TRIUMPH BONNEVILLE 800 34 CV, 25 KW 2CIL. 908MD BASTIDORES: 2 - 130133-2 - 2001-2002
TRIUMPH BONNEVILLE 800 34 CV, 25 KW 2CIL. 908MD BASTIDORES: 2 --2 - 2003-2006
TRIUMPH BONNEVILLE 800 61 CV, 45 KW 2CIL. 908MD BASTIDORES: 2 - 130133-2 - 2001-2002
TRIUMPH BONNEVILLE 800 61 CV, 45 KW 2CIL. 908MD BASTIDORES: 2 --2 - 2003-2006
TRIUMPH BONNEVILLE 800 AMERICA 34 CV, 25 KW 2CIL. 908M BASTIDORES: 1 --1 - 2002-2006
TRIUMPH BONNEVILLE 800 AMERICA 61 CV, 45 KW 2CIL. 908M BASTIDORES: 1 --1 - 2002-2006
TRIUMPH BONNEVILLE 800 BLACK 34 CV, 25 KW 2CIL. 908MD BASTIDORES: 2 --2 - 2006
TRIUMPH BONNEVILLE 800 BLACK 61 CV, 45 KW 2CIL. 908MD BASTIDORES: 2 --2 - 2006
TRIUMPH BONNEVILLE 800 T100 34 CV, 25 KW 2CIL. 908MD BASTIDORES: 2 --2 - 2003-2004
TRIUMPH BONNEVILLE 800 T100 61 CV, 45 KW 2CIL. 908MD BASTIDORES: 2 --2 - 2003-2004
TRIUMPH BONNEVILLE 800 T100 CENTENNIAL 34 CV, 25 KW 2CIL. 908MD BASTIDORES: 2 --2 - 2002
TRIUMPH BONNEVILLE 800 T100 CENTENNIAL 61 CV, 45 KW 2CIL. 908MD BASTIDORES: 2 --2 - 2002
TRIUMPH BONNEVILLE 865 68/34 CV, 50/25 KW 2CIL. 986MF BASTIDORES: 1 --1 - 2007
TRIUMPH BONNEVILLE 865 68/34 CV, 50/25 KW 2CIL. 986MF BASTIDORES: SMTTJ9102G --SMTTJ9102G - 2007
TRIUMPH BONNEVILLE 865 BLACK 68/34 CV, 50/25 KW 2CIL. 986MF BASTIDORES: 1 --1 - 2007
TRIUMPH BONNEVILLE 865 BLACK 68/34 CV, 50/25 KW 2CIL. 986MF BASTIDORES: SMTTJ9102G --SMTTJ9102G - 2007
TRIUMPH BONNEVILLE 865 EFI 67/34 CV, 49/25 KW 2CIL. 986MF BASTIDORES: SMTTJ9107G - 317247-SMTTJ9107G - 2008
TRIUMPH BONNEVILLE 865 EFI T100 50TH 67/34 CV, 49/25 KW 2CIL. 986MF BASTIDORES: SMTTJ9157G --SMTTJ9157G - 2009
TRIUMPH BONNEVILLE 865 EFI T100 67/34 CV, 49/25 KW 2CIL. 986MF BASTIDORES: SMTTJ9157G --SMTTJ9157G - 2008-2009
TRIUMPH BONNEVILLE 865 T100 68/34 CV, 50/25 KW 2CIL. 986MF BASTIDORES: 1 --1 - 2005-2007
TRIUMPH BONNEVILLE 865 T100 68/34 CV, 50/25 KW 2CIL. 986MF BASTIDORES: SMTTJ9152G --SMTTJ9152G - 317246 2007
TRIUMPH SCRAMBLER 865 57/34 CV, 42/25 KW 2CIL. 986MG BASTIDORES: 1 --1 - 317246 2006-2007
TRIUMPH SCRAMBLER 865 57/34 CV, 42/25 KW 2CIL. 986MG BASTIDORES: SMTTJ9171G - 317247-SMTTJ9171G - 2007
TRIUMPH SCRAMBLER 865 EFI 58/34 CV, 43/25 KW 2CIL. 986MG2 BASTIDORES: SMTTJ9178G --SMTTJ9178G - 2008
TRIUMPH SCRAMBLER 865 EFI 58/34 CV, 43/25 KW 2CIL. 986MG2 BASTIDORES: SMTTJ9178G --SMTTJ9178G - 421437 2009
TRIUMPH SPEEDMASTER 800 61/34 CV, 45/25 KW 2CIL. 908ML BASTIDORES: 2 --2 - 2003-2004
TRIUMPH SPEEDMASTER 865 34 CV, 25 KW 2CIL. 908ML BASTIDORES: 3 --3 - 2005-2007
TRIUMPH SPEEDMASTER 865 56 CV, 41 KW 2CIL. 908ML BASTIDORES: 3 --3 - 2005-2007
TRIUMPH SPEEDMASTER 865 56/34 CV, 41/25 KW 2CIL. 908ML BASTIDORES: SMTTJ9161R --SMTTJ9161R - 2007
TRIUMPH SPEEDMASTER 865 EFI 61/34 CV, 45/25 KW 2CIL. 986ML2 BASTIDORES: SMTTJ9168R --SMTTJ9168R - 2008-2009
TRIUMPH THUNDERBIRD 900 SPORT 78 CV, 57 KW 3CIL. T309RD BASTIDORES: 1 --1 - 2004
TRIUMPH THUNDERBIRD 900 SPORT 78 CV, 57 KW 3CIL. T309RT BASTIDORES: 378 --378 - 1997-2000
TRIUMPH THUNDERBIRD 900 SPORT 82 CV, 60 KW 3CIL. T309RD BASTIDORES: 1 --1 - 2003
TRIUMPH TIGER 900 83 CV, 61 KW 3CIL. T400 BASTIDORES: 431 --431 - 71698 1997-1998
TRIUMPH TIGER 900 EFI 83 CV, 61 KW 3CIL. T709 BASTIDORES: 711 - 71699-711 - 1999
TRIUMPH TIGER 900 EFI 83 CV, 61 KW 3CIL. T709 BASTIDORES: 711 --711 - 2000-2001
TRIUMPH TIGER 955 I LLANTA DE RADIOS 106 CV, 78 KW 3CIL. 709EN BASTIDORES: 730 --730 - 198874 2004
TRIUMPH TIGER 955 I LLANTA DE RADIOS 98 CV, 72 KW 3CIL. 709EN BASTIDORES: 730 --730 - 198874 2004
TRIUMPH TIGER 955 I LLANTA DE RADIOS 98 CV, 72 KW 3CIL. 709EN BASTIDORES: 730 --730 - 2001-2003
