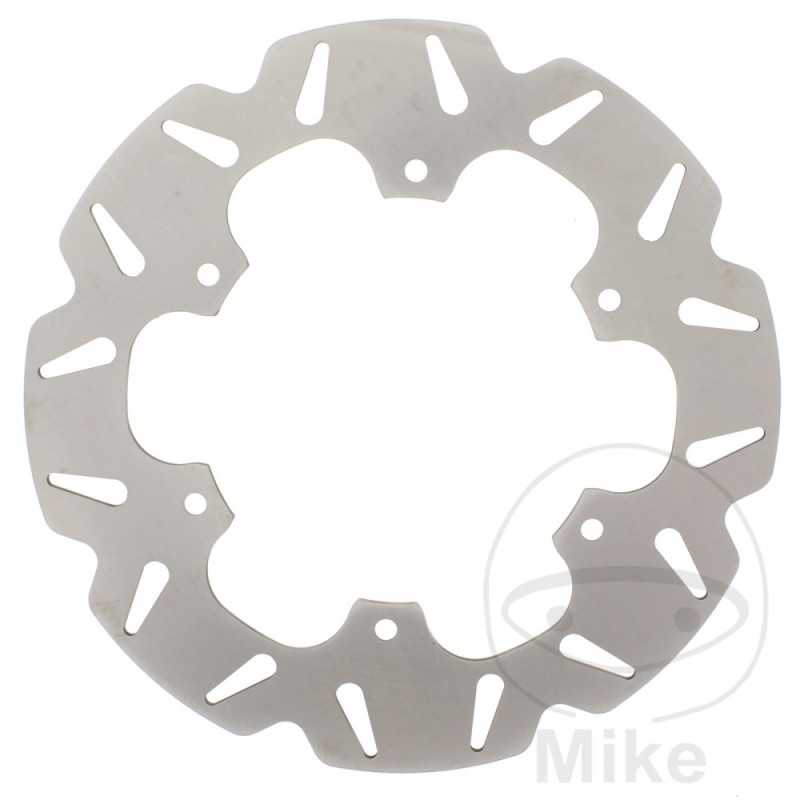

EBC Stainless steel brake disc for motorcycle EXTREME CX 760.03.35

EBC CX Series Rigid Motocross Brake Disc.

The material used for the new CX brake discs is completely stainless steel, heat treated with a higher friction effect.

With the improvement of the friction effect, the braking force is further increased.

The design provides a great look for various motocross models. The so-called "V-notches" in the brake disc profile are for the purpose of self-cleaning the brake disc.

The goal is also to save weight. The fewer holes there are, the better the performance of the brakes in the wet and the less wear on the brake disc.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 118.2MM
CIRCLE SIZE: 134 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki DR 125 SM 11 CV, 8,1 kw 1cil. CS1111 K9 Bastidores: CS1111 henceforth0100001-CS1111 henceforth0100797 2008-2009
Suzuki DR 125 SM 11 CV, 8,1 kw 1cil. CS1111 L0 Bastidores: CS1111 henceforth0100798-- 2010-2013
Suzuki DR-Z 400 49 CV, 36 kw 1cil. BE1111 K2 Bastidores: BE1111 henceforth0101663-BE1111 henceforth0101675 2002
Suzuki DR-Z 400 49 CV, 36 kw 1cil. BE1111 K3 Bastidores: BE1111 henceforth0101676-- 2003-2004
Suzuki DR-Z 400 49/14 CV, 36/10 kw 1cil. BE1111 K1 Bastidores: BE1111 henceforth0101391-BE1111 henceforth0101662 2001
Suzuki DR-Z 400 49/14 CV, 36/10 kw 1cil. BE1111 Y Bastidores: BE1111 henceforth0100001-BE1111 henceforth0101390 2000
Suzuki DR-Z 400 E 33 CV, 24 kw 1cil. BF1111 K1 Bastidores: BF1111 henceforth0101327-BF1111 henceforth0102359 2001
Suzuki DR-Z 400 E 33 CV, 24 kw 1cil. BF1111 Y Bastidores: BF1111 henceforth0100001-BF1111 henceforth0101326 2000
Suzuki DR-Z 400 E 49 CV, 36 kw 1cil. BF1111 K2 Bastidores: BF1111 henceforth0102360-BF1111 henceforth0103442 2002
Suzuki DR-Z 400 E 49 CV, 36 kw 1cil. BF1111 K3 Bastidores: BF1111 henceforth0103443-- 2003-2004
Suzuki DR-Z 400 E 49 CV, 36 kw 1cil. BF1111 K5 Bastidores: BF1111 henceforth0105561-BF1111 henceforth0106777 2005
Suzuki DR-Z 400 E 49/33 CV, 36/24 kw 1cil. BF1111 K6 Bastidores: BF1111 henceforth0106778-BF1111 henceforth0107170 2006
Suzuki DR-Z 400 E 49/33 CV, 36/24 kw 1cil. BF1111 K7 Bastidores: BF1111 henceforth0107171-- 2007
Suzuki DR-Z 400 S 39 CV, 29 kw 1cil. WVBC1112 K1 Bastidores: BC1112 henceforth0103867-BC1112 henceforth0105028 2001
Suzuki DR-Z 400 S 39 CV, 29 kw 1cil. WVBC1112 K2 Bastidores: BC1112 henceforth0105029-BC1112 henceforth0105820 2002
Suzuki DR-Z 400 S 39 CV, 29 kw 1cil. WVBC1112 K3 Bastidores: BC1112 henceforth0105821-BC1112 henceforth0107185 2003
Suzuki DR-Z 400 S 39 CV, 29 kw 1cil. WVBC1112 K4 Bastidores: BC1112 henceforth0107186-BC1112 henceforth0108192 2004
Suzuki DR-Z 400 S 39 CV, 29 kw 1cil. WVBC1112 K5 Bastidores: BC1112 henceforth0108193-BC1112 henceforth0109110 2005
Suzuki DR-Z 400 S 39 CV, 29 kw 1cil. WVBC1112 K6 Bastidores: BC1112 henceforth0109111-BC1112 henceforth0110006 2006
Suzuki DR-Z 400 S 39 CV, 29 kw 1cil. WVBC1112 K7 Bastidores: BC1112 henceforth0110007-BC1112 henceforth0110639 2007
Suzuki DR-Z 400 S 39 CV, 29 kw 1cil. WVBC1112 K8 Bastidores: BC1112 henceforth0110640-- 2008
Suzuki DR-Z 400 S 39 CV, 29 kw 1cil. WVBC1112 Y Bastidores: BC1112 henceforth0100001-BC1112 henceforth0103866 2000
Suzuki RM 125 36 CV, 26 kw 1cil. RF13A J Bastidores: RF13A-105335-- 1988
Suzuki RM 125 36 CV, 26 kw 1cil. RF14A K Bastidores: RF14A-100001-RF14A-102530 1989
Suzuki RM 125 36 CV, 26 kw 1cil. RF14A L Bastidores: RF14A-102531-RF14A-104706 1990
Suzuki RM 125 38,5 CV, 28,3 kw 1cil. RF14A M Bastidores: RF14A-104707-RF14A-107537 1991
Suzuki RM 125 38,5 CV, 28,3 kw 1cil. RF14A N Bastidores: RF14A-107538-RF14A-110768 1992
Suzuki RM 125 38,5 CV, 28,3 kw 1cil. RF14A P Bastidores: RF14A-110769-RF14A-113492 1993
Suzuki RM 125 38,5 CV, 28,3 kw 1cil. RF14A R Bastidores: RF14A-113493-RF14A-115871 1994
Suzuki RM 125 38,5 CV, 28,3 kw 1cil. RF14A S Bastidores: RF14A-115872-- 1995
Suzuki RM 125 40 CV, 29 kw 1cil. RF15A T Bastidores: RF15A-100001-RF15A-101275 1996
Suzuki RM 125 40 CV, 29 kw 1cil. RF15A V Bastidores: RF15A-101276-RF15A-102552 1997
Suzuki RM 125 40 CV, 29 kw 1cil. RF15A W Bastidores: RF15A-102553-RF15A-104211 1998
Suzuki RM 250 1cil. RJ13A H Bastidores: RJ13A-H2100001-- 1987
Suzuki RM 250 51 CV, 38 kw 1cil. RJ14A J Bastidores: RJ14A-J2100001-- 1988
Suzuki RM 250 51 CV, 38 kw 1cil. RJ15A K Bastidores: RJ15A-100001-RJ15A-101028 1989
Suzuki RM 250 51 CV, 38 kw 1cil. RJ15A L Bastidores: RJ15A-101029-RJ15A-104374 1990
Suzuki RM 250 53 CV, 39 kw 1cil. RJ15A M Bastidores: RJ15A-104375-- 1991
Suzuki RM 250 53 CV, 39 kw 1cil. RJ15A N Bastidores: RJ15A-106425-- 1992
Suzuki RM 250 53 CV, 39 kw 1cil. RJ16A P Bastidores: RJ16A-100001-RJ16A-102340 1993
Suzuki RM 250 53 CV, 39 kw 1cil. RJ16A R Bastidores: RJ16A-102341-RJ16A-104167 1994
Suzuki RM 250 53 CV, 39 kw 1cil. RJ16A S Bastidores: RJ16A-104168-- 1995
Suzuki RM 250 53 CV, 39 kw 1cil. RJ17A T Bastidores: RJ17A-100001-RJ17A-100948 1996
Suzuki RM 250 53 CV, 39 kw 1cil. RJ17A V Bastidores: RJ17A-100949-RJ17A-101854 1997
Suzuki RM 250 54 CV, 40 kw 1cil. RJ17A W Bastidores: RJ17A-101855-RJ17A-102948 1998
Suzuki RMX 250 40 CV, 29,5 kw 1cil. PJ11A M Bastidores: PJ11A-M2100001-- 1991
Suzuki RMX 250 40 CV, 29,5 kw 1cil. PJ11A N Bastidores: PJ11A-N2100001-- 1992
Suzuki RMX 250 52 CV, 38 kw 1cil. PJ11A P Bastidores: PJ11A-P2100001-- 1993
Suzuki RMX 250 52 CV, 38 kw 1cil. PJ11A R Bastidores: PJ11A-R2100001-- 1994
Suzuki RMX 250 52 CV, 38 kw 1cil. PJ11A S Bastidores: PJ11A-S2100001-- 1995
Suzuki RMX 250 52 CV, 38 kw 1cil. PJ11A T Bastidores: PJ11A-T2100001-- 1996
Suzuki RMX 250 52 CV, 38 kw 1cil. PJ11A V Bastidores: PJ11A-V2100001-- 1997
Suzuki RMX 250 52 CV, 38 kw 1cil. PJ11A W Bastidores: PJ11A-W2100001-- 1998
