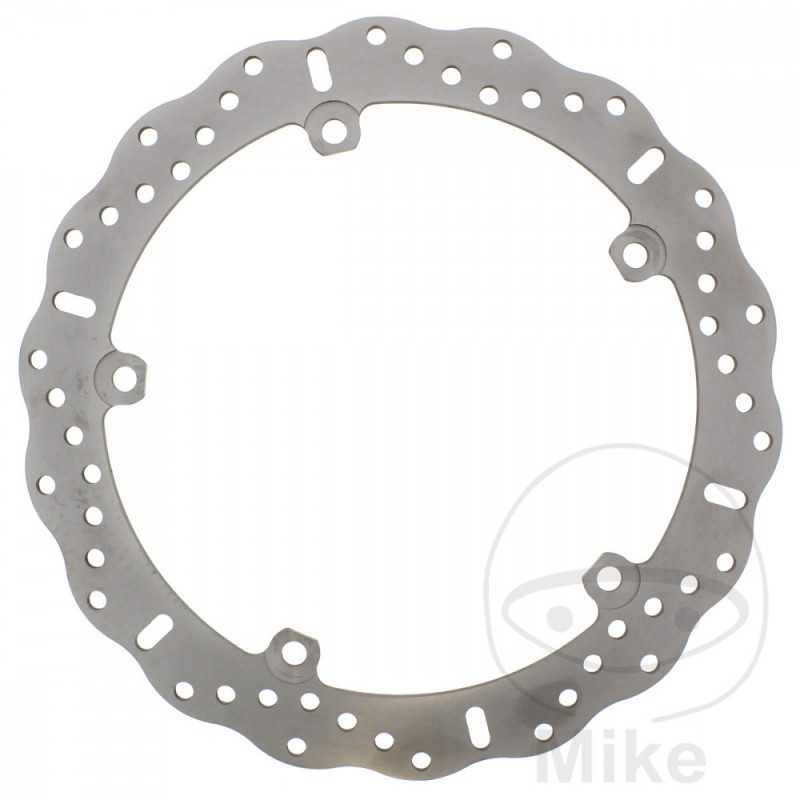

EBC Stainless steel brake disc for motorcycle CONTOUR 760.03.17

EBC Contour Brake Disc

The aim of development is to improve braking performance compared to the original brake disc. EBC uses heat-treated carbon steel for the MX Contour brake rotors. This steel is much more resistant to rust than cast steel.

In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears off in the contact area of the brake pads already during braking.

Only in this area a slight rust with a longer service life can form.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Cutting-edge Contour design

- Super-light, rigid brake disc, completely new profile.

- Made of carbon steel with heat treatment.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Zinc plated to protect it from corrosion.

- Independent design.

- The thickness of the brake disc may vary from the original part.

MADE IN THE UK
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 212.2MM
CIRCLE SIZE: 230 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CTX 700 D DCT ABS DCT semicarenado 48 CV, 35 kw 2cil. RC69C E Bastidores: JH2 RC69C-EK000001-- 2014-2017
Honda NC 700 D Integra DCT ABS 48 CV, 35 kw 2cil. RC62B C Bastidores: JH2 RC62B-CK000001-JH2 RC62B-CK099999 2012
Honda NC 700 D Integra DCT ABS 52 CV, 38 kw 2cil. RC62A C Bastidores: JH2 RC62A-CK000001-JH2 RC62A-CK099999 2012
Honda NC 700 D Integra DCT ABS 52 CV, 38 kw 2cil. RC62A D Bastidores: JH2 RC62A-DK100001-- 2013
Honda NC 700 SA ABS 48 CV, 35 kw 2cil. RC61C C Bastidores: JH2 RC61C-CK000001-JH2 RC61C-CK099999 2012
Honda NC 700 SA ABS 48 CV, 35 kw 2cil. RC61C D Bastidores: JH2 RC61C-DK100001-- 2013-2014
Honda NC 700 SA ABS 52 CV, 38 kw 2cil. RC61A C Bastidores: JH2 RC61A-CK000001-JH2 RC61A-CK099999 2012
Honda NC 700 SA ABS 52 CV, 38 kw 2cil. RC61A D Bastidores: JH2 RC61A-DK100001-- 2013-2014
Honda NC 700 SD DCT ABS 48 CV, 35 kw 2cil. RC61D C Bastidores: JH2 RC61D-CK000001-JH2 RC61D-CK099999 2012
Honda NC 700 SD DCT ABS 48 CV, 35 kw 2cil. RC61D D Bastidores: JH2 RC61D-DK100001-- 2013
Honda NC 700 SD DCT ABS 48 CV, 35 kw 2cil. RC61D E Bastidores: JH2 RC61D-EK200001-- 2014
Honda NC 700 XA ABS 48 CV, 35 kw 2cil. RC63E C Bastidores: JH2 RC63E-CK000001-JH2 RC63E-CK009999 2012
Honda NC 700 XA ABS 48 CV, 35 kw 2cil. RC63E D Bastidores: JH2 RC63E-DK100001-- 2013-2014
Honda NC 700 XA ABS 52 CV, 38 kw 2cil. RC63B C Bastidores: JH2 RC63B-CK500001-JH2 RC63B-CK509999 2012
Honda NC 700 XA ABS 52 CV, 38 kw 2cil. RC63B D Bastidores: JH2 RC63B-DK600001-- 2013-2014
Honda NC 700 XD DCT ABS 48 CV, 35 kw 2cil. RC63F D Bastidores: JH2 RC63F-DK000001-- 2013-2014
Honda NC 700 XD DCT ABS 52 CV, 38 kw 2cil. RC63D C Bastidores: JH2 RC63D-CK000001-JH2 RC63D-CK009999 2012
Honda NC 700 XD DCT ABS 52 CV, 38 kw 2cil. RC63D D Bastidores: JH2 RC63D-DK100001-- 2013-2014
Honda NC 750 D Integra DCT ABS 48 CV, 35 kw 2cil. RC89B J Bastidores: JH2 RC89B-JK000001-JH2 RC89B-JK299999 2018
Honda NC 750 D Integra DCT ABS 48 CV, 35 kw 2cil. RC89B K Bastidores: JH2 RC89B-KK100001-- 2019-2021
Honda NC 750 D Integra DCT ABS 55 CV, 40 kw 2cil. RC89A J Bastidores: JH2 RC89A-JK200001-JH2 RC89A-JK299999 2018
Honda NC 750 D Integra DCT ABS 55 CV, 40 kw 2cil. RC89A K Bastidores: JH2 RC89A-KK300001-- 2019-2021
Honda NC 750 D Integra DCT ABS 55/48 CV, 40/35 kw 2cil. RC71A E Bastidores: JH2 RC71A-EK000001-- 2014-2015
Honda NC 750 D Integra DCT ABS 55/48 CV, 40/35 kw 2cil. RC89A G Bastidores: JH2 RC89A-GK000001-JH2 RC89A-GK099999 2016
Honda NC 750 D Integra DCT ABS 55/48 CV, 40/35 kw 2cil. RC89A H Bastidores: JH2 RC89A-HK100001-JH2 RC89A-HK199999 2017
Honda NC 750 J NM4 Vultus DCT ABS 55 CV, 40,3 kw 2cil. RC82A F Bastidores: JH2 RC82A-FK000001-JH2 RC82A-FK099999 2014-2016
Honda NC 750 J NM4 Vultus DCT ABS 55 CV, 40,3 kw 2cil. RC92A H Bastidores: JH2 RC92A-HK000001-- 2017
Honda NC 750 SA ABS 48 CV, 35 kw 2cil. RC88C J Bastidores: JH2 RC88C-JK000001-- 2018
Honda NC 750 SA ABS 48 CV, 35 kw 2cil. RC88C K Bastidores: JH2 RC88C-KK100001-- 2019-2021
Honda NC 750 SA ABS 55 CV, 40,3 kw 2cil. RC70B E Bastidores: JH2 RC70B-EK000001-- 2014
Honda NC 750 SA ABS 55 CV, 40,3 kw 2cil. RC70B F Bastidores: JH2 RC70B-FK100001-- 2015
Honda NC 750 SA ABS 55 CV, 40,3 kw 2cil. RC88A G Bastidores: JH2 RC88A-GK000001-JH2 RC88A-GK099999 2016
Honda NC 750 SA ABS 55 CV, 40,3 kw 2cil. RC88A H Bastidores: JH2 RC88A-HK100001-- 2017
Honda NC 750 SA ABS 55 CV, 40,3 kw 2cil. RC88A J Bastidores: JH2 RC88A-JK200001-- 2018
Honda NC 750 SA ABS 55 CV, 40,3 kw 2cil. RC88A K Bastidores: JH2 RC88A-KK300001-- 2019-2021
Honda NC 750 SD DCT ABS 48 CV, 35 kw 2cil. RC88B K Bastidores: JH2 RC88D-KK100001-- 2021
Honda NC 750 SD DCT ABS 48 CV, 35 kw 2cil. RC88D J Bastidores: JH2 RC88D-JK000001-- 2018
Honda NC 750 SD DCT ABS 48 CV, 35 kw 2cil. RC88D K Bastidores: JH2 RC88D-KK100001-- 2019-2020
Honda NC 750 SD DCT ABS 55 CV, 40,3 kw 2cil. RC70C E Bastidores: JH2 RC70C-EK000001-- 2014-2015
Honda NC 750 SD DCT ABS 55 CV, 40,3 kw 2cil. RC70D E Bastidores: JH2 RC70D-EK000001-- 2014-2015
Honda NC 750 SD DCT ABS 55 CV, 40,3 kw 2cil. RC88B G Bastidores: JH2 RC88B-GK000001-JH2 RC88B-GK099999 2016
Honda NC 750 SD DCT ABS 55 CV, 40,3 kw 2cil. RC88B H Bastidores: JH2 RC88B-HK100001-- 2017
Honda NC 750 SD DCT ABS 55 CV, 40,5 kw 2cil. RC88B J Bastidores: JH2 RC88B-JK200001-- 2018
Honda NC 750 SD DCT ABS 55 CV, 40,5 kw 2cil. RC88B K Bastidores: JH2 RC88B-KK300001-- 2019-2021
Honda NC 750 XA ABS 48 CV 35 kw 2cil. RH09C M Bastidores: JH2 RH09C-MK000001-- 2021-2022
Honda NC 750 XA ABS 48 CV, 35 kw 2cil. RC90C J Bastidores: JH2 RC90C-JK000001-- 2018
Honda NC 750 XA ABS 48 CV, 35 kw 2cil. RC90C K Bastidores: JH2 RC90C-KK100001-JH2 RC90C-KK199999 2019
Honda NC 750 XA ABS 48 CV, 35 kw 2cil. RC90C L Bastidores: JH2 RC90C-LK200001-- 2020
Honda NC 750 XA ABS 55 CV, 40,3 kw 2cil. RC72B E Bastidores: JH2 RC72B-EK000001-- 2014-2015
Honda NC 750 XA ABS 55 CV, 40,3 kw 2cil. RC90A G Bastidores: JH2 RC90A-GK000001-JH2 RC90A-GK099999 2016
Honda NC 750 XA ABS 55 CV, 40,3 kw 2cil. RC90A H Bastidores: JH2 RC90A-HK100001-JH2 RC90A-HK199999 2017
Honda NC 750 XA ABS 55 CV, 40,5 kw 2cil. RC90A J Bastidores: JH2 RC90A-JK200001-- 2018
Honda NC 750 XA ABS 55 CV, 40,5 kw 2cil. RC90A K Bastidores: JH2 RC90A-KK300001-JH2 RC90A-KK399999 2019
Honda NC 750 XA ABS 55 CV, 40,5 kw 2cil. RC90A L Bastidores: JH2 RC90A-LK400001-- 2020
Honda NC 750 XA ABS 59 CV 43 kw 2cil. RH09A M Bastidores: JH2 RH09A-MK000001-- 2021-2022
Honda NC 750 XD DCT ABS 48 CV 35 kw 2cil. RH09D M Bastidores: JH2 RH09D-MK000001-- 2021-2022
Honda NC 750 XD DCT ABS 48 CV, 35 kw 2cil. RC90D J Bastidores: JH2 RC90D-JK000001-- 2018
Honda NC 750 XD DCT ABS 48 CV, 35 kw 2cil. RC90D K Bastidores: JH2 RC90D-KK100001-JH2 RC90D-KK199999 2019
Honda NC 750 XD DCT ABS 48 CV, 35 kw 2cil. RC90D L Bastidores: JH2 RC90D-LK200001-- 2020
Honda NC 750 XD DCT ABS 55 CV, 40,3 kw 2cil. RC72C E Bastidores: JH2 RC72C-EK000001-- 2014-2015
Honda NC 750 XD DCT ABS 55 CV, 40,3 kw 2cil. RC72D E Bastidores: JH2 RC72D-EK000001-- 2014-2015
Honda NC 750 XD DCT ABS 55 CV, 40,3 kw 2cil. RC90B G Bastidores: JH2 RC90B-GK000001-JH2 RC90B-GK099999 2016
Honda NC 750 XD DCT ABS 55 CV, 40,3 kw 2cil. RC90B H Bastidores: JH2 RC90B-HK100001-JH2 RC90B-HK199999 2017
Honda NC 750 XD DCT ABS 55 CV, 40,5 kw 2cil. RC90B J Bastidores: JH2 RC90B-JK200001-- 2018
Honda NC 750 XD DCT ABS 55 CV, 40,5 kw 2cil. RC90B K Bastidores: JH2 RC90B-KK300001-JH2 RC90B-KK399999 2019
Honda NC 750 XD DCT ABS 55 CV, 40,5 kw 2cil. RC90B L Bastidores: JH2 RC90B-LK400001-- 2020
Honda NC 750 XD DCT ABS 59 CV 43 kw 2cil. RH09B M Bastidores: JH2 RH09B-MK000001-- 2021-2022
Zero DS 23 CV, 17 kw 0cil. - Bastidores: --- 2011
Zero DS 54 CV, 40 kw 0cil. - Bastidores: --- 2012
Zero DS ABS 44 CV, 33 kw 0cil. - Bastidores: --- 2019
Zero DS ABS 54 CV, 40 kw 0cil. - Bastidores: --- 2016
Zero DS ABS 60 CV, 45 kw 0cil. - Bastidores: --- 2017-2018
Zero DSR ABS 69 CV, 52 kw 0cil. - Bastidores: --- 2017-2021
Zero DSR Black Forest ABS 69 CV, 52 kw 0cil. - Bastidores: --- 2020-2021
Zero FXS ZF 6,5 ABS 44 CV, 33 kw 0cil. - Bastidores: --- 2017-2021
Zero S ABS llanta de fundición 54 CV, 40 kw 0cil. - Bastidores: --- 2016
Zero S ABS llanta de fundición 60 CV, 45 kw 0cil. - Bastidores: --- 2017-2019
Zero S llanta de fundición 0cil. - Bastidores: --- 2012
Zero S llanta de fundición 54 CV, 40 kw 0cil. - Bastidores: --- 2013-2014
Zero S llanta de fundición 67 CV, 50 kw 0cil. - Bastidores: --- 2015
Zero SR 67 CV, 50 kw 0cil. - Bastidores: --- 2015
Zero SR 68 CV, 50 kw 0cil. - Bastidores: --- 2014
Zero SR ABS 67 CV, 50 kw 0cil. - Bastidores: --- 2016
Zero SR ABS 69 CV, 52 kw 0cil. - Bastidores: --- 2017-2019
