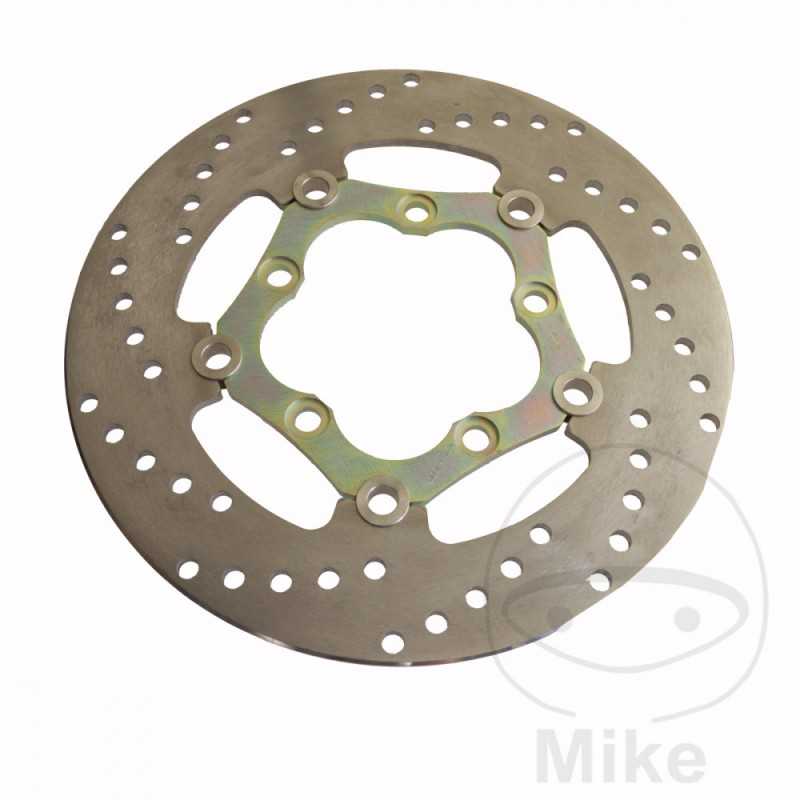

EBC Left brake disc 760.03.00

EBC Prolite floating brake disc, full float. MADE IN THE UK.

The aim of development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the contact zone of the brake pads already during braking. Only in this area can slight oxidation form after a long period of use.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even with the highest load.

- There is no vitrification of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect it from corrosion.

- Anodized aluminum cube.

- The smallest manufacturing tolerances.

- Independent design.
OUTSIDE DIAMETER: 270MM
INSIDE DIAMETER: 93.2MM
CIRCLE SIZE: 112 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
THICKNESS: 6MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Moto Guzzi California 1000 III 67 CV, 49 kw 2cil. VW Bastidores: VW 11111-VW 17350 1987-1993
Moto Guzzi California 1000 III Carenato carenado 67 CV, 49 kw 2cil. VY Bastidores: --- 1988-1990
Moto Guzzi California 1000 III ie 71 CV, 52 kw 2cil. VY Bastidores: VY11111-VY 11450 1990-1993
Moto Guzzi Le Mans 1000 81 CV, 60 kw 2cil. VV Bastidores: VV 11111-- 1984-1986
Moto Guzzi Le Mans 1000 CI 81 CV, 60 kw 2cil. VV Bastidores: VV 16350-VV 16984 1992
Moto Guzzi Le Mans 1000 CI 81 CV, 60 kw 2cil. VV Bastidores: VV 16350-VV 16994 1989-1989
Moto Guzzi Le Mans 1000 CI 81 CV, 60 kw 2cil. VV Bastidores: VV 16350-VV 16994 1991-1991
Moto Guzzi Le Mans 1000 CI 81 CV, 60 kw 2cil. VV Bastidores: VV 16350-VV 16994 1993-1993
Moto Guzzi Le Mans 1000 Rueda delantera 18 pulgadas 81 CV, 60 kw 2cil. VV Bastidores: VV 14000-VV 16349 1987-1988
Moto Guzzi Nevada 750 27/49 CV, 20/36 kw 2cil. LF Bastidores: LF 11111-LF 12999 1989-1993
Moto Guzzi Nevada 750 27/49 CV, 20/36 kw 2cil. LF Bastidores: LF 13000-LF 23275 1994-1997
Moto Guzzi Nevada 750 34/46 CV, 25/34 kw 2cil. LK Bastidores: --- 2002-2004
Moto Guzzi Nevada 750 34/48 CV, 25/35 kw 2cil. LF Bastidores: --- 1998-1999
Moto Guzzi Nevada 750 34/48 CV, 25/35 kw 2cil. LK Bastidores: LK 11111-- 2000-2001
Moto Guzzi S 1000 81 CV, 60 kw 2cil. VV Bastidores: VV 50001-VV 51190 1990-1993
Moto Guzzi SP 1000 III 71 CV, 52 kw 2cil. VN Bastidores: VN 11111-VN 11901 1988-1996
Moto Guzzi V75 750 SP 46 CV, 34 kw 2cil. LT Bastidores: LT 30000-LT 30199 1989-1996
