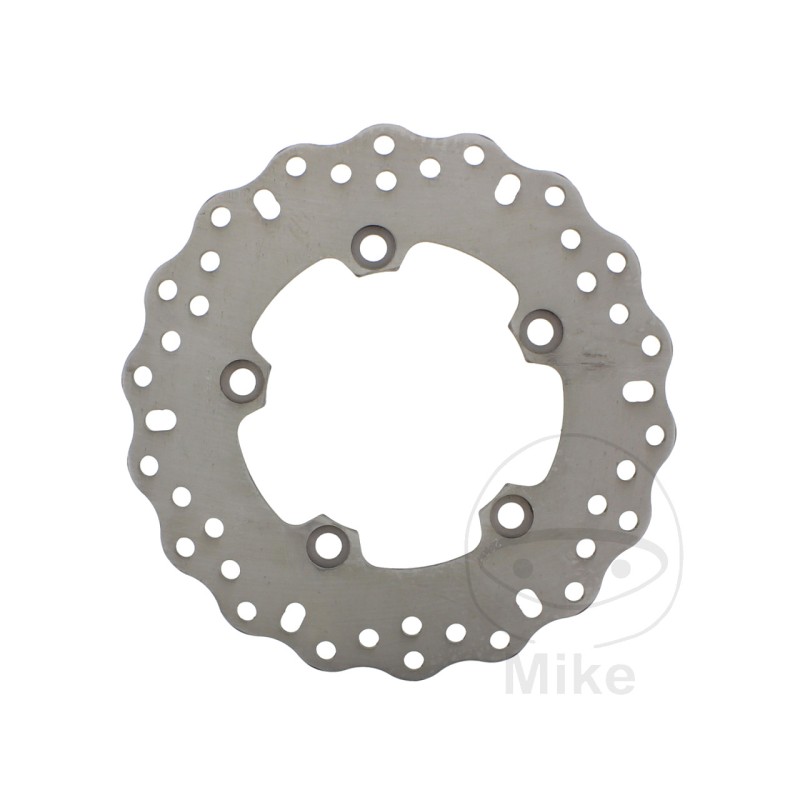

EBC Motorcycle brake disc CONTOUR 760.02.76

EBC Contour Brake Disc

The aim of development is to improve braking performance compared to the original brake disc. EBC uses heat-treated carbon steel for the MX Contour brake rotors. This steel is much more resistant to rust than cast steel.

In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears off in the contact area of the brake pads already during braking.

Only in this area a slight rust with a longer service life can form.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Cutting-edge Contour design

- Super-light, rigid brake disc, completely new profile.

- Made of carbon steel with heat treatment.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Zinc plated to protect it from corrosion.

- Independent design.

- The thickness of the brake disc may vary from the original part.

MADE IN THE UK

Features:
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 125MM
CIRCLE SIZE: 125 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID
INSIDE DIAMETER: 105.2MM
FILLING: 0 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:
COMPATIBLE WITH Yamaha MT-10 1000 A ABS 2016-2017
COMPATIBLE WITH Yamaha MT-10 1000 A ABS MTN1000 2022-2026
COMPATIBLE WITH Yamaha MT-10 1000 A /Touring Edition ABS 2018-2020
COMPATIBLE WITH Yamaha MT-10 1000 A /Touring Edition ABS MTN1000 2021
COMPATIBLE WITH Yamaha MT-10 1000 SP A ABS 2017-2020
COMPATIBLE WITH Yamaha MT-10 1000 SP A ABS MTN1000D 2021-2026
COMPATIBLE WITH Yamaha YZF-R1 1000 2004-2014
COMPATIBLE WITH Yamaha YZF-R1 1000 Anniversary 2012-2013
COMPATIBLE WITH Yamaha YZF-R1 1000 SP 2006
COMPATIBLE WITH Yamaha YZF-R6 600 ABS 2017-2021
COMPATIBLE WITH Yamaha YZF-R6 600 2003-2017
COMPATIBLE WITH Yamaha YZF-R6 600 Anniversary 2012-2013
COMPATIBLE WITH Yamaha YZF-R6 600 S Edition 2006-2007
