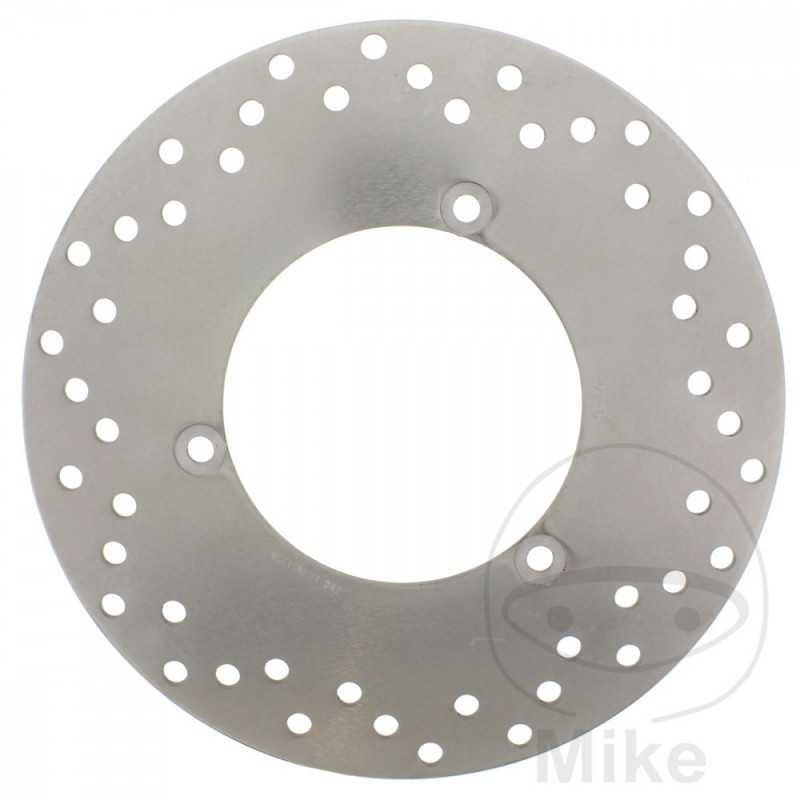

EBC Stainless steel brake disc for motorcycle SCOOTER 760.02.75

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which erodes in the area of the contact patch of the brake pads during braking. Only in this area can the form more easily oxidize during the long life.

The brake discs are perforated in Vogelschwingendesign to fit with as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes installed, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered brake pads.

- Independent design.
OUTER DIAMETER: 245MM
INSIDE DIAMETER: 115.2MM
CIRCLE SIZE: 133 MM
QUANTITY OF HOLES: 3
HOLE DIAMETER: 8.6 MM
THICKNESS: 4.7MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA YP 125 RA X-MAX ABS 14,1 CV, 10,4 KW 1CIL. SE467 2ABE BASTIDORES: SE467 henceforth00101-- 2013
YAMAHA YP 125 RA X-MAX ABS 14,1 CV, 10,4 KW 1CIL. SE544 39D2 BASTIDORES: SE544 henceforth00301-- 2011-2012
YAMAHA YP 125 RA X-MAX ABS 14,1 CV, 10,4 KW 1CIL. SE644 2ABC BASTIDORES: SE644 henceforth02001-- 2013
YAMAHA YP 125 RA X-MAX ABS 14,3 CV, 10,55 KW 1CIL. SE684 2DM2 BASTIDORES: SE684 henceforth00097-- 2014
YAMAHA YP 125 RA X-MAX ABS 14,3 CV, 10,55 KW 1CIL. SE684 2DMA BASTIDORES: SE684 henceforth05101-- 2015
YAMAHA YP 125 RA X-MAX ABS 14,3 CV, 10,55 KW 1CIL. SE684 2DMG BASTIDORES: SE684 henceforth10201-- 2016
YAMAHA YP 125 RA X-MAX ABS 14,3 CV, 10,55 KW 1CIL. SE687 2DM6 BASTIDORES: SE687 henceforth00101-- 2015
YAMAHA YP 125 RA X-MAX ABS 14,3 CV, 10,55 KW 1CIL. SEC31 2DMD BASTIDORES: SEC31 henceforth00101-- 2017
YAMAHA YP 125 RA X-MAX BUSINESS ABS 14,1 CV, 10,4 KW 1CIL. SE547 39D8 BASTIDORES: SE547 henceforth00001-- 2011
YAMAHA YP 125 RA X-MAX BUSINESS ABS 14,1 CV, 10,4 KW 1CIL. SE547 39DE BASTIDORES: SE547 henceforth02601-- 2012-2013
YAMAHA YP 250 RA IRON MAX ABS 20,4 CV, 15 KW 1CIL. SG266 2DLB BASTIDORES: SG266 henceforth00101-- 2016
YAMAHA YP 250 RA X-MAX ABS 20,4 CV, 15 KW 1CIL. SG222 37P4 BASTIDORES: SG222 henceforth00005-- 2011
YAMAHA YP 250 RA X-MAX ABS 20,4 CV, 15 KW 1CIL. SG222 37P7 BASTIDORES: SG222 henceforth04806-- 2012
YAMAHA YP 250 RA X-MAX ABS 20,4 CV, 15 KW 1CIL. SG252 1YS7 BASTIDORES: SG252 henceforth02001-- 2013
YAMAHA YP 250 RA X-MAX ABS 20,4 CV, 15 KW 1CIL. SG262 2DL2 BASTIDORES: SG262 henceforth00091-- 2014
YAMAHA YP 250 RA X-MAX ABS 20,4 CV, 15 KW 1CIL. SG262 2DL6 BASTIDORES: SG262 henceforth03101-- 2015
YAMAHA YP 250 RA X-MAX ABS 20,4 CV, 15 KW 1CIL. SG262 2DL9 BASTIDORES: SG262 henceforth11101-- 2016
