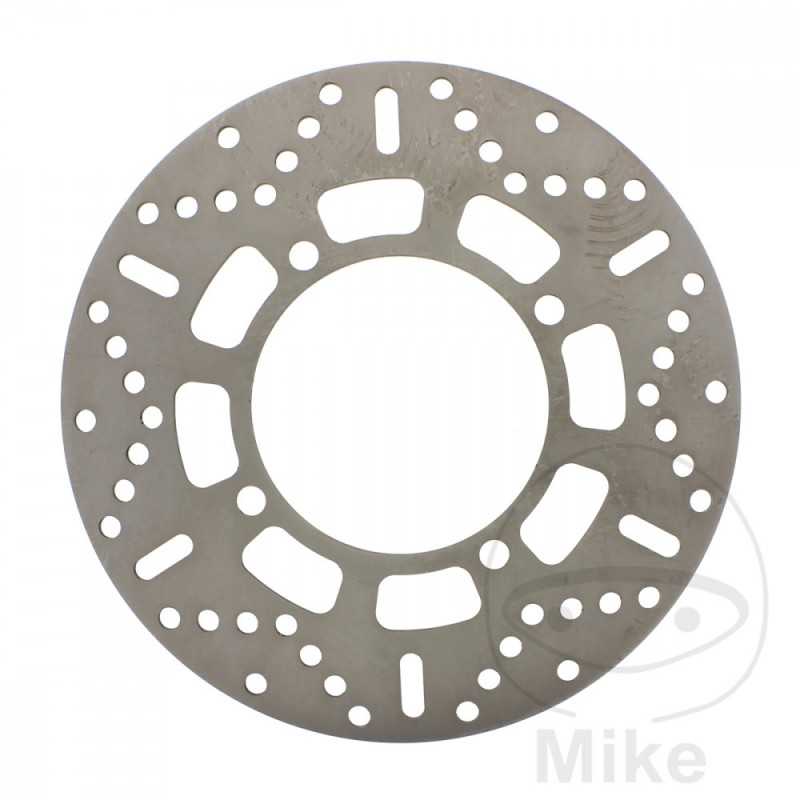

EBC Stainless steel brake disc for motorcycle SCOOTER 760.02.71

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.

The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of low carbon laminated HPSR steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC eco brake pads or EBC Double-H sintered brake pads for sporty drivers.

- Independent design.
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 105.2MM
CIRCLE SIZE: 125 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda SH 125 AD ABS 11,8 CV, 8,7 kw 1cil. JF41D D Bastidores: ZDC JF41D henceforthDF000001-- 2013
Honda SH 125 AD ABS Top Case 11,8 CV, 8,7 kw 1cil. JF41B G Bastidores: ZDC JF41B-GF100001-- 2016
Honda SH 125 AD ABS Top Case 11,8 CV, 8,7 kw 1cil. JF41D E Bastidores: ZDC JF41D-EF050001-- 2014-2015
Honda SH 125 AD ABS Top Case 12,2 CV, 9 kw 1cil. JF68B H Bastidores: ZDC JF68B-HF000001-ZDC JF68B-HF099999 2017-2018
Honda SH 125 AD ABS Top Case 12,2 CV, 9 kw 1cil. JF68B K Bastidores: ZDC JF68B-KF100001-- 2019-2020
Honda SH 125 AD ABS Top Case Smart Key System 13 CV, 9,6 kw 1cil. JF90A L Bastidores: ZDC JF90A-LF000001-ZDC JF90A-LF099999 2020-2021
Honda SH 125 AD ABS Top Case Smart Key System 13 CV, 9,6 kw 1cil. JF90A N Bastidores: ZDC JF90A-NF050001-- 2022
Honda SH 125 i DD 11,8 CV, 8,7 kw 1cil. JF41A G Bastidores: ZDC JF41A-GF100001-- 2016
Honda SH 125 i DD 13,6 CV, 10 kw 1cil. JF23B A Bastidores: ZDC JF23B-AF030001-- 2010
Honda SH 125 i DD 13,6 CV, 10 kw 1cil. JF23B B Bastidores: ZDC JF23B henceforthBF100001-- 2011
Honda SH 125 i DD 13,6 CV, 10 kw 1cil. JF23B C Bastidores: ZDC JF23B henceforthCF150001-- 2012
Honda SH 125 i DD 13,6 CV, 10 kw 1cil. JF41A D Bastidores: ZDC JF41A henceforthDF000001-- 2013
Honda SH 125 i DD Hint Scheibe 13,6 CV, 10 kw 1cil. JF23B 9 Bastidores: ZDC JF23B henceforth9F000001-ZDC JF23B henceforth9F029999 2009
Honda SH 150 A i ABS 15 CV, 11 kw 1cil. KF13B D Bastidores: ZDC KF13B henceforthDF000001-- 2013
Honda SH 150 A i ABS Top Case 15 CV, 11 kw 1cil. KF13B E Bastidores: ZDC KF13B-EF050001-- 2014-2015
Honda SH 150 A i ABS Top Case 15 CV, 11 kw 1cil. KF13B G Bastidores: ZDC KF13B-GF100001-- 2016
Honda SH 150 AD i ABS Top Case 15 CV, 11 kw 1cil. KF23A H Bastidores: ZDC KF23A-HF000001-ZDC KF23A-HF099999 2017-2018
Honda SH 150 AD i ABS Top Case 15 CV, 11 kw 1cil. KF23A K Bastidores: ZDC KF23A-KF100001-- 2019-2020
Honda SH 150 AD i ABS Top Case Smart Key System 16 CV, 11,8 kw 1cil. KF40A N Bastidores: ZDC KF40A-NF050001-- 2022
Honda SH 150 AD i ABS Top Case Smart Key System 16,9 CV, 12,4 kw 1cil. KF40A L Bastidores: ZDC KF40A-LF000001-ZDC KF40A-LF099999 2020-2021
Honda SH 150 i DD 1cil. KF10B 9 Bastidores: ZDC KF10B henceforth9F000001-ZDC KF10B henceforth9F029999 2009
Honda SH 150 i DD 1cil. KF10B A Bastidores: ZDC KF10B-AF0300001-- 2010-2012
