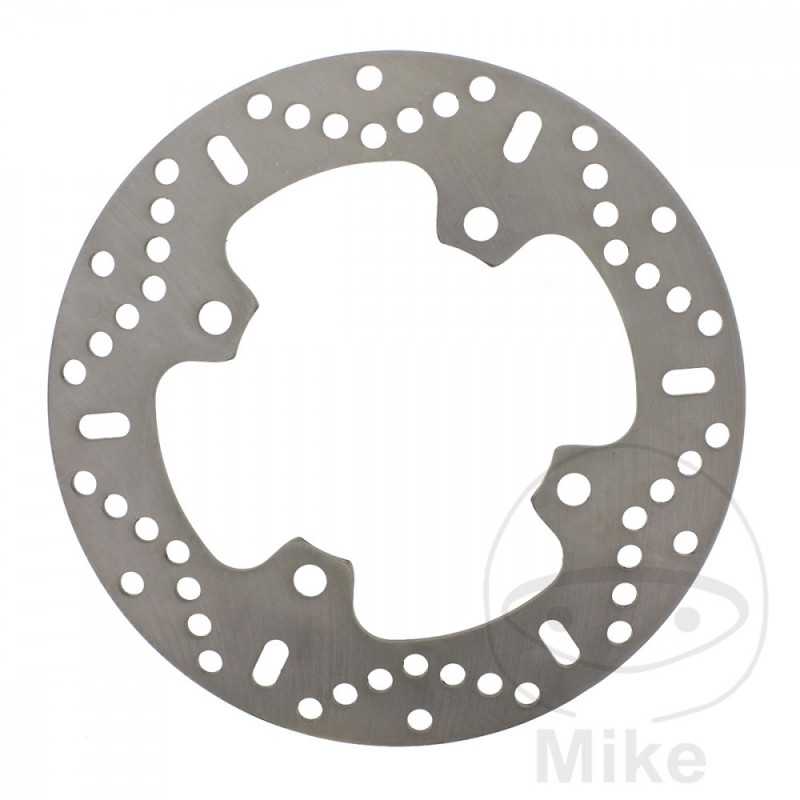

EBC Stainless steel brake disc for motorcycle SCOOTER 760.02.70

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.

The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of low carbon laminated HPSR steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC eco brake pads or EBC Double-H sintered brake pads for sporty drivers.

- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 105.2MM
CIRCLE SIZE: 125 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda FES 125 A S-Wing ABS 13,2 CV, 9,7 kw 1cil. JF12B 7 Bastidores: ZDC JF12B henceforth7F050001-- 2007-2008
Honda FES 125 A S-Wing ABS 13,6 CV, 10 kw 1cil. JF12B 9 Bastidores: ZDC JF12B henceforth9F080001-ZDC JF12B henceforth9F089999 2009
Honda FES 125 A S-Wing ABS 14 CV, 10 kw 1cil. JF12B A Bastidores: ZDC JF12B-AF090001-- 2010
Honda FES 125 A S-Wing ABS 14 CV, 10 kw 1cil. JF12B B Bastidores: --- 2011
Honda FES 125 A S-Wing ABS 14 CV, 10 kw 1cil. JF12B C Bastidores: ZDC JF12B-CF110001-- 2012-2013
Honda FES 125 Pantheon CBS 13,6 CV, 10 kw 1cil. JF12A 3 Bastidores: ZDC JF12A henceforth3F000001-ZDC JF12A henceforth3F099999 2003
Honda FES 125 Pantheon CBS 13,6 CV, 10 kw 1cil. JF12A 4 Bastidores: ZDC JF12A henceforth4F020001-ZDC JF12A henceforth4F099999 2004
Honda FES 125 Pantheon CBS 13,6 CV, 10 kw 1cil. JF12A 5 Bastidores: ZDC JF12A henceforth5F030001-ZDC JF12A henceforth5F099999 2005-2007
Honda FES 125 S-Wing 13,2 CV, 9,7 kw 1cil. JF12A 7 Bastidores: ZDC JF12A henceforth7F050001-- 2007-2008
Honda FES 125 S-Wing 13,6 CV, 10 kw 1cil. JF12A 9 Bastidores: ZDC JF12A henceforth9F080001-ZDC JF12A henceforth9F089999 2009
Honda FES 125 S-Wing 13,6 CV, 10 kw 1cil. JF12A A Bastidores: ZDC JF12A-AF090001-- 2010
Honda FES 150 A S-Wing ABS 14,5 CV, 10,7 kw 1cil. KF06B 7 Bastidores: ZDC KF06B henceforth7F050001-- 2007-2008
Honda FES 150 A S-Wing ABS 14,5 CV, 10,7 kw 1cil. KF06B 9 Bastidores: ZDC KF06B henceforth9F080001-ZDC KF06B 09F089999 2009
Honda FES 150 Pantheon 1cil. KF06A 3 Bastidores: ZDC KF06A henceforth3F000001-ZDC KF06A henceforth3F099999 2003
Honda FES 150 Pantheon 1cil. KF06A 4 Bastidores: ZDC KF06A henceforth4F020001-ZDC KF06A henceforth4F099999 2004
Honda FES 150 Pantheon 1cil. KF06A 5 Bastidores: ZDC KF06A henceforth5F030001-ZDC KF06A henceforth5F099999 2005
Honda FES 150 S-Wing 14,5 CV, 10,7 kw 1cil. KF06A 7 Bastidores: ZDC KF06A henceforth7F050001-- 2007-2008
Honda FES 150 S-Wing 14,5 CV, 10,7 kw 1cil. KF06A 9 Bastidores: ZDC KF06A henceforth9F080001-ZDC KF06A henceforth9F089999 2009
