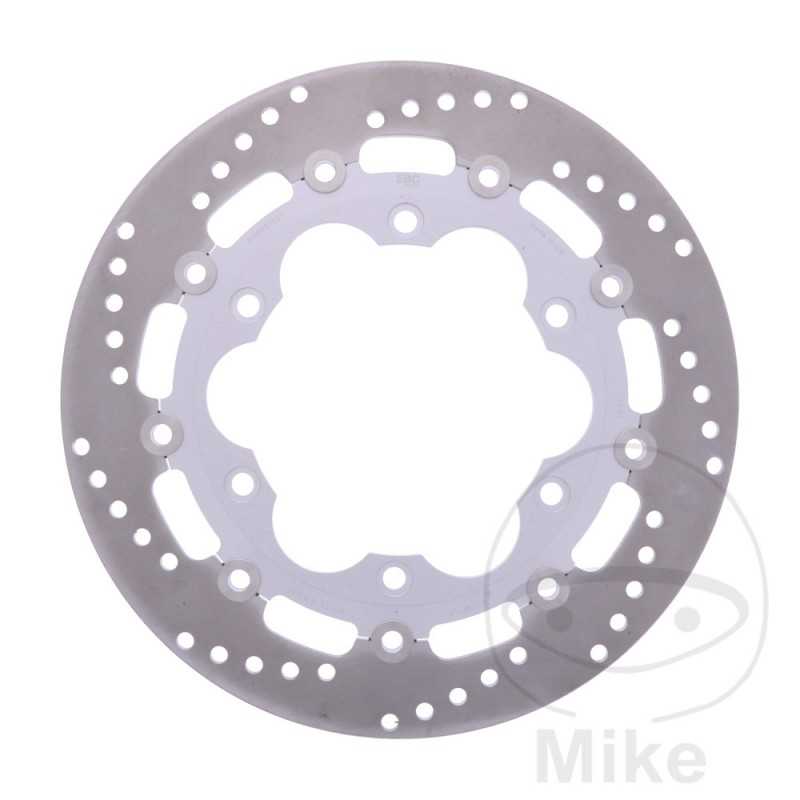

EBC Left brake disc 760.02.65

EBC Prolite floating brake disc, full float. MADE IN THE UK.

The aim of development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the contact zone of the brake pads already during braking. Only in this area can slight oxidation form after a long period of use.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even with the highest load.

- There is no vitrification of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect it from corrosion.

- Anodized aluminum cube.

- The smallest manufacturing tolerances.

- Independent design.
OUTSIDE DIAMETER: 316MM
INSIDE DIAMETER: 144.3MM
CIRCLE SIZE: 166 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda NTV 600 Revere 55,7 CV, 41 kw 2cil. PC22 J Bastidores: PC22-2000002-PC22-2000519 1988
Honda NTV 600 Revere 55,7 CV, 41 kw 2cil. PC22 K Bastidores: PC22-2100001-PC22-2101405 1989-1990
Honda NTV 600 Revere 55,7 CV, 41 kw 2cil. PC22 M Bastidores: PC22-2300002-PC22-2300271 1991
Honda NTV 650 Revere 27 CV, 20 kw 2cil. RC33 J Bastidores: RC33-4000001-RC33-4000402 1988
Honda NTV 650 Revere 27 CV, 20 kw 2cil. RC33 K Bastidores: RC33-4100001-RC33-4100500 1989-1990
Honda NTV 650 Revere 27 CV, 20 kw 2cil. RC33 M Bastidores: RC33-4300001-RC33-4301265 1991-1992
Honda NTV 650 Revere 27 CV, 20 kw 2cil. RC33 P Bastidores: RC33-4400001-- 1993-1994
Honda NTV 650 Revere 34 CV, 25 kw 2cil. RC33 P Bastidores: RC33-6000001-- 1993-1994
Honda NTV 650 Revere 34 CV, 25 kw 2cil. RC33 S Bastidores: RC33-6100004-- 1995
Honda NTV 650 Revere 34 CV, 25 kw 2cil. RC33C T Bastidores: RC33C-TM000001-- 1996
Honda NTV 650 Revere 34 CV, 25 kw 2cil. RC33C V Bastidores: RC33C-VM100001-- 1997
Honda NTV 650 Revere 50 CV, 37 kw 2cil. RC33 J Bastidores: RC33-3000001-RC33-3001603 1988
Honda NTV 650 Revere 50 CV, 37 kw 2cil. RC33 K Bastidores: RC33-3100001-RC33-3101271 1989-1990
Honda NTV 650 Revere 50 CV, 37 kw 2cil. RC33 M Bastidores: RC33-3300002-RC33-3302277 1991-1992
Honda NTV 650 Revere 50 CV, 37 kw 2cil. RC33 P Bastidores: RC33-3400001-- 1993-1994
Honda NTV 650 Revere 50 CV, 37 kw 2cil. RC33 S Bastidores: RC33-3500004-- 1995
Honda NTV 650 Revere 50 CV, 37 kw 2cil. RC33B T Bastidores: RC33B-TM000001-- 1996
Honda NTV 650 Revere 50 CV, 37 kw 2cil. RC33B V Bastidores: RC33B-VM100001-- 1997
Honda NTV 650 Revere 53 CV, 39 kw 2cil. RC33 S Bastidores: RC33-2500003-- 1995
Honda NTV 650 Revere 53 CV, 39 kw 2cil. RC33A T Bastidores: RC33A-TM260001-- 1996
Honda NTV 650 Revere 53 CV, 39 kw 2cil. RC33A V Bastidores: RC33A-VM100001-- 1997
Honda NTV 650 Revere 57 CV, 42 kw 2cil. RC33 M Bastidores: RC33-2300005-RC33-2302187 1991-1992
Honda NTV 650 Revere 57 CV, 42 kw 2cil. RC33 P Bastidores: RC33-2400022-- 1993-1994
Honda NTV 650 Revere 60 CV, 44 kw 2cil. RC33 J Bastidores: RC33-2000016-RC33-2000355 1988
Honda NTV 650 Revere 60 CV, 44 kw 2cil. RC33 K Bastidores: RC33-2100007-RC33-2100916 1989-1990
Honda VF 750 C Magna 34 CV, 25 kw 4cil. RC43 R Bastidores: RC43-4000001-RC43-4000150 1994
Honda VF 750 C Magna 34 CV, 25 kw 4cil. RC43 S Bastidores: RC43-4100001-- 1995
Honda VF 750 C Magna 34 CV, 25 kw 4cil. RC43B T Bastidores: RC43B-TM000001-- 1996
Honda VF 750 C Magna 34 CV, 25 kw 4cil. RC43B V Bastidores: RC43B-VM400001-- 1997-1998
Honda VF 750 C Magna 34 CV, 25 kw 4cil. RC43B X Bastidores: RC43B-XM500001-- 1999-2000
Honda VF 750 C Magna 50 CV, 37 kw 4cil. RC43 R Bastidores: RC43-3100001-RC43-3100075 1994
Honda VF 750 C Magna 50 CV, 37 kw 4cil. RC43 S Bastidores: RC43-3200001-- 1995
Honda VF 750 C Magna 50 CV, 37 kw 4cil. RC43C T Bastidores: RC43C-TM000001-- 1996
Honda VF 750 C Magna 50 CV, 37 kw 4cil. RC43C V Bastidores: RC43C-VM400001-- 1997-1998
Honda VF 750 C Magna 50 CV, 37 kw 4cil. RC43C X Bastidores: RC43C-XM500001-- 1999-2000
Honda VF 750 C Magna 87 CV, 64 kw 4cil. RC43A T Bastidores: RC43A-TM000001-- 1996
Honda VF 750 C Magna 87 CV, 64 kw 4cil. RC43A V Bastidores: RC43A-VM400001-- 1997-1998
Honda VF 750 C Magna 87 CV, 64 kw 4cil. RC43A X Bastidores: RC43A-XM500001-- 1999-2000
Honda VF 750 C Magna 88 CV, 65 kw 4cil. RC43 P Bastidores: RC43-2000009-RC43-2001413 1993
Honda VF 750 C Magna 88 CV, 65 kw 4cil. RC43 R Bastidores: RC43-2100232-RC43-2103196 1994
Honda VF 750 C Magna 88 CV, 65 kw 4cil. RC43 S Bastidores: RC43-2200010-- 1995
Honda VT 250 C Magna 27 CV, 19 kw 2cil. MC29 R Bastidores: MC29-1000001-MC29-1029392 1994-1995
Honda VT 250 C Magna 27 CV, 19 kw 2cil. MC29 T Bastidores: MC29-1100001-MC29-1199999 1996
Honda VT 250 C Magna 27 CV, 19 kw 2cil. MC29 V Bastidores: MC29-1200001-MC29-1499999 1997
