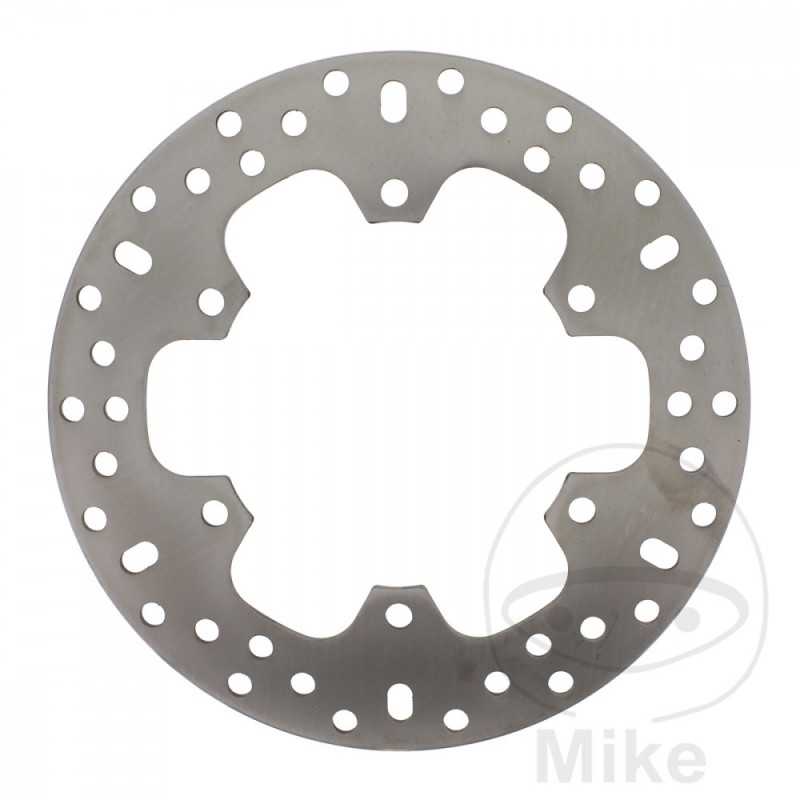

EBC Brake disc stainless steel 760.02.63

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.

The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of low carbon laminated HPSR steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC eco brake pads or EBC Double-H sintered brake pads for sporty drivers.

- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 115.2MM
CIRCLE SIZE: 133 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA YZF-R1 1000 152 CV, 112 KW 4CIL. RN091 5PW1 BASTIDORES: RN091 henceforth00301-- 2002
YAMAHA YZF-R1 1000 152 CV, 112 KW 4CIL. RN095 5PW7 BASTIDORES: RN095 henceforth00301-- 2003
YAMAHA YZF-R6 600 H 120 CV, 88 KW 4CIL. RJ031 5EB1 BASTIDORES: RJ031 henceforth00301-- 1999
YAMAHA YZF-R6 600 H 120 CV, 88 KW 4CIL. RJ031 5EB5 BASTIDORES: RJ031 henceforth16277-- 2000
YAMAHA YZF-R6 600 H 120 CV, 88 KW 4CIL. RJ036 5MT1 BASTIDORES: RJ036 henceforth00301-- 2001
YAMAHA YZF-R6 600 H 120 CV, 88 KW 4CIL. RJ036 5MTB BASTIDORES: RJ036 henceforth14656-- 2002
YAMAHA YZF-R6 600 N 98 CV, 72 KW 4CIL. RJ032 5EB2 BASTIDORES: RJ032 henceforth00301-- 1999
YAMAHA YZF-R6 600 N 98 CV, 72 KW 4CIL. RJ032 5EB6 BASTIDORES: RJ032 henceforth01557-- 2000
YAMAHA YZF-R6 600 N 98 CV, 72 KW 4CIL. RJ037 5MT2 BASTIDORES: RJ037 henceforth00301-- 2001
YAMAHA YZF-R6 600 N 98 CV, 72 KW 4CIL. RJ037 5MTC BASTIDORES: RJ037 henceforth00714-- 2002
