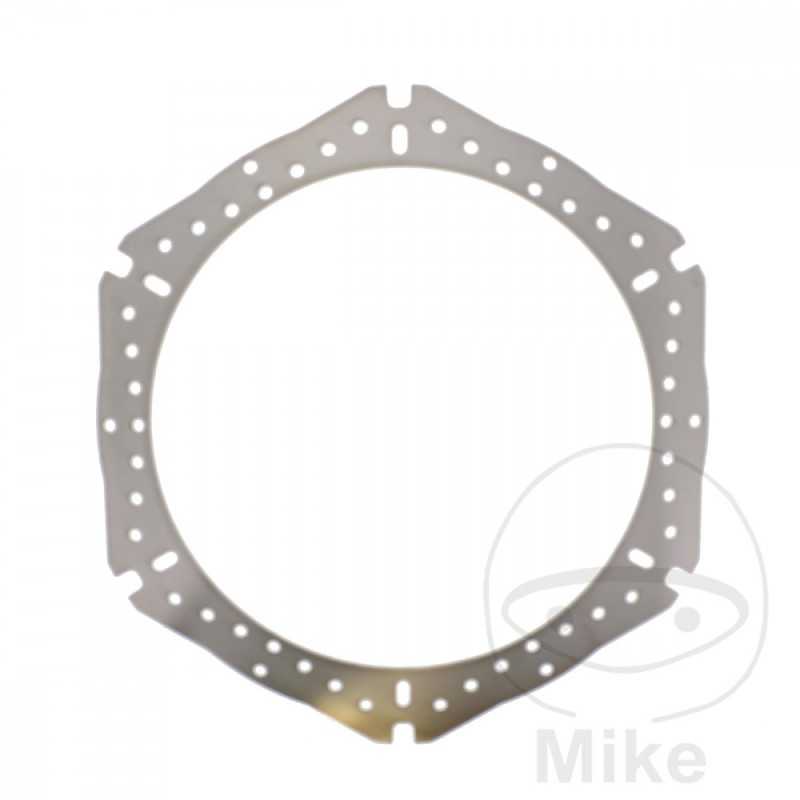

EBC right brake disc 760.02.51

EBC HPSR brake disc, rigid version. MADE IN THE UK.

The aim of development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the contact zone of the brake pads already during braking. Only in this area can slight oxidation form after a long period of use.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even with the highest load.

- There is no vitrification of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect it from corrosion.

- The smallest manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for the best braking performance.

- Independent design.
OUTSIDE DIAMETER: 406.6MM
INSIDE DIAMETER: 307MM
CIRCLE SIZE: 405 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 13 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BUELL CR 1125 IE 148 CV, 109 KW 2CIL. XB3 BASTIDORES: --- 2009-2010
BUELL R 1125 IE 148 CV, 109 KW 2CIL. XB3 BASTIDORES: --- 2008-2010
BUELL XB12R 1200 IE FIREBOLT 101 CV, 75 KW 2CIL. XB1 BASTIDORES: --- 2004-2007
BUELL XB12R 1200 IE FIREBOLT 34 CV, 25 KW 2CIL. XB1 BASTIDORES: --- 2004-2005
BUELL XB12S 1200 IE LIGHTNING 101 CV, 75 KW 2CIL. XB1 BASTIDORES: --- 2004-2007
BUELL XB12S 1200 IE LIGHTNING 31,3 CV, 23 KW 2CIL. XB1 BASTIDORES: --- 2008
BUELL XB12S 1200 IE LIGHTNING 34 CV, 25 KW 2CIL. XB1 BASTIDORES: --- 2004-2005
BUELL XB12S 1200 IE LIGHTNING 95 CV, 70 KW 2CIL. XB1 BASTIDORES: --- 2008
BUELL XB12SCG 1200 IE LIGHTNING FLACH 31,3 CV, 23 KW 2CIL. XB1 BASTIDORES: --- 2008-2009
BUELL XB12SCG 1200 IE LIGHTNING PLANO 101 CV, 75 KW 2CIL. XB1 BASTIDORES: --- 2007
BUELL XB12SCG 1200 IE LIGHTNING PLANO 94 CV, 69 KW 2CIL. XB1 BASTIDORES: --- 2010
BUELL XB12SCG 1200 IE LIGHTNING PLANO 95 CV, 70 KW 2CIL. XB1 BASTIDORES: --- 2008-2009
BUELL XB12SS 1200 IE LIGHTNING LONG 101 CV, 75 KW 2CIL. XB2 BASTIDORES: --- 2006-2007
BUELL XB12SS 1200 IE LIGHTNING LONG 31,3 CV, 23 KW 2CIL. XB2 BASTIDORES: --- 2008-2009
BUELL XB12SS 1200 IE LIGHTNING LONG 34 CV, 25 KW 2CIL. XB2 BASTIDORES: --- 2006
BUELL XB12SS 1200 IE LIGHTNING LONG 94 CV, 69 KW 2CIL. XB2 BASTIDORES: --- 2010
BUELL XB12SS 1200 IE LIGHTNING LONG 95 CV, 70 KW 2CIL. XB2 BASTIDORES: --- 2008-2009
BUELL XB12STT 1200 IE LIGHTNING SUPER TT 101 CV, 75 KW 2CIL. XB2 BASTIDORES: --- 2007
BUELL XB12STT 1200 IE LIGHTNING SUPER TT 31,3 CV, 23 KW 2CIL. XB2 BASTIDORES: --- 2008
BUELL XB12STT 1200 IE LIGHTNING SUPER TT 95 CV, 70 KW 2CIL. XB2 BASTIDORES: --- 2008
BUELL XB12X 1200 IE ULYSSES 101 CV, 75 KW 2CIL. XB2 BASTIDORES: --- 2006-2007
BUELL XB12X 1200 IE ULYSSES 31,3 CV, 23 KW 2CIL. XB2 BASTIDORES: --- 2008-2009
BUELL XB12X 1200 IE ULYSSES 34 CV, 25 KW 2CIL. XB2 BASTIDORES: --- 2006
BUELL XB12X 1200 IE ULYSSES 94 CV, 69 KW 2CIL. XB2 BASTIDORES: --- 2010
BUELL XB12X 1200 IE ULYSSES 95 CV, 70 KW 2CIL. XB2 BASTIDORES: --- 2008-2009
BUELL XB12XT 1200 IE ULYSSES 94 CV, 69 KW 2CIL. XB2 BASTIDORES: --- 2010
BUELL XB12XT 1200 IE ULYSSES 95 CV, 70 KW 2CIL. XB2 BASTIDORES: --- 2009
BUELL XB9R 1000 IE FIREBOLT 33 CV, 24 KW 2CIL. XB1 BASTIDORES: --- 2003-2004
BUELL XB9R 1000 IE FIREBOLT 84 CV, 62 KW 2CIL. XB1 BASTIDORES: --- 2003-2004
BUELL XB9R 1000 IE FIREBOLT 92 CV, 68 KW 2CIL. XB1 BASTIDORES: --- 2002
BUELL XB9S 1000 IE LIGHTNING 33 CV, 24 KW 2CIL. XB1 BASTIDORES: --- 2003-2004
BUELL XB9S 1000 IE LIGHTNING 84 CV, 62 KW 2CIL. XB1 BASTIDORES: --- 2003-2004
BUELL XB9SX 1000 IE LIGHTNING CITYX 30 CV, 22 KW 2CIL. XB1 BASTIDORES: --- 2010
BUELL XB9SX 1000 IE LIGHTNING CITYX 33 CV, 24 KW 2CIL. XB1 BASTIDORES: --- 2005-2006
BUELL XB9SX 1000 IE LIGHTNING CITYX 33 CV, 24 KW 2CIL. XB1 BASTIDORES: --- 2008-2009
BUELL XB9SX 1000 IE LIGHTNING CITYX 82 CV, 60 KW 2CIL. XB1 BASTIDORES: --- 2008-2009
BUELL XB9SX 1000 IE LIGHTNING CITYX 84 CV, 62 KW 2CIL. XB1 BASTIDORES: --- 2005-2007
BUELL XB9SX 1000 IE LIGHTNING CITYX 86 CV, 63 KW 2CIL. XB1 BASTIDORES: --- 2010
