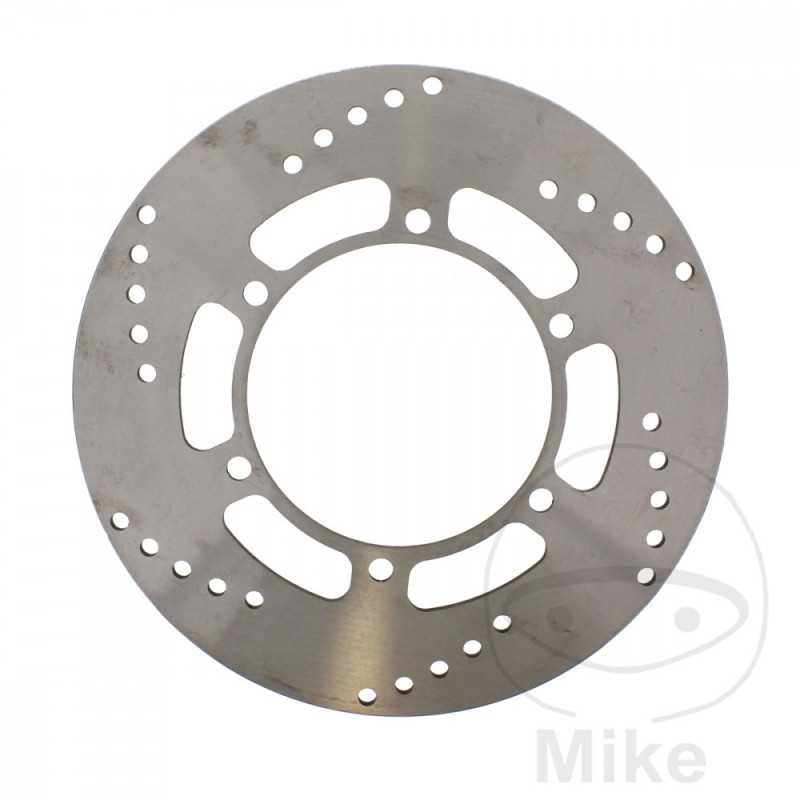

EBC Brake disc stainless steel 760.02.46

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which erodes in the area of the contact patch of the brake pads during braking. Only in this area can the form more easily oxidize during the long life.

The brake discs are perforated in Vogelschwingendesign to fit with as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes installed, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered brake pads.

- Independent design.
OUTER DIAMETER: 280MM
INSIDE DIAMETER: 130.2MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
THICKNESS: 7MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KAWASAKI GTR 1000 A 100 CV, 74 KW 4CIL. ZGT00A 1 BASTIDORES: ZGT00A henceforth00001-ZGT00A henceforth05500 1986
KAWASAKI GTR 1000 A 100 CV, 74 KW 4CIL. ZGT00A 2 BASTIDORES: ZGT00A henceforth55001-ZGT00A henceforth08000 1987-1988
KAWASAKI GTR 1000 A 100 CV, 74 KW 4CIL. ZGT00A 4 BASTIDORES: ZGT00A henceforth08001-ZGT00A henceforth09000 1989
KAWASAKI GTR 1000 A 92 CV, 68 KW 4CIL. ZGT00A 5 BASTIDORES: ZGT00A henceforth09001-ZGT00A henceforth11400 1990
KAWASAKI GTR 1000 A 92 CV, 68 KW 4CIL. ZGT00A 6 BASTIDORES: ZGT00A henceforth11401-ZGT00A henceforth14000 1991
KAWASAKI GTR 1000 A 92 CV, 68 KW 4CIL. ZGT00A 7 BASTIDORES: ZGT00A henceforth14001-ZGT00A-350000 1992-1993
KAWASAKI GTR 1000 A 92 CV, 68 KW 4CIL. ZGT00A 9 BASTIDORES: ZGT00A henceforth35001-ZGT00A henceforth42000 1994-1995
KAWASAKI GTR 1000 A 98 CV, 72 KW 4CIL. ZGT00A 11 BASTIDORES: ZGT00A henceforth42001-ZGT00A henceforth46000 1996
KAWASAKI GTR 1000 A 98 CV, 72 KW 4CIL. ZGT00A 12 BASTIDORES: ZGT00A henceforth46001-ZGT00A henceforth48000 1997
KAWASAKI GTR 1000 A 98 CV, 72 KW 4CIL. ZGT00A 13 BASTIDORES: ZGT00A henceforth48001-ZGT00A henceforth52000 1998
KAWASAKI GTR 1000 A 98 CV, 72 KW 4CIL. ZGT00AAA 14 BASTIDORES: ZGT00AAA henceforth52001-ZGT00AAA henceforth57000 1999
KAWASAKI GTR 1000 A 98 CV, 72 KW 4CIL. ZGT00AAA 15 BASTIDORES: ZGT00AAA henceforth57001-ZGT00AAA henceforth63000 2000-2001
KAWASAKI GTR 1000 A 98 CV, 72 KW 4CIL. ZGT00AAA 17 BASTIDORES: ZGT00AAA henceforth63001-ZGT00AAA-999999 2002
KAWASAKI GTR 1000 A 98 CV, 72 KW 4CIL. ZGT00AAA 18 BASTIDORES: ZGT00AAA henceforth68001-ZGT00AAA-999999 2003
