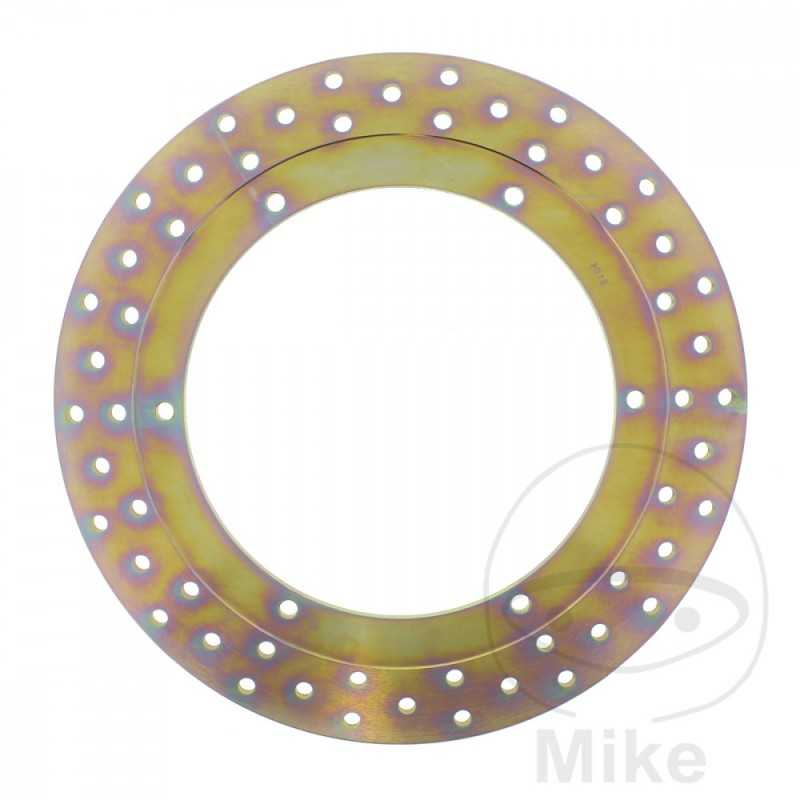

EBC Brake disc stainless steel 760.02.35

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which erodes in the area of the contact patch of the brake pads during braking. Only in this area can the form more easily oxidize during the long life.

The brake discs are perforated in Vogelschwingendesign to fit with as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes installed, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered brake pads.

- Independent design.
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 198.2MM
CIRCLE SIZE: 216 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
THICKNESS: 7MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA XVZ 1300 A ROYAL STAR 74 CV, 54,5 KW 4CIL. 4YP 4YP1 BASTIDORES: 4YP henceforth00702-- 1997
YAMAHA XVZ 1300 A ROYAL STAR 74 CV, 54,5 KW 4CIL. 4YP 4YP2 BASTIDORES: 4YP henceforth06137-- 1998
YAMAHA XVZ 1300 A ROYAL STAR 74 CV, 54,5 KW 4CIL. 4YP 4YP3 BASTIDORES: 4YP henceforth08287-- 1999
YAMAHA XVZ 1300 A ROYAL STAR 74 CV, 54,5 KW 4CIL. 4YP 4YP4 BASTIDORES: 4YP henceforth08613-- 2000
YAMAHA XVZ 1300 AH ROYAL STAR TOUR CLASSIC 74 CV, 55 KW 4CIL. 4NK 4NK1 BASTIDORES: 4NK henceforth00101-- 1996-1999
YAMAHA XVZ 1300 AH ROYAL STAR TOUR CLASSIC 74 CV, 55 KW 4CIL. 4NK 4NK3 BASTIDORES: 4NK henceforth12101-- 1996-1999
YAMAHA XVZ 1300 AHC ROYAL STAR TOUR CLASSIC 74 CV, 55 KW 4CIL. 4NK 4NK2 BASTIDORES: 4NK henceforth10101-- 1996-1999
YAMAHA XVZ 1300 ATH ROYAL STAR TOUR CLASSIC 74 CV, 55 KW 4CIL. 4NL 4NL1 BASTIDORES: 4NL henceforth00101-- 1996-1999
YAMAHA XVZ 1300 ATH ROYAL STAR TOUR CLASSIC 74 CV, 55 KW 4CIL. 4NL 4NL3 BASTIDORES: 4NL henceforth07101-- 1996-1999
YAMAHA XVZ 1300 ATHC ROYAL STAR TOUR CLASSIC 74 CV, 55 KW 4CIL. 4NL 4NL2 BASTIDORES: 4NL henceforth06101-- 1996-1999
YAMAHA XVZ 1300 TF ROYAL STAR VENTURE 95 CV, 70 KW 4CIL. VP091 5JC1 BASTIDORES: VP091 henceforth00301-- 1999
YAMAHA XVZ 1300 TF ROYAL STAR VENTURE 95 CV, 70 KW 4CIL. VP091 5JC2 BASTIDORES: VP091 henceforth01465-- 2000
YAMAHA XVZ 1300 TF ROYAL STAR VENTURE 95 CV, 70 KW 4CIL. VP091 5JC3 BASTIDORES: VP091 henceforth01622-- 2001
