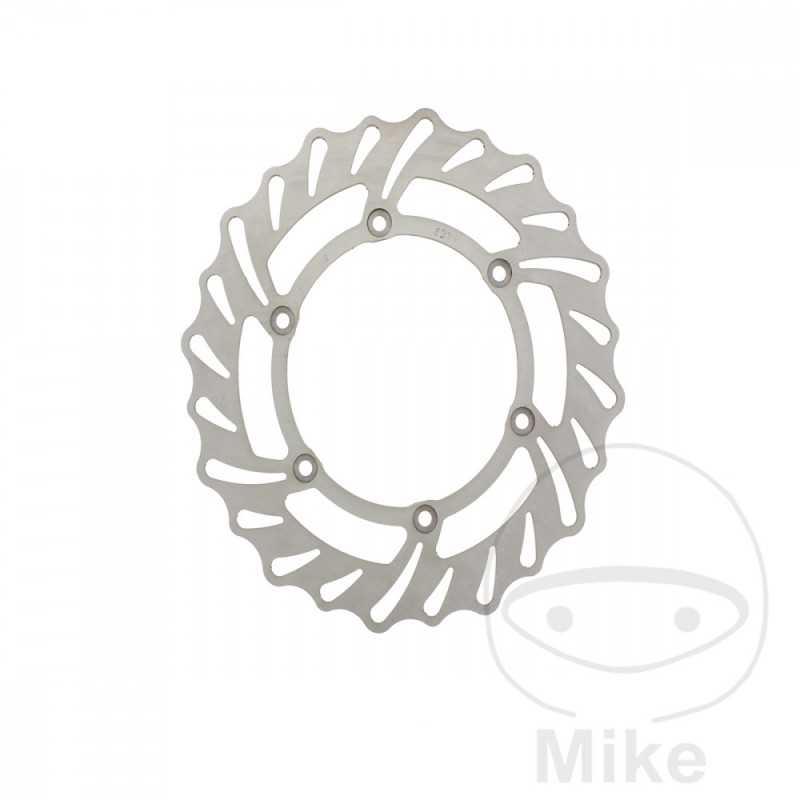

EBC brake disc for motorcycle CONTOUR 760.01.71

EBC Contour Brake Disc

The aim of development is to improve braking performance compared to the original brake disc. EBC uses heat-treated carbon steel for the MX Contour brake rotors. This steel is much more resistant to rust than cast steel.

In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears off in the contact area of the brake pads already during braking.

Only in this area a slight rust with a longer service life can form.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Cutting-edge Contour design

- Super-light, rigid brake disc, completely new profile.

- Made of carbon steel with heat treatment.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Zinc plated to protect it from corrosion.

- Independent design.

- The thickness of the brake disc may vary from the original part.

MADE IN THE UK
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 110.2MM
CIRCLE SIZE: 125 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.3 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM Adventure 640 E LC4 54/34 CV, 40 /25kw 1cil. - Bastidores: --- 2003-2007
KTM Adventure 640 LC4 49 CV, 36 kw 1cil. - Bastidores: --- 2001-2002
KTM Adventure 640 R 49 CV, 36 kw 1cil. - Bastidores: --- 1999-2000
KTM Duke 400 27/44 CV, 20/32 kw 1cil. - Bastidores: --- 1994-1995
KTM Duke 620 31/50 CV, 23/37 kw 1cil. - Bastidores: --- 1994-1995
KTM Duke 620 E 31/50 CV, 23/37 kw 1cil. - Bastidores: --- 1996
KTM Duke 620 E 32/50 CV, 23/37 kw 1cil. - Bastidores: --- 1997-1998
KTM Duke 620 E Last Edition 34/54 CV, 25/40 kw 1cil. - Bastidores: --- 1998-1999
KTM Duke 640 E II 34 CV, 25 kw 1cil. - Bastidores: --- 1999-2007
KTM Duke 640 E II 54 CV, 40 kw 1cil. - Bastidores: --- 1999-2007
KTM EGS 400 LC4 30/41 CV, 22/30 kw 1cil. - Bastidores: --- 1996-1997
KTM E-GS 600 LC4 27/45 CV, 20/33 kw 1cil. - Bastidores: --- 1993
KTM EGS 620 LC4 31 CV, 23 kw 1cil. - Bastidores: --- 1994-1996
KTM EGS 620 LC4 32/50 CV, 23/37 kw 1cil. - Bastidores: --- 1997-1998
KTM EGS 620 LC4 50 CV, 37 kw 1cil. - Bastidores: --- 1994-1996
KTM EGS 620 LC4 LSE 32/50 CV, 23/37 kw 1cil. - Bastidores: --- 1997-1998
KTM EGS 620 LC4-E 32/50 CV, 23/37 kw 1cil. - Bastidores: --- 1997-1998
KTM EGS-E 400 LC4 30/41 CV, 22/30 kw 1cil. - Bastidores: --- 1997
KTM EXC 600 LC4 Competition 27 CV, 20 kw 1cil. - Bastidores: --- 1993
KTM EXC 600 LC4 Competition Sixdays 1cil. - Bastidores: --- 1993
KTM EXC 612 LC4 Competition 1cil. - Bastidores: --- 1993
KTM EXC 612 LC4 Competition Sixdays 1cil. - Bastidores: --- 1993
KTM EXC 620 LC4 Competition 27/59 CV, 20/43 kw 1cil. - Bastidores: --- 1994-1995
KTM EXC 620 LC4 Competition 31/50 CV, 23/37 kw 1cil. - Bastidores: --- 1996
KTM EXC 620 LC4 Competition 32/50 CV, 23/37 kw 1cil. - Bastidores: --- 1998
KTM EXC 620 LC4 Competition 34/50 CV, 25/37 kw 1cil. - Bastidores: --- 1999
KTM EXC 620 LC4 Competition Sixdays Winner 1cil. - Bastidores: --- 1996-1998
KTM EXC 620 LC4 Dakar Competition 1cil. - Bastidores: --- 1995
KTM EXC 620 LC4 Pharaonen Rally 1cil. - Bastidores: --- 1994
KTM EXC 620 LC4 Rally 1cil. - Bastidores: --- 1997
KTM LC4-E 400 39 CV, 29 kw 1cil. - Bastidores: --- 2000-2001
KTM LC4-E 640 49 CV, 36 kw 1cil. - Bastidores: --- 2000-2002
KTM LC4-E 640 54/34 CV, 40/25 kw 1cil. - Bastidores: --- 2003-2005
KTM LC4-E 640 Supermoto 49 CV, 36 kw 1cil. - Bastidores: --- 1999-2002
KTM LC4-E 640 Supermoto 54/34 CV, 40/25 kw 1cil. - Bastidores: --- 2003-2006
KTM SC 400 LC4 Super Competition 27 CV, 20 kw 1cil. - Bastidores: --- 1998-1999
KTM SC 400 LC4 Super Competition 27/43 CV, 20/32 kw 1cil. - Bastidores: --- 1995-1997
KTM SC 400 LC4 Super Competition 43 CV, 32 kw 1cil. - Bastidores: --- 1998-1999
KTM SC 620 LC4 Super Competition 27 CV, 20 kw 1cil. - Bastidores: --- 2001
KTM SC 620 LC4 Super Competition 27/59 CV, 20/43 kw 1cil. - Bastidores: --- 1996-1999
KTM SC 620 LC4 Super Competition 59 CV, 43 kw 1cil. - Bastidores: --- 2000
KTM SC 620 LC4 Supermoto 60 CV, 44 kw 1cil. - Bastidores: --- 2000-2001
KTM SC 625 LC4 Super Competition 31 CV, 23 kw 1cil. - Bastidores: --- 2002
KTM SC 625 LC4 Super Competition Supermoto 31 CV, 23 kw 1cil. - Bastidores: --- 2002
KTM SMC 625 Supermoto 28,5/60 CV, 21/44 kw 1cil. - Bastidores: --- 2005-2006
KTM SMC 625 Supermoto 32/60 CV, 24/44 kw 1cil. - Bastidores: --- 2004
KTM SMC 660 LC4 Supermoto 65/28,5 CV, 48/21 kw 1cil. - Bastidores: --- 2005-2006
KTM SMC 660 LC4 Supermoto 65/32 CV, 48/24 kw 1cil. - Bastidores: --- 2003-2004
KTM SX 620 LC4 59 CV, 43 kw 1cil. - Bastidores: --- 1994
KTM SX 620 LC4 60 CV, 44 kw 1cil. - Bastidores: --- 1995-1999
KTM SXC 400 1cil. - Bastidores: --- 1997-1998
KTM SXC 400 Tiainen 1cil. - Bastidores: --- 1999
KTM SXC 620 LC4 1cil. - Bastidores: --- 1997
KTM SXC 625 LC4 32/60 CV, 24/44 kw 1cil. - Bastidores: --- 2003-2006
