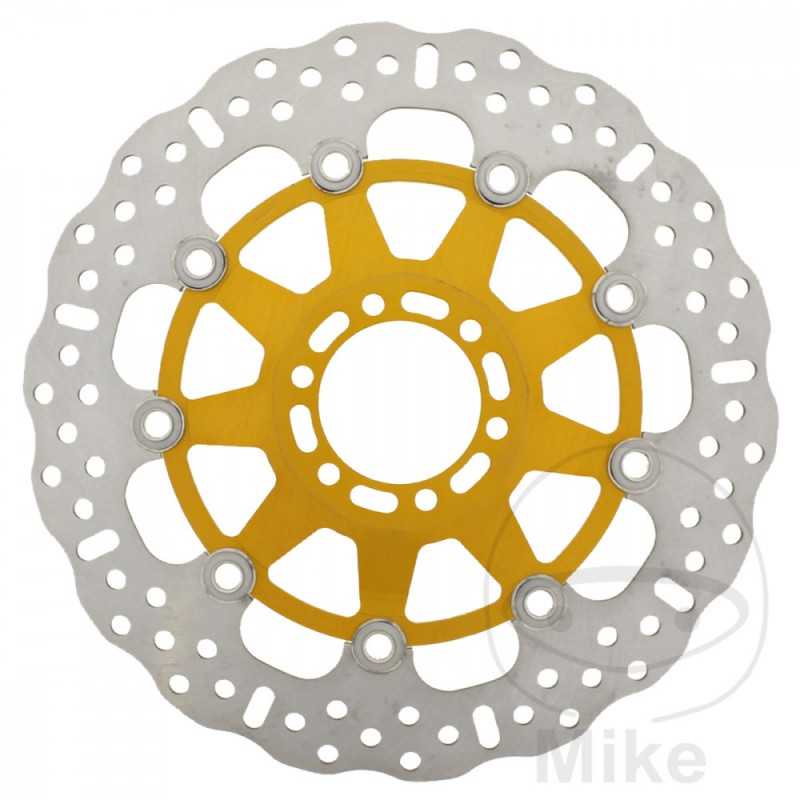

The aim of development is to improve braking performance compared to the original brake disc. EBC uses heat-treated carbon steel for the MX Contour brake rotors. This steel is much more resistant to rust than cast steel.
In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears off in the contact area of the brake pads already during braking.
Only in this area a slight rust with a longer service life can form.
The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.
The floating brake discs are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses under the heat generated during braking allow unlimited expansion of the outer and inner ring without affecting the riveted joint.
- Cutting-edge Contour design
- Stiff, super-light brake disc, completely new profile
- Made of carbon steel with heat treatment.
- Braking surface drilled with an optimized hole pattern.
- Radially ground.
- Zinc plated to protect it from corrosion.
- Independent design.
- The thickness of the brake disc may vary from the original part.
MADE IN THE UK OUTSIDE DIAMETER: 305MM INSIDE DIAMETER: 64.2MM CIRCLE SIZE: 80 MM HOLES QUANTITY: 6 HOLE DIAMETER: 8.5 MM thickness: 5mm VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT: According to the data provided by the manufacturer, this article is compatible with the following brands, models and years: KTM SUPERMOTO 950 LC8 34 CV, 25 KW 2CIL. - BASTIDORES: --- 2006-2008 KTM SUPERMOTO 950 LC8 98 CV, 72 KW 2CIL. - BASTIDORES: --- 2006-2008 KTM SUPERMOTO 950 R LC8 34 CV, 25 KW 2CIL. - BASTIDORES: --- 2007-2008 KTM SUPERMOTO 950 R LC8 98 CV, 72 KW 2CIL. - BASTIDORES: --- 2007-2008 KTM SUPERMOTO 990 LC8 115 CV, 85 KW 2CIL. - BASTIDORES: --- 2009-2010 KTM SUPERMOTO 990 LC8 98 CV, 72 KW 2CIL. - BASTIDORES: --- 2009-2010 KTM SUPERMOTO 990 R LC8 115 CV, 85 KW 2CIL. - BASTIDORES: --- 2009-2011 KTM SUPERMOTO 990 R LC8 98 CV, 72 KW 2CIL. - BASTIDORES: --- 2009-2011 KTM SUPERMOTO 990 R LC8 ABS 115 CV, 85 KW 2CIL. - BASTIDORES: --- 2012-2013 KTM SUPERMOTO 990 R LC8 ABS 98 CV, 72 KW 2CIL. - BASTIDORES: --- 2012-2013 KTM SUPERMOTO 990 T LC8 115 CV, 85 KW 2CIL. - BASTIDORES: --- 2009-2011 KTM SUPERMOTO 990 T LC8 98 CV, 72 KW 2CIL. - BASTIDORES: --- 2009-2011 KTM SUPERMOTO 990 T LC8 ABS 115 CV, 85 KW 2CIL. - BASTIDORES: --- 2011-2013 KTM SUPERMOTO 990 T LC8 ABS 98 CV, 72 KW 2CIL. - BASTIDORES: --- 2011-2013
