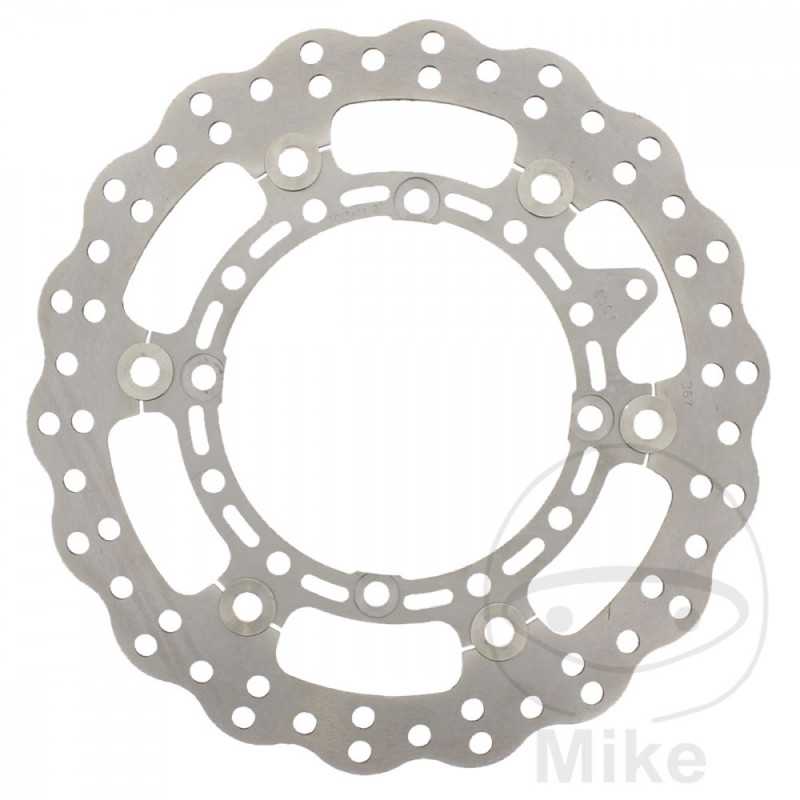

EBC brake disc for motorcycle CONTOUR 760.01.12

EBC Contour Brake Disc

The aim of development is to improve braking performance compared to the original brake disc. EBC uses heat-treated carbon steel for the MX Contour brake rotors. This steel is much more resistant to rust than cast steel.

In addition, the entire surface is protected with a 3 micron thick layer of zinc, which wears off in the contact zone of the brake pads already during braking.

Only in this area can slight oxidation form after a long period of use.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

Floating brake discs are equipped with EBC's exclusive and patented SD system, whose square rivets in the brake disc recesses allow unlimited expansion of the outer and inner ring under the heat generated during braking without affecting the riveted bond.

- Cutting-edge contour design

- Stiff, super-light brake disc, completely new profile

- Made of carbon steel with heat treatment.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Galvanized to protect it from corrosion.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.

MADE IN THE UK
OUTER DIAMETER: 260MM
INSIDE DIAMETER: 120.7MM
CIRCLE SIZE: 135 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 8.5 MM
thickness: 3mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BETA RR 250 4T ENDURO 31/17 CV, 23/12 KW 1CIL. - BASTIDORES: --- 2005-2007
BETA RR 350 4T ENDURO 45/10 CV, 33,4/7,4 KW 1CIL. ZD3E3000 BASTIDORES: ZD3E3000 henceforthB0000001-ZD3E3000 henceforthB0000235 2011
BETA RR 350 4T ENDURO 45/10 CV, 33,4/7,4 KW 1CIL. ZD3E3101 BASTIDORES: ZD3E3101-1B0000001-ZD3E3101-XB0000014 2011
BETA RR 400 ENDURO 11,1 CV, 8,2 KW 1CIL. ZD3E3 BASTIDORES: --- 2011
BETA RR 400 ENDURO 11,1 CV, 8,2 KW 1CIL. ZD3E3010 BASTIDORES: ZD3E3010 henceforth90100001-ZD3E3010 henceforthA0100292 2010
BETA RR 400 ENDURO 11,1 CV, 8,2 KW 1CIL. ZD3E3113 BASTIDORES: ZD3E3113 henceforthA0000019-ZD3E3113-9A0000018 2010
BETA RR 400 ENDURO 40/11,4 CV, 29/8,4 KW 1CIL. ZD3E1110 BASTIDORES: ZD3E1110 henceforth70000001-ZD3E1110 henceforth80000354 2008
BETA RR 400 ENDURO 40/11,4 CV, 29/8,4 KW 1CIL. ZD3E1110 BASTIDORES: ZD3E1110 henceforth80000355-ZD3E1110 henceforth90000645 2009
BETA RR 400 ENDURO 40/17 CV, 29/12 KW 1CIL. ZD3E1010 BASTIDORES: ZD3E1010 henceforth40000001-- 2005
BETA RR 400 ENDURO 40/17 CV, 29/12 KW 1CIL. ZD3E1010 BASTIDORES: ZD3E1010 henceforth50000303-ZD3E1010 henceforth60000562 2006
BETA RR 400 ENDURO 40/17 CV, 29/12 KW 1CIL. ZD3E1010 BASTIDORES: ZD3E1010 henceforth60000563-ZD3E1010 henceforth70000836 2007
BETA RR 400 RACING 40/11,4 CV, 29/8,4 KW 1CIL. ZD3E1110 BASTIDORES: ZD3E1110 henceforth80000380-ZD3E1110 henceforth90000534 2009
BETA RR 450 ENDURO 52/11,4 CV, 38/8,4 KW 1CIL. ZD3E1120 BASTIDORES: ZD3E1120 henceforth70000001-ZD3E1120 henceforth80000527 2008
BETA RR 450 ENDURO 52/11,4 CV, 38/8,4 KW 1CIL. ZD3E1120 BASTIDORES: ZD3E1120 henceforth80000528-ZD3E1120 henceforth90001141 2009
BETA RR 450 ENDURO 52/11,4 CV, 38/8,4 KW 1CIL. ZD3E1120 BASTIDORES: ZD3E1120 henceforth80000602-ZD3E1120 henceforth90001129 2009
BETA RR 450 ENDURO 52/17 CV, 38/12 KW 1CIL. ZD3E1020 BASTIDORES: ZD3E1020 henceforth40000001-- 2005
BETA RR 450 ENDURO 52/17 CV, 38/12 KW 1CIL. ZD3E1020 BASTIDORES: ZD3E1020 henceforth50000611-ZD3E1020 henceforth60001075 2006
BETA RR 450 ENDURO 52/17 CV, 38/12 KW 1CIL. ZD3E1020 BASTIDORES: ZD3E1020 henceforth60001079-ZD3E1020 henceforth70001658 2007
BETA RR 450 ENDURO 53 /12,8 CV, 39,2/9,4 KW 1CIL. ZD3E3 BASTIDORES: --- 2011
BETA RR 450 ENDURO 53 /12,8 CV, 39,2/9,4 KW 1CIL. ZD3E3020 BASTIDORES: ZD3E3020 henceforth90200001-ZD3E3020 henceforthA0200453 2010
BETA RR 450 FACTORY 53 /12,8 CV, 39,2/9,4 KW 1CIL. ZD3E3 BASTIDORES: --- 2011
BETA RR 520 ENDURO 11,8 CV, 8,7 KW 1CIL. ZD3E3030 BASTIDORES: ZD3E3030 henceforth90200001-ZD3E3030 henceforthB0300377 2010
BETA RR 520 ENDURO 11,8 CV, 8,7 KW 1CIL. ZD3E3030 BASTIDORES: ZD3E3030 henceforthA0300244-ZD3E3030 henceforthB0300404 2011
BETA RR 520 ENDURO 11,8 CV, 8,7 KW 1CIL. ZD3E3030 BASTIDORES: ZD3E3131 henceforthB0000034-ZD3E3131-XB0000039 2011
BETA RR 520 FACTORY 11,8 CV, 8,7 KW 1CIL. ZD3E3131 BASTIDORES: ZD3E3030 henceforthA0300244-ZD3E3030 henceforthB0300404 2011
BETA RR 520 FACTORY 11,8 CV, 8,7 KW 1CIL. ZD3E3131 BASTIDORES: ZD3E3131 henceforthB0000034-ZD3E3131-XB0000039 2011
BETA RR 525 ENDURO 61/11,4 CV, 45/8,4 KW 1CIL. ZD3E1130 BASTIDORES: ZD3E1130 henceforth70000001-ZD3E1130 henceforth80000294 2008
BETA RR 525 ENDURO 61/11,4 CV, 45/8,4 KW 1CIL. ZD3E1130 BASTIDORES: ZD3E1130 henceforth80000295-ZD3E1130 henceforth90000848 2009
BETA RR 525 ENDURO 61/17 CV, 45/12 KW 1CIL. ZD3E1030 BASTIDORES: ZD3E1030 henceforth40000001-- 2005
BETA RR 525 ENDURO 61/17 CV, 45/12 KW 1CIL. ZD3E1030 BASTIDORES: ZD3E1030 henceforth50000278-ZD3E1030 henceforth60000526 2006
BETA RR 525 ENDURO 61/17 CV, 45/12 KW 1CIL. ZD3E1030 BASTIDORES: ZD3E1030 henceforth60000527-ZD3E1030 henceforth70000792 2007
