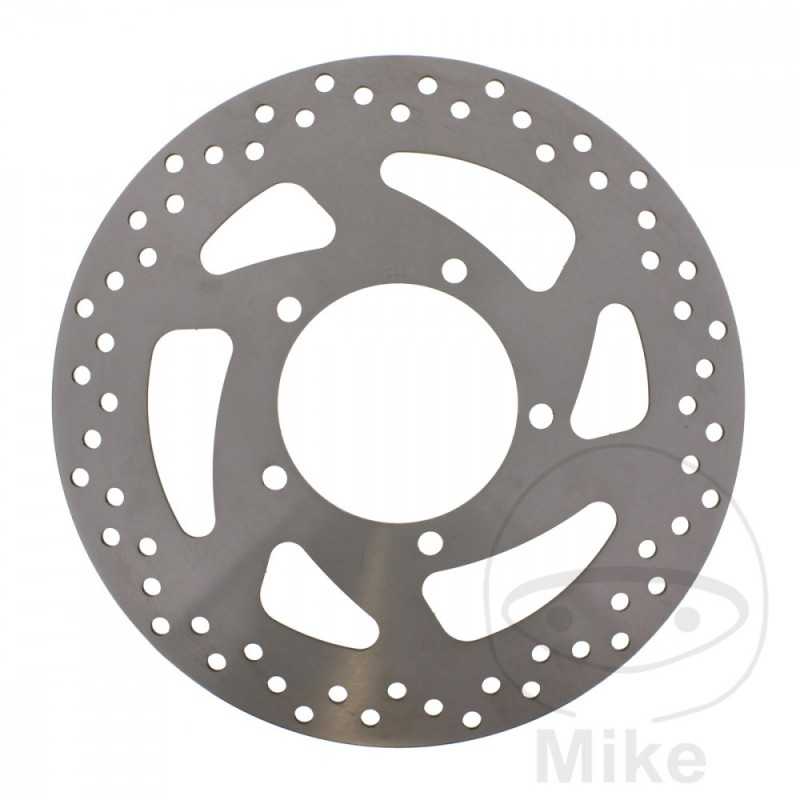

EBC right brake disc 760.01.05

EBC HPSR brake disc, rigid version. MADE IN THE UK.

The objective of its development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel that has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears away in the contact area of the brake pads as soon as the brakes are applied. Only in this area a slight rust with a longer service life can form.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even with the highest load.

- There is no glazing of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect it from corrosion.

- The smallest manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for the best braking performance.

- Independent design.
OUTER DIAMETER: 290MM
INSIDE DIAMETER: 100.2MM
CIRCLE SIZE: 120 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI VL 1500 C1500 INTRUDER 67 CV, 49 KW 2CIL. WVAL2111 K5 BASTIDORES: AL2111 henceforth0105237-AL2111 henceforth0105886 2005
SUZUKI VL 1500 C1500 INTRUDER 67 CV, 49 KW 2CIL. WVAL2111 K6 BASTIDORES: AL2111 henceforth0105887-AL2111 henceforth0106727 2006
SUZUKI VL 1500 C1500 INTRUDER 67 CV, 49 KW 2CIL. WVAL2111 K7 BASTIDORES: AL2111 henceforth0106728-AL2111 henceforth0107443 2007
SUZUKI VL 1500 C1500 INTRUDER 67 CV, 49 KW 2CIL. WVAL2111 K8 BASTIDORES: AL2111 henceforth0107444-AL2111 henceforth0107671 2008
SUZUKI VL 1500 C1500 INTRUDER 67 CV, 49 KW 2CIL. WVAL2111 K9 BASTIDORES: AL2111 henceforth0107672-- 2009
SUZUKI VL 1500 LC INTRUDER 67 CV, 49 KW 2CIL. WVAL2111 K2 BASTIDORES: AL2111 henceforth0101089-AL2111 henceforth0103406 2002
SUZUKI VL 1500 LC INTRUDER 67 CV, 49 KW 2CIL. WVAL2111 K3 BASTIDORES: AL2111 henceforth0103407-AL2111 henceforth0104275 2003
SUZUKI VL 1500 LC INTRUDER 67 CV, 49 KW 2CIL. WVAL2111 K4 BASTIDORES: AL2111 henceforth0104276-AL2111 henceforth0105237 2004
