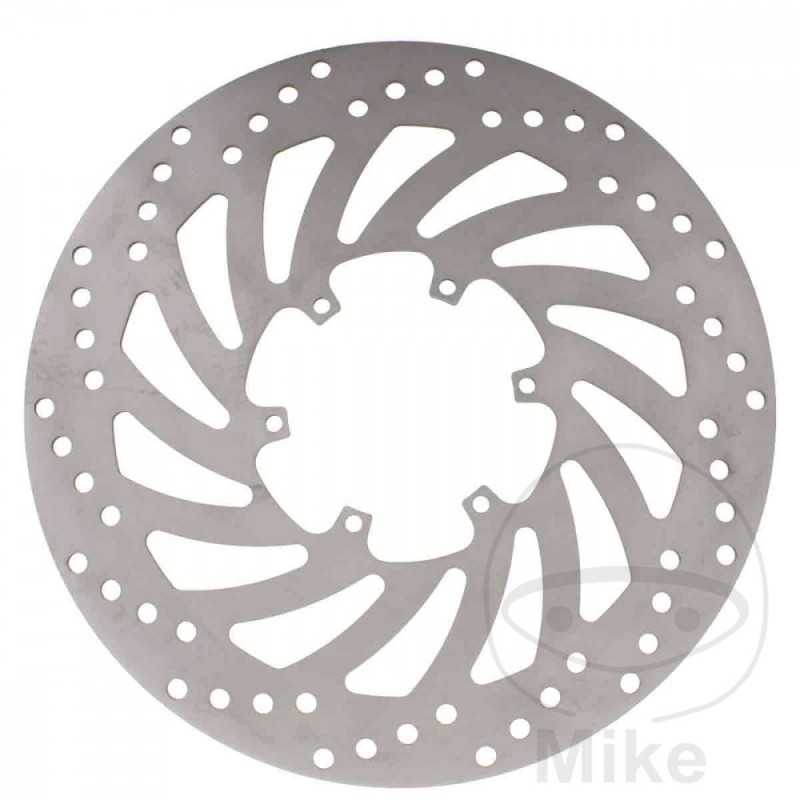

EBC Left brake disc 760.01.03

EBC HPSR brake disc, rigid version. MADE IN THE UK.

The objective of its development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel that has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears away in the contact area of the brake pads as soon as the brakes are applied. Only in this area a slight rust with a longer service life can form.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Brake ring milled from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even with the highest load.

- There is no glazing of the braking surface, so the coefficient of friction remains constant.

- Braking surface drilled with an optimized hole pattern.

- Galvanized to protect it from corrosion.

- The smallest manufacturing tolerances.

- EBC recommends EBC Double-H Sinter brake pads for the best braking performance.

- Independent design.
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 90.6MM
CIRCLE SIZE: 101.75 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.6 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
APRILIA RS 125 4T ABS 15 CV, 11 KW 1CIL. KC000 BASTIDORES: --- 2017-2020
APRILIA RS 125 4T ABS EURO4 15 CV, 11 KW 1CIL. KC000 BASTIDORES: --- 2021
APRILIA RS 125 4T REPLICA ABS 15 CV, 11 KW 1CIL. KC000 BASTIDORES: --- 2017-2020
APRILIA RS 125 4T REPLICA ABS EURO4 15 CV, 11 KW 1CIL. KC000 BASTIDORES: --- 2021
APRILIA RS 50 /REPLICA 5,4 CV, 4 KW 1CIL. PL000 BASTIDORES: --- 2006-2010
APRILIA RS4 125 4T 15 CV, 11 KW 1CIL. TW000 BASTIDORES: --- 2011-2016
APRILIA RS4 125 4T REPLICA 15 CV, 11 KW 1CIL. TW000 BASTIDORES: --- 2011-2016
APRILIA RS4 50 /REPLICA 5,4/2,7 CV, 4/2 KW 1CIL. TK000 BASTIDORES: --- 2011-2013
APRILIA RS4 50 /REPLICA EURO2 5,4/2,7 CV, 4/2 KW 1CIL. TK000/VX000 BASTIDORES: --- 2014-2018
APRILIA RS4 50 EURO4 3 CV, 2,2 KW 1CIL. KRA00 BASTIDORES: --- 2018-2019
APRILIA RS4 50 EURO4 3 CV, 2,2 KW 1CIL. KRA00 BASTIDORES: --- 2020-2021
APRILIA TUONO 125 4T ABS 15 CV, 11 KW 1CIL. KCA00 BASTIDORES: --- 2017-2020
APRILIA TUONO 125 4T ABS EURO4 15 CV, 11 KW 1CIL. KCA00 BASTIDORES: --- 2021
APRILIA TUONO 125 4T ABS EURO5 15 CV, 11 KW 1CIL. XAB00 BASTIDORES: --- 2021-2022
DERBI GPR 125 2T NUDE 15 CV, 11 KW 1CIL. GS1A1B BASTIDORES: VTHGS1A1B5H271057-- 2005-2007
DERBI GPR 125 2T RACING 15 CV, 11 KW 1CIL. GS1A1A BASTIDORES: VTHGS1A1A5H270137-- 2005-2009
DERBI GPR 125 4T RACING 15 CV, 11 KW 1CIL. RG1A1A BASTIDORES: --- 2009-2016
DERBI GPR 50 NUDE 2,9 CV, 2,1 KW 1CIL. - BASTIDORES: --- 2007-2012
DERBI GPR 50 NUDE 3,2 CV, 2,3 KW 1CIL. GR1A1B BASTIDORES: VTHGR1A1B4H257767-- 2004-2006
DERBI GPR 50 RACING 1,5 CV, 1,1 KW 1CIL. GR1A1A BASTIDORES: VTHGR1A1A4H250007-- 2005
DERBI GPR 50 RACING 1,5 CV, 1,1 KW 1CIL. GR1D1A BASTIDORES: --- 2006
DERBI GPR 50 RACING 2,9 CV, 2,1 KW 1CIL. - BASTIDORES: --- 2008-2009
DERBI GPR 50 RACING 2,9 CV, 2,1 KW 1CIL. GR1D1A BASTIDORES: --- 2007
DERBI GPR 50 RACING 2,9 CV, 2,1 KW 1CIL. RF1A1A BASTIDORES: --- 2010-2012
DERBI MULHACEN 125 CAFE GUSSRAD 15 CV, 11 KW 1CIL. MS1A1A BASTIDORES: VTHMS1A1A7N001791-- 2008-2009
DERBI MULHACEN 125 CAFE GUSSRAD 15 CV, 11 KW 1CIL. MS1A2A BASTIDORES: --- 2010-2011
