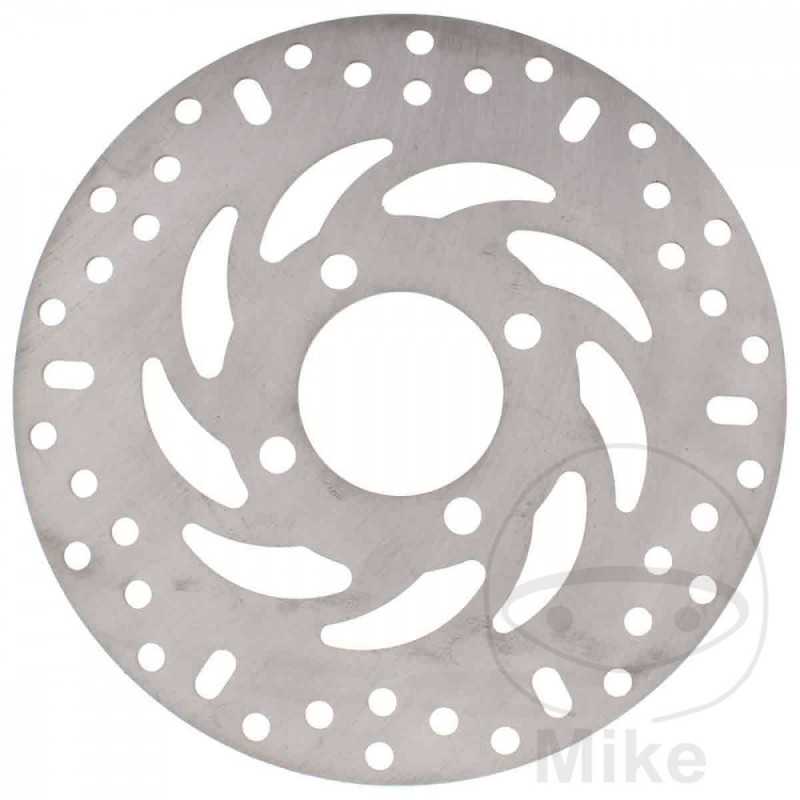

EBC Stainless steel brake disc for motorcycle SCOOTER 760.00.36

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.

The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of low carbon laminated HPSR steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC eco brake pads or EBC Double-H sintered brake pads for sporty drivers.

- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 58.2MM
CIRCLE SIZE: 78 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
THICKNESS: 3.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda AFS 110 2SH i Wave 8,7 CV, 6,4 kw 1cil. JC51A C Bastidores: LTM JC51A henceforthC5000001-- 2012-2014
Honda AFS 110 CSF i Wave 8,7 CV, 6,4 kw 1cil. JC51B F Bastidores: LTM JC51B-F5100001-- 2015-2016
Honda NSC 110 MPD Vision CBS 8,4 CV, 6,2 kw 1cil. JF31B C Bastidores: LWB JF31B8-C1100016-LWB JF31B8-C1199999 2012-2013
Honda NSC 110 MPD Vision CBS 8,4 CV, 6,2 kw 1cil. JF53B E Bastidores: ZDC JF53B-EF000001-- 2014-2016
Honda NSC 110 MPD Vision CBS 8,8 CV, 6,5 kw 1cil. JF67A H Bastidores: ZDC JF67A-HF000001-ZDC JF67A-HF099999 2017-2018
Honda NSC 110 Vision CBS 8,7 CV, 6,4 kw 1cil. JK03A M Bastidores: RLH JK03A-MZ000001-RLH JK03A-MZ199999 2021-2022
Honda NSC 50 MPD Vision 16 pulgadas 3,4 CV, 2,5 kw 1cil. AF72B C Bastidores: LWB AF72B9-C1100015-LWB AF72B9-C1199999 2012-2013
Honda NSC 50 MPD Vision 16 pulgadas 3,4 CV, 2,5 kw 1cil. AF73B E Bastidores: ZDC AF73B-EF000001-ZDC AF73B-EF099999 2014-2019
Honda NSC 50 R 2WH 3,4 CV, 2,5 kw 1cil. AF72C D Bastidores: LWB AF72C1-D1200023-LWB AF72C1-D1299999 2013
Honda NSC 50 R T2 3,4 CV, 2,5 kw 1cil. AF73C E Bastidores: ZDC AF73C-EF000001-ZDC AF73C-EF099999 2014
Honda NSC 50 R T2 3,4 CV, 2,5 kw 1cil. AF73C F Bastidores: ZDC AF73C-FF500001-- 2015-2017
Honda NSC 50 WH Vision 14 pulgadas 3,4 CV, 2,5 kw 1cil. AF72A C Bastidores: LWB AF72A1-C1000031-LWB AF72A1-C1099999 2012-2013
Honda PCX 125 EX2 WW 125 CBS 11,7 CV, 8,6 kw 1cil. JF28A A Bastidores: MLH JF28A-A5000001-MLH JF28A-A5999999 2010-2011
Honda PCX 125 EX2 WW 125 CBS 11,7 CV, 8,6 kw 1cil. JF28A C Bastidores: MLH JF28A-A5200001-MLH JF28A-A5299999 2012-2014
Honda PCX 125 EX2 WW 125 CBS 11,7 CV, 8,6 kw 1cil. JF57A F Bastidores: ZDC JF57A-FF000001-ZDC JF57A-FF999999 2015-2016
Honda PCX 125 EX2 WW 125 CBS 11,7 CV, 8,6 kw 1cil. JF64A H Bastidores: ZDC JF64A-HF000001-- 2017-2018
Honda PCX 125 WW 125 CBS 11,7 CV, 8,6 kw 1cil. JF47A D Bastidores: ZDC JF47A-DF000001-ZDCJF47A-DF999999 2013
Honda PCX 150 EX2 WW 150 13,6 CV, 10 kw 1cil. KF19A F Bastidores: ZDC KF19A-FF000001-- 2015-2018
Honda PCX 150 WW 150 1cil. KF12A C Bastidores: MLH KF12A-C50000001-MLHKF12A-C5099999 2012
Honda PCX 150 WW 150 1cil. KF15A D Bastidores: ZDC KF15A-DF000001-ZDC KF15A-DF099999 2013
