EBC Stainless steel brake disc for motorcycle SCOOTER 760.00.35

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which erodes in the area of the contact patch of the brake pads during braking. Only in this area can the form more easily oxidize during the long life.

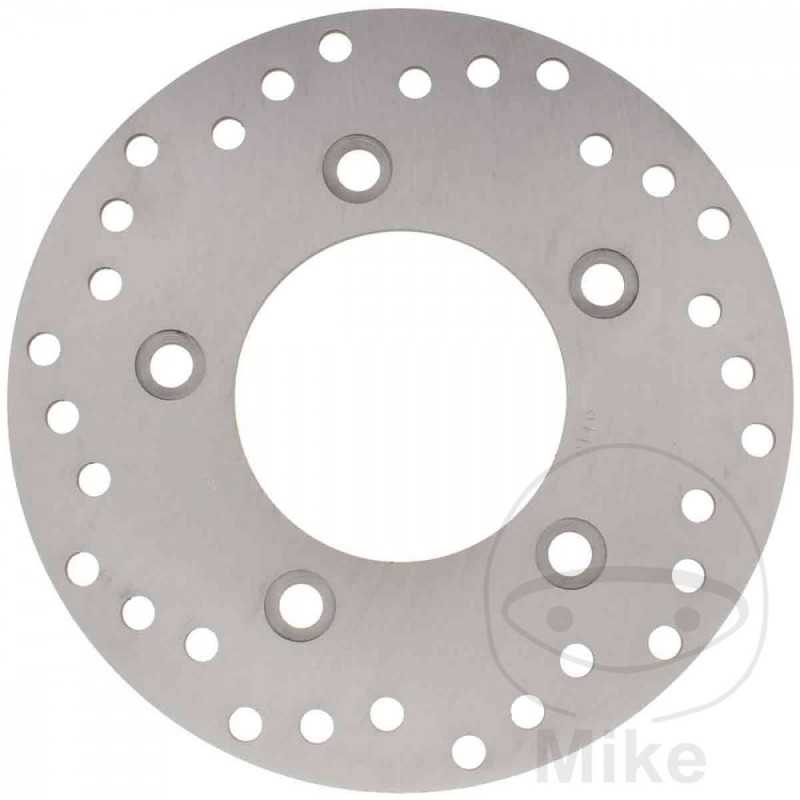

The brake discs are perforated in Vogelschwingendesign to fit with as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes installed, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered brake pads.

- Independent design.
OUTSIDE DIAMETER: 190MM
INSIDE DIAMETER: 80.25MM
CIRCLE SIZE: 112 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SYM Jet 25 BasiX 2 CV, 1,54 kw 1cil. BL05WH-6 Bastidores: --- 2008-2011
SYM Jet 25 EuroX 2 CV, 1,54 kw 1cil. BL05WC-6 Bastidores: --- 2006-2012
SYM Jet 50 3,3 CV, 2,4 kw 1cil. BL05W-6 Bastidores: --- 1999-2002
SYM Jet 50 BasiX 3,8 CV, 2,8 kw 1cil. BL05WG-6 Bastidores: --- 2007-2011
SYM Jet 50 EuroX 4,3 CV, 3,2 kw 1cil. BL05W6-6 Bastidores: --- 2003-2004
SYM Jet 50 EuroX 4,3 CV, 3,2 kw 1cil. BL05W7-6 Bastidores: --- 2005
SYM Jet EuroX 100 6,6 CV, 4,9 kw 1cil. G100P3-6 Bastidores: --- 2006-2007
SYM Jungle 50 3,3 CV, 2,4 kw 1cil. GA05W-6 Bastidores: --- 1997-2001
SYM Mask 50 2T 3,5 CV, 2,6 kw 1cil. BF05W-6 Bastidores: --- 2003-2004
SYM Mask 50 2T 4 CV, 3 kw 1cil. BF05W2-6 Bastidores: --- 2005-2007
SYM Red Devil 25 1cil. BL05W2-6 Bastidores: --- 2004
SYM Red Devil 25 1cil. BL05W7-6 Bastidores: --- 2005
SYM Red Devil 25 1,6 CV, 1,2 kw 1cil. BL05WC-G Bastidores: --- 2006-2012
SYM Red Devil 50 3,3 CV, 2,4 kw 1cil. G5J2-6 Bastidores: --- 1998-2001
SYM Red Devil 50 4,3 CV, 3,2 kw 1cil. - Bastidores: --- 2005
SYM Red Devil 50 4,3 CV, 3,2 kw 1cil. BL05W2-6 Bastidores: --- 2003-2004
SYM Red Devil 50 4,3 CV, 3,2 kw 1cil. BL05W7-G Bastidores: --- 2006-2007
