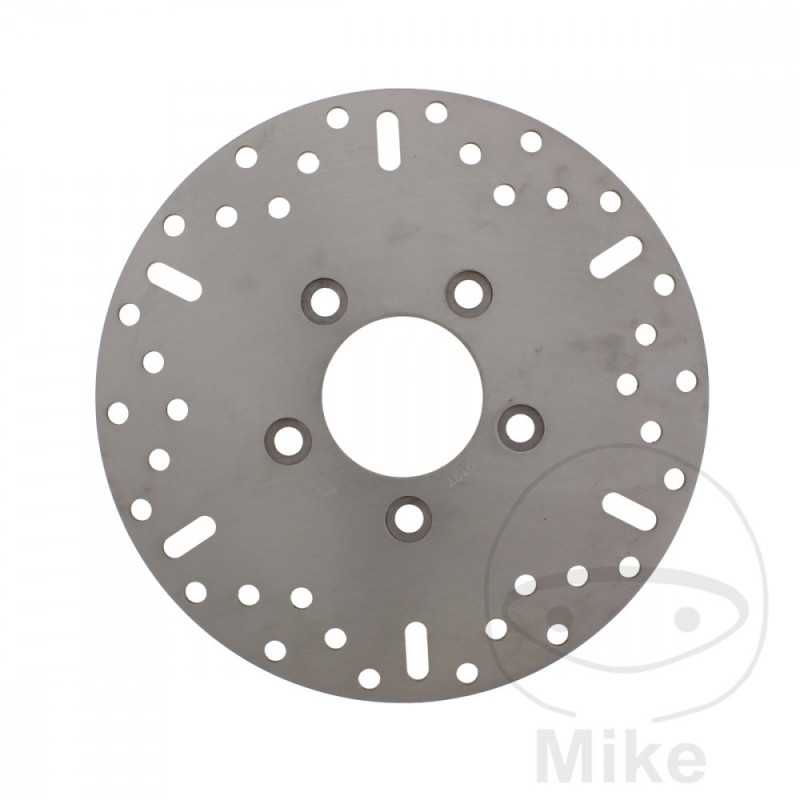

EBC Stainless steel brake disc for motorcycle SCOOTER 760.00.34

EBC brake discs. MADE IN THE UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.

The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of low carbon laminated HPSR steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC eco brake pads or EBC Double-H sintered brake pads for sporty drivers.

- Independent design.
OUTER DIAMETER: 226MM
INSIDE DIAMETER: 59.2MM
CIRCLE SIZE: 90 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SYM Jet14 50 3,5 CV, 2,6 kw 1cil. XC05W1-EU Bastidores: --- 2018-2020
SYM Jet14 50 ie 3 CV, 2,2 kw 1cil. - Bastidores: --- 2022
SYM Jet14 50 ie 3 CV, 2,2 kw 1cil. XC05W2-EU Bastidores: --- 2021
SYM Jet4 125 8,8 CV, 6,5 kw 1cil. AD12W1-6 Bastidores: --- 2010-2016
SYM Jet4 50 R 2T 3,5 CV, 2,6 kw 1cil. JD05W1-6 Bastidores: --- 2011-2017
SYM JetV 125 10,2 CV, 7,5 kw 1cil. HM12VA-6 Bastidores: --- 2011-2015
SYM ST 125 ie CBS 10,2 CV, 7,5 kw 1cil. - Bastidores: --- 2017-2018
SYM Symphony 125 8,8 CV, 6,5 kw 1cil. AY12W-T Bastidores: --- 2009-2011
SYM Symphony 125 ie Cargo CBS 10,2 CV, 7,5 kw 1cil. AY12W9-EU Bastidores: --- 2017-2020
SYM Symphony 125 ie Cargo CBS 11,4 CV, 8,4 kw 1cil. - Bastidores: --- 2022
SYM Symphony 125 ie Cargo CBS 11,4 CV, 8,4 kw 1cil. AY12WA-EU Bastidores: --- 2021
SYM Symphony 125 ie CBS 11,4 CV, 8,4 kw 1cil. - Bastidores: --- 2021-2022
SYM Symphony 125 S 8,8 CV, 6,5 kw 1cil. - Bastidores: --- 2013-2016
SYM Symphony 150 S 10,5 CV, 7,7 kw 1cil. - Bastidores: --- 2015-2016
SYM Symphony 25 1cil. AY05W-6 Bastidores: --- 2009-2012
SYM Symphony 50 1cil. AY05W-T Bastidores: --- 2009-2014
SYM Symphony 50 Cargo 1cil. AY05W7-EU Bastidores: --- 2019-2020
SYM Symphony 50 ie 3 CV, 2,2 kw 1cil. - Bastidores: --- 2022
SYM Symphony 50 ie 3 CV, 2,2 kw 1cil. XF05W1-EU Bastidores: --- 2021
SYM Symphony 50 ie Cargo 3 CV, 2,2 kw 1cil. - Bastidores: --- 2022
SYM Symphony 50 ie Cargo 3 CV, 2,2 kw 1cil. AY05W9-EU Bastidores: --- 2021
SYM Symphony 50 S DD 3,1 CV, 2,3 kw 1cil. AY05W8-EU Bastidores: --- 2018-2019
SYM Symphony 50 S DD 3,5 CV, 2,6 kw 1cil. - Bastidores: --- 2020
SYM Symphony 50 S DT 3,1 CV, 2,3 kw 1cil. - Bastidores: --- 2015-2016
SYM Symphony 50 S DT 3,1 CV, 2,3 kw 1cil. - Bastidores: --- 2018-2019
