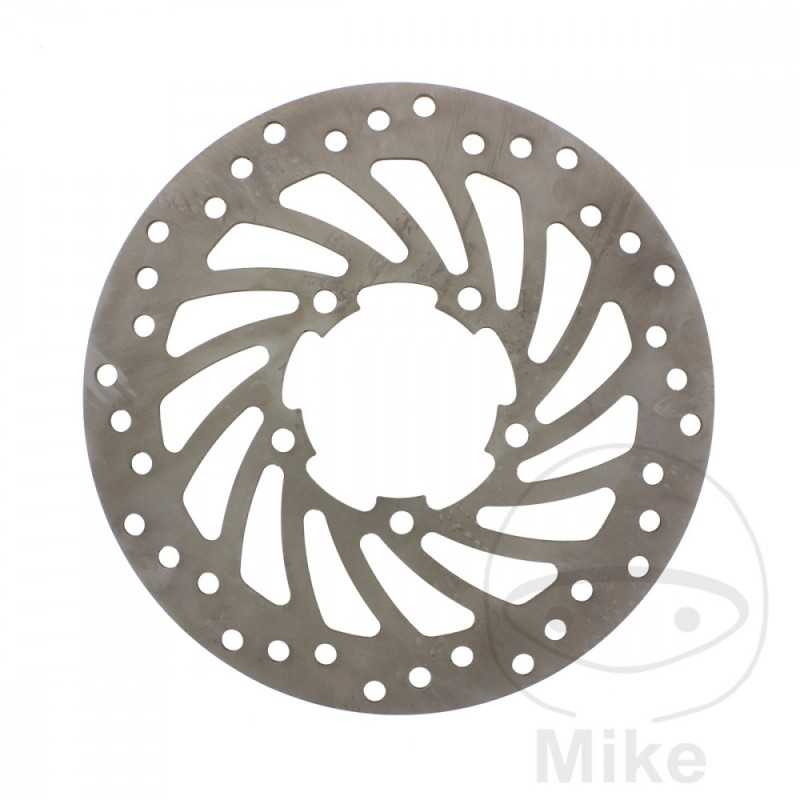

EBC Stainless steel brake disc for motorcycle SCOOTER 760.00.33
€48.85
€85.96
Save 43.17%Tax included
EBC brake discs. MADE IN UK.
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which erodes in the area of the contact patch of the brake pads during braking. Only in this area can the form more easily oxidize during the long life.
The brake discs are perforated in Vogelschwingendesign to fit with as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes installed, the better the wet braking performance and the less wear.
- Rigid brake disc.
- Made of low carbon HPSR laminated steel.
- Drilled brake surface with optimized hole pattern.
- Radially ground.
- Galvanized for protection against corrosion.
- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered brake pads.
- Independent design.
OUTER DIAMETER: 226MM
INSIDE DIAMETER: 70.2MM
CIRCLE SIZE: 88 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
THICKNESS: 4.5MM
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
PEUGEOT ELYSTAR 125 ADVANTAGE 12,2 CV, 9 KW 1CIL. VGA H2AB BASTIDORES: --- 2006-2007
PEUGEOT ELYSTAR 125 IE ABS 12,2 CV, 9 KW 1CIL. VGA H2AB H2 BASTIDORES: --- 2006-2007
PEUGEOT ELYSTAR 150 IE 14,3 CV, 10,5 KW 1CIL. VGA H2AC H2 BASTIDORES: --- 2006
PEUGEOT JET FORCE 125 IE 12,5 CV, 9,2 KW 1CIL. VGA A2ABJB A2 BASTIDORES: --- 2003-2007
PEUGEOT JET FORCE 125 IE ABS 12,5 CV, 9,2 KW 1CIL. VGA A2ABJD A2 BASTIDORES: --- 2003-2007
PEUGEOT JET FORCE 125 IE K15 COMPRESSOR 15 CV, 11 KW 1CIL. VGA A2ACJB A2 BASTIDORES: --- 2005-2007
PEUGEOT JET FORCE 125 IE K20 COMPRESSOR 20 CV, 15 KW 1CIL. VGA A2ADJB A2 BASTIDORES: --- 2005-2007
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which erodes in the area of the contact patch of the brake pads during braking. Only in this area can the form more easily oxidize during the long life.
The brake discs are perforated in Vogelschwingendesign to fit with as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes installed, the better the wet braking performance and the less wear.
- Rigid brake disc.
- Made of low carbon HPSR laminated steel.
- Drilled brake surface with optimized hole pattern.
- Radially ground.
- Galvanized for protection against corrosion.
- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered brake pads.
- Independent design.
OUTER DIAMETER: 226MM
INSIDE DIAMETER: 70.2MM
CIRCLE SIZE: 88 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
THICKNESS: 4.5MM
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
PEUGEOT ELYSTAR 125 ADVANTAGE 12,2 CV, 9 KW 1CIL. VGA H2AB BASTIDORES: --- 2006-2007
PEUGEOT ELYSTAR 125 IE ABS 12,2 CV, 9 KW 1CIL. VGA H2AB H2 BASTIDORES: --- 2006-2007
PEUGEOT ELYSTAR 150 IE 14,3 CV, 10,5 KW 1CIL. VGA H2AC H2 BASTIDORES: --- 2006
PEUGEOT JET FORCE 125 IE 12,5 CV, 9,2 KW 1CIL. VGA A2ABJB A2 BASTIDORES: --- 2003-2007
PEUGEOT JET FORCE 125 IE ABS 12,5 CV, 9,2 KW 1CIL. VGA A2ABJD A2 BASTIDORES: --- 2003-2007
PEUGEOT JET FORCE 125 IE K15 COMPRESSOR 15 CV, 11 KW 1CIL. VGA A2ACJB A2 BASTIDORES: --- 2005-2007
PEUGEOT JET FORCE 125 IE K20 COMPRESSOR 20 CV, 15 KW 1CIL. VGA A2ADJB A2 BASTIDORES: --- 2005-2007
760.00.33
10 Items
Data sheet
- INSIDE DIAMETER
- 88MM
- VERSION
- RIGID
- QUANTITY OF HOLES
- 5
- EXTERNAL DIAMETER
- 226MM
- CIRCLE MEASUREMENT
- 88MM
- HOLE DIAMETER
- 8.5 MM
- THICKNESS
- 4.5 MM
