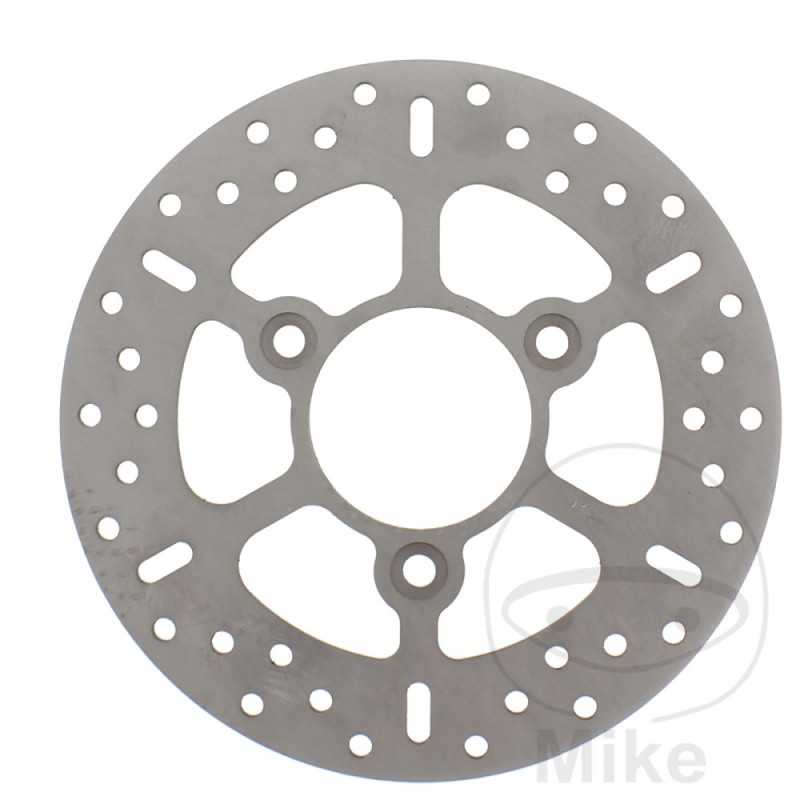

EBC Stainless steel brake disc for motorcycle SCOOTER 760.00.26

EBC brake discs. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which erodes in the area of the contact patch of the brake pads during braking. Only in this area can the form more easily oxidize during the long life.

The brake discs are perforated in Vogelschwingendesign to fit with as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes installed, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of low carbon HPSR laminated steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC organic brake pads or for sporty drivers EBC Double-H sintered brake pads.

- Independent design.
OUTSIDE DIAMETER: 190MM
INSIDE DIAMETER: 58.2MM
CIRCLE SIZE: 80 MM
QUANTITY OF HOLES: 3
HOLE DIAMETER: 8.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
GILERA STALKER 50 DD 3,8 CV, 2,8 KW 1CIL. C13000 BASTIDORES: ZAPC13000 henceforth0001001-- 1997-2000
GILERA STALKER 50 DT BASE 3,8 CV, 2,8 KW 1CIL. C13000 BASTIDORES: ZAPC13000 henceforth3000001-- 1999-2003
GILERA STALKER 50 DT BASE 4,3 CV, 3,2 KW 1CIL. C40100 BASTIDORES: ZAPC40100 henceforth0001001-ZAPC40100 henceforth0027507 2004
GILERA STALKER 50 DT BASE 4,3 CV, 3,2 KW 1CIL. C40100 BASTIDORES: ZAPC40100 henceforth0027508-ZAPC40100 henceforth0031052 2005-2006
PIAGGIO TPH 125 2T TYPHOON 12 CV, 8,8 KW 1CIL. M02000 BASTIDORES: ZAPM02000 henceforth0001001-- 1995-1999
PIAGGIO TPH 125 X-R 2T TYPHOON 12 CV, 8,8 KW 1CIL. M02000 BASTIDORES: ZAPM02000 henceforth0001001-- 2000-2003
PIAGGIO TPH 50 TYPHOON 4,2 CV, 3,1 KW 1CIL. TEC1T BASTIDORES: TEC1T henceforth001001-- 1994-1997
PIAGGIO TPH 50 TYPHOON 4,3 CV, 3,2 KW 1CIL. C48100 BASTIDORES: LBMC48100 henceforth0001001-- 2008-2010
PIAGGIO TPH 50 TYPHOON CATALIZADOR 4,2 CV, 3,1 KW 1CIL. TEC1T BASTIDORES: TEC1T henceforth001001-- 1995
PIAGGIO TPH 50 X-R TYPHOON 4,2 CV, 3,1 KW 1CIL. C19000 BASTIDORES: ZAPC1900 henceforth00001001-- 2000
PIAGGIO TPH 50 X-R TYPHOON 4,2 CV, 3,1 KW 1CIL. C29000 BASTIDORES: ZAPC29000 henceforth0001001-ZAPC29000 henceforth1999999 2001-2003
PIAGGIO TPH 50 X-R TYPHOON 4,2 CV, 3,1 KW 1CIL. C29000 BASTIDORES: ZAPC29000 henceforth2000001-ZAPC2900 henceforth02024807 2004
PIAGGIO TPH 50 X-R TYPHOON 4,3 CV, 3,2 KW 1CIL. C29000 BASTIDORES: ZAPC29000 henceforth2000001-ZAPC2900 henceforth02024807 2005
PIAGGIO TPH 50 X-R TYPHOON 4,3 CV, 3,2 KW 1CIL. C29000 BASTIDORES: ZAPC29000 henceforth2024808-ZAPC29000 henceforth2032302 2006
PIAGGIO TPH 50 X-R TYPHOON 4,3 CV, 3,2 KW 1CIL. C29000 BASTIDORES: ZAPC29000 henceforth2032303-ZAPC29000 henceforth2046680 2007
