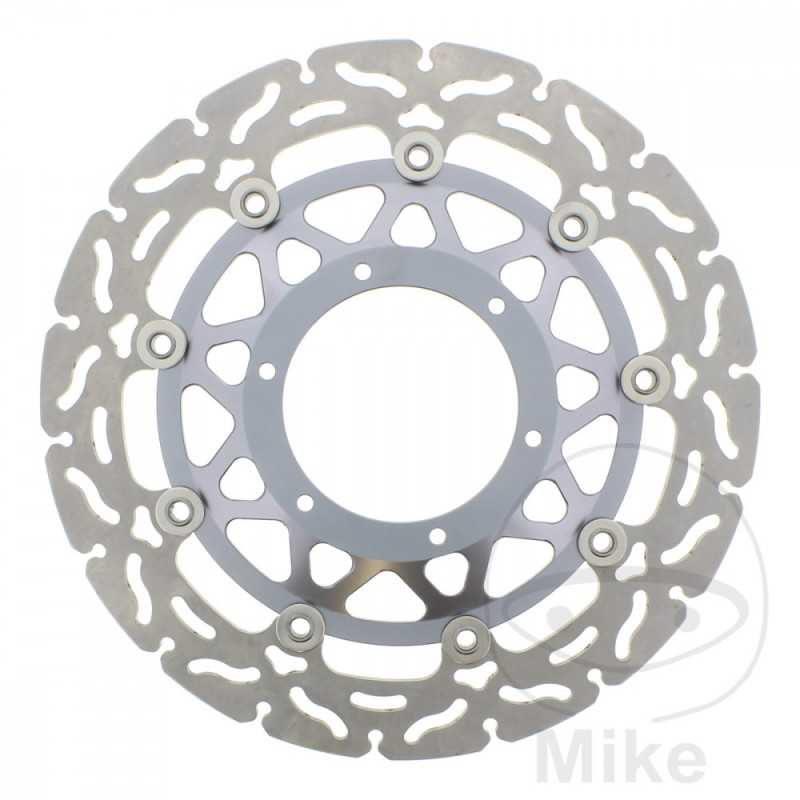

TRW Floating brake disc RACING 788.25.07

All brake discs have an ABE, also for scooters.

The discs are low-wear and have a service life that is up to 30% longer than some comparable replacement parts.

All variants: Allround, RAC and EC-offroad discs, are made of hardened steel and extremely stable in their dimensions.

The precise grinding of the surface (thickness deviation of 2 / 100mm) prevents vibrations and improves the adaptation of the coatings.

A uniform build-up and decrease in temperature allows for a constant pressure point.

The floating brake discs have aluminum-milled titanium-colored anodized inner rings.

Floating panels do not vibrate because high quality stainless steel floats are held in tension with corrugated washers.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour with grooved braking edge

- In rigid and floating variants

- Coordinated design from front to rear axle
OUTER DIAMETER: 296MM
INSIDE DIAMETER: 94MM
CIRCLE SIZE: 110 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 5mm
PADDING: 14.5MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 600 F Hornet 102 CV, 75 kw 4cil. - D Bastidores: --- 2013-2015
Honda CB 600 F Hornet 102 CV, 75 kw 4cil. PC41A 7 Bastidores: ZDC PC41A henceforth7F000001-ZDC PC41A henceforth7F099999 2007
Honda CB 600 F Hornet 102 CV, 75 kw 4cil. PC41A 8 Bastidores: ZDC PC41A henceforth8F050001-ZDC PC41A henceforth8F999999 2008
Honda CB 600 F Hornet 102 CV, 75 kw 4cil. PC41A 9 Bastidores: ZDC PC41A henceforth9F075001-- 2009
Honda CB 600 F Hornet 102 CV, 75 kw 4cil. PC41A A Bastidores: ZDC PC41A henceforthAF090001-ZDC PC41A henceforthAF099999 2010
Honda CB 600 F Hornet 102 CV, 75 kw 4cil. PC41E B Bastidores: ZDC PC41E henceforthBF100001-ZDC PC41E henceforthBF199999 2011
Honda CB 600 F Hornet 102 CV, 75 kw 4cil. PC41E C Bastidores: ZDC PC41E henceforthCF115001-ZDC PC41E henceforthCF199999 2012
Honda CB 600 F Hornet 34 CV, 25 kw 4cil. PC41B 7 Bastidores: ZDC PC41B henceforth7F000001-ZDC PC41B henceforth7F099999 2007
Honda CB 600 F Hornet 34 CV, 25 kw 4cil. PC41B 8 Bastidores: ZDC PC41B henceforth8F050001-ZDC PC41B henceforth8F099999 2008
Honda CB 600 F Hornet 34 CV, 25 kw 4cil. PC41B 9 Bastidores: ZDC PC41B henceforth9F075001-- 2009
Honda CB 600 F Hornet 34 CV, 25 kw 4cil. PC41B A Bastidores: ZDC PC41B henceforthAF090001-ZDC PC41B henceforthAF099999 2010
Honda CB 600 FA Hornet ABS 102 CV, 75 kw 4cil. - D Bastidores: --- 2013-2015
Honda CB 600 FA Hornet ABS 102 CV, 75 kw 4cil. PC41C 7 Bastidores: ZDC PC41C henceforth7F000001-ZDC PC41C henceforth7F099999 2007
Honda CB 600 FA Hornet ABS 102 CV, 75 kw 4cil. PC41C 8 Bastidores: ZDC PC41C henceforth8F050001-ZDC PC41C henceforth8F999999 2008
Honda CB 600 FA Hornet ABS 102 CV, 75 kw 4cil. PC41C 9 Bastidores: ZDC PC41C henceforth9F075001-- 2009
Honda CB 600 FA Hornet ABS 102 CV, 75 kw 4cil. PC41C A Bastidores: ZDC PC41C henceforthAF090001-ZDC PC41C0-AF099999 2010
Honda CB 600 FA Hornet ABS 102 CV, 75 kw 4cil. PC41F B Bastidores: ZDC PC41F henceforthBF100001-ZDC PC41F henceforthBF199999 2011
Honda CB 600 FA Hornet ABS 102 CV, 75 kw 4cil. PC41F C Bastidores: ZDC PC41F henceforthCF115001-- 2012
Honda CB 600 FA Hornet ABS 34 CV, 25 kw 4cil. - D Bastidores: --- 2013-2015
Honda CB 600 FA Hornet ABS 34 CV, 25 kw 4cil. PC41D 7 Bastidores: ZDC PC41D henceforth7F000001-ZDC PC41D henceforth7F099999 2007
Honda CB 600 FA Hornet ABS 34 CV, 25 kw 4cil. PC41D 8 Bastidores: ZDC PC41D henceforth8F050001-ZDC PC41D henceforth8F999999 2008
Honda CB 600 FA Hornet ABS 34 CV, 25 kw 4cil. PC41D 9 Bastidores: ZDC PC41D henceforth9F075001-- 2009
Honda CB 600 FA Hornet ABS 34 CV, 25 kw 4cil. PC41D A Bastidores: ZDC PC41D henceforthAF090001-ZDC PC41D henceforthAF099999 2010
Honda CB 600 FA Hornet ABS 34 CV, 25 kw 4cil. PC41H B Bastidores: ZDC PC41H henceforthBF100001-ZDC PC41H henceforthBF199999 2011
Honda CB 600 FA Hornet ABS 34 CV, 25 kw 4cil. PC41H C Bastidores: ZDC PC41H henceforthCF115001-- 2012
Honda CBR 600 F 102 CV, 75 kw 4cil. PC41J B Bastidores: ZDC PC41J henceforthBF500001-ZDC PC41J henceforthBF599999 2011
Honda CBR 600 F 102 CV, 75 kw 4cil. PC41J C Bastidores: ZDC PC41J henceforthCF515001-- 2012-2013
Honda CBR 600 FA ABS 102 CV, 75 kw 4cil. PC41K B Bastidores: ZDC PC41K henceforthBF500001-ZDC PC41K henceforthBF599999 2011
Honda CBR 600 FA ABS 102 CV, 75 kw 4cil. PC41K C Bastidores: ZDC PC41K henceforthCF515001-- 2012-2013
