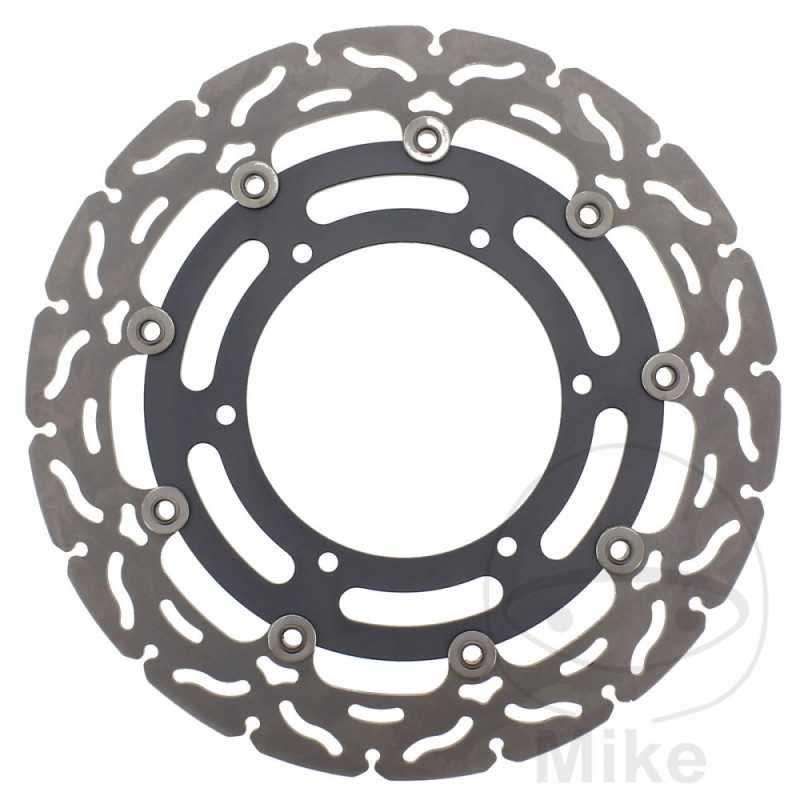

TRW Floating brake disc RACING 788.25.01
€230.34
€257.91
Save €27.58Tax included
All brake discs have an ABE, also for scooters.
The discs are low-wear and have a service life that is up to 30% longer than some comparable replacement parts.
All variants: Allround, RAC and EC-offroad discs, are made of hardened steel and extremely stable in their dimensions.
The precise grinding of the surface (thickness deviation of 2 / 100mm) prevents vibrations and improves the adaptation of the coatings.
A uniform build-up and decrease in temperature allows for a constant pressure point.
The floating brake discs have aluminum-milled titanium-colored anodized inner rings.
Floating panels do not vibrate because high quality stainless steel floats are held in tension with corrugated washers.
A new special alloy prevents excessive corrosion.
Laser technology allows for a lightweight construction with fine contours.
Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.
TRW-Lucas RAC floating brake disc
- Notched outer contour with grooved braking edge
- In rigid and floating variants
- Coordinated design from front to rear axle
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 132MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.3 MM
thickness: 5mm
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha FJR 1300 143,5 CV, 105,5 kw 4cil. RP081 5JWA Bastidores: RP081 henceforth00301-- 2003
Yamaha FJR 1300 143,5 CV, 105,5 kw 4cil. RP111 5JWG Bastidores: RP111 henceforth00301-- 2004
Yamaha FJR 1300 A ABS 143,4 CV, 105,5 kw 4cil. RP13A 1CY5 Bastidores: RP13A henceforth05221-- 2010
Yamaha FJR 1300 A ABS 143,4 CV, 105,5 kw 4cil. RP13A 1CY6 Bastidores: RP13A henceforth05201-- 2010
Yamaha FJR 1300 A ABS 143,4 CV, 105,5 kw 4cil. RP13A 1CY9 Bastidores: RP13A henceforth05741-- 2011-2012
Yamaha FJR 1300 A ABS 143,4 CV, 105,5 kw 4cil. RP13A 3P6K Bastidores: RP13A henceforth03455-- 2009
Yamaha FJR 1300 A ABS 143,4 CV, 105,5 kw 4cil. RP13A 3P6V Bastidores: RP13A henceforth03633-- 2009
Yamaha FJR 1300 A ABS 143,5 CV, 105,5 kw 4cil. RP085 5VS1 Bastidores: RP085 henceforth00301-- 2003
Yamaha FJR 1300 A ABS 143,5 CV, 105,5 kw 4cil. RP115 5VS7 Bastidores: RP115 henceforth00301-- 2004
Yamaha FJR 1300 A ABS 143,5 CV, 105,5 kw 4cil. RP115 5VSD Bastidores: RP115 henceforth05392-- 2005
Yamaha FJR 1300 A ABS 143,5 CV, 105,5 kw 4cil. RP115 5VSG Bastidores: RP115 henceforth08292-- 2005
Yamaha FJR 1300 A ABS 143,5 CV, 105,5 kw 4cil. RP131 3P61 Bastidores: RP131 henceforth00301-- 2006
Yamaha FJR 1300 A ABS 143,5 CV, 105,5 kw 4cil. RP131 3P67 Bastidores: RP131 henceforth04988-- 2007
Yamaha FJR 1300 A ABS 143,5 CV, 105,5 kw 4cil. RP13A 3P6D Bastidores: RP13A henceforth00011-- 2008
Yamaha FJR 1300 A ABS 146 CV, 107,5 kw 4cil. RP231 1MC1 Bastidores: RP231 henceforth00301-- 2013
Yamaha FJR 1300 A ABS 146 CV, 107,5 kw 4cil. RP231 1MC9 Bastidores: RP231 henceforth02268-- 2014
Yamaha FJR 1300 A ABS 146 CV, 107,5 kw 4cil. RP231 1MCG Bastidores: RP231 henceforth02915-- 2015
Yamaha FJR 1300 A ABS 146 CV, 107,5 kw 4cil. RP281 B881 Bastidores: RP281 henceforth00301-- 2016-2017
Yamaha FJR 1300 A ABS 146 CV, 107,5 kw 4cil. RP281 B88C Bastidores: RP281 henceforth01586-- 2018-2021
Yamaha FJR 1300 AE ABS Chasis electrónico 146,2 CV, 107,5 kw 4cil. RP23F 2PD1 Bastidores: RP23F henceforth00301-- 2014
Yamaha FJR 1300 AE ABS Chasis electrónico 146,2 CV, 107,5 kw 4cil. RP23F 2PD9 Bastidores: RP23F henceforth01149-- 2015
Yamaha FJR 1300 AE ABS Chasis electrónico 146,2 CV, 107,5 kw 4cil. RP286 B961 Bastidores: RP286 henceforth00301-- 2016-2017
Yamaha FJR 1300 AE ABS Chasis electrónico 146,2 CV, 107,5 kw 4cil. RP286 B96B Bastidores: RP286 henceforth02873-- 2017-2019
Yamaha FJR 1300 AE ABS Chasis electrónico 146,2 CV, 107,5 kw 4cil. RP286 B96L Bastidores: RP286 henceforth04793-- 2020-2021
Yamaha FJR 1300 AE Ultimate Edition ABS Chasis electrónico 146,2 CV, 107,5 kw 4cil. RP286 Bastidores: --- 2020-2021
Yamaha FJR 1300 AS ABS automática 143,4 CV, 105,5 kw 4cil. - 1DA6 Bastidores: --- 2010
Yamaha FJR 1300 AS ABS automática 143,4 CV, 105,5 kw 4cil. RP13E 1DA5 Bastidores: RP13E henceforth01051-- 2010
Yamaha FJR 1300 AS ABS automática 143,4 CV, 105,5 kw 4cil. RP13E 1DA9 Bastidores: RP13E henceforth01087-- 2011-2012
Yamaha FJR 1300 AS ABS automática 143,4 CV, 105,5 kw 4cil. RP13E 2D2K Bastidores: RP13E henceforth00904-- 2009
Yamaha FJR 1300 AS ABS automática 143,4 CV, 105,5 kw 4cil. RP13E 2D2V Bastidores: RP13E henceforth00914-- 2009
Yamaha FJR 1300 AS ABS automática 143,5 CV, 105,5 kw 4cil. RP135 2D21 Bastidores: RP135 henceforth00301-- 2006
Yamaha FJR 1300 AS ABS automática 143,5 CV, 105,5 kw 4cil. RP135 2D27 Bastidores: RP135 henceforth01222-- 2007
Yamaha FJR 1300 AS ABS automática 143,5 CV, 105,5 kw 4cil. RP136 2D22 Bastidores: RP136 henceforth00301-- 2006
Yamaha FJR 1300 AS ABS automática 143,5 CV, 105,5 kw 4cil. RP13E 2D2D Bastidores: RP13E henceforth00301-- 2008
Yamaha FJR 1300 AS ABS automática 146,2 CV, 107,5 kw 4cil. RP235 1MD1 Bastidores: RP235 henceforth00301-- 2013-2014
Yamaha FJR 1300 AS ABS automática 146,2 CV, 107,5 kw 4cil. RP235 1MD4 Bastidores: RP235 henceforth00662-- 2015
Yamaha FJR 1300 AS ABS automática 146,2 CV, 107,5 kw 4cil. RP285 B951 Bastidores: RP285 henceforth00301-- 2016-2017
Yamaha FJR 1300 AS ABS automática 146,2 CV, 107,5 kw 4cil. RP285 B954 Bastidores: RP285 henceforth00932-- 2017-2018
Yamaha FJR 1300 AS ABS automática 146,2 CV, 107,5 kw 4cil. RP285 B954 Bastidores: RP285 henceforth01003-- 2019
Yamaha FJR 1300 AS ABS automática 146,2 CV, 107,5 kw 4cil. RP285 B959 Bastidores: RP285 henceforth01398-- 2020-2021
Yamaha FJR 1300 AS Ultimate Edition ABS automática 146,2 CV, 107,5 kw 4cil. RP285 Bastidores: --- 2020-2021
Yamaha MT henceforth1 1700 90 CV, 66 kw 2cil. RP121 5YU1 Bastidores: RP121 henceforth00301-- 2005
Yamaha MT henceforth1 1700 90 CV, 66 kw 2cil. RP121 5YU3 Bastidores: RP121 henceforth08485-- 2006
Yamaha MT henceforth1 1700 90 CV, 66 kw 2cil. RP121 5YU4 Bastidores: RP121 henceforth09395-- 2006
Yamaha XVS 950 A Midnight Star 53,6 CV, 39 kw 2cil. VN021 26P1 Bastidores: VN021 henceforth00301-- 2009
Yamaha XVS 950 A Midnight Star 53,6 CV, 39 kw 2cil. VN021 26P2 Bastidores: VN021 henceforth03739-- 2010
Yamaha XVS 950 A Midnight Star 53,6 CV, 39 kw 2cil. VN021 26P3 Bastidores: VN021 henceforth04848-- 2011
Yamaha XVS 950 A Midnight Star 53,6 CV, 39 kw 2cil. VN021 26P4 Bastidores: VN021 henceforth05687-- 2012-2015
Yamaha YZF-R7 750 OW02 139/106 CV, 102/78 kw 4cil. RM011 5FL1 Bastidores: RM011 henceforth00301-- 1999-2001
The discs are low-wear and have a service life that is up to 30% longer than some comparable replacement parts.
All variants: Allround, RAC and EC-offroad discs, are made of hardened steel and extremely stable in their dimensions.
The precise grinding of the surface (thickness deviation of 2 / 100mm) prevents vibrations and improves the adaptation of the coatings.
A uniform build-up and decrease in temperature allows for a constant pressure point.
The floating brake discs have aluminum-milled titanium-colored anodized inner rings.
Floating panels do not vibrate because high quality stainless steel floats are held in tension with corrugated washers.
A new special alloy prevents excessive corrosion.
Laser technology allows for a lightweight construction with fine contours.
Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.
TRW-Lucas RAC floating brake disc
- Notched outer contour with grooved braking edge
- In rigid and floating variants
- Coordinated design from front to rear axle
OUTSIDE DIAMETER: 320MM
INSIDE DIAMETER: 132MM
CIRCLE SIZE: 150 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.3 MM
thickness: 5mm
VERSION: FLOATING
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha FJR 1300 143,5 CV, 105,5 kw 4cil. RP081 5JWA Bastidores: RP081 henceforth00301-- 2003
Yamaha FJR 1300 143,5 CV, 105,5 kw 4cil. RP111 5JWG Bastidores: RP111 henceforth00301-- 2004
Yamaha FJR 1300 A ABS 143,4 CV, 105,5 kw 4cil. RP13A 1CY5 Bastidores: RP13A henceforth05221-- 2010
Yamaha FJR 1300 A ABS 143,4 CV, 105,5 kw 4cil. RP13A 1CY6 Bastidores: RP13A henceforth05201-- 2010
Yamaha FJR 1300 A ABS 143,4 CV, 105,5 kw 4cil. RP13A 1CY9 Bastidores: RP13A henceforth05741-- 2011-2012
Yamaha FJR 1300 A ABS 143,4 CV, 105,5 kw 4cil. RP13A 3P6K Bastidores: RP13A henceforth03455-- 2009
Yamaha FJR 1300 A ABS 143,4 CV, 105,5 kw 4cil. RP13A 3P6V Bastidores: RP13A henceforth03633-- 2009
Yamaha FJR 1300 A ABS 143,5 CV, 105,5 kw 4cil. RP085 5VS1 Bastidores: RP085 henceforth00301-- 2003
Yamaha FJR 1300 A ABS 143,5 CV, 105,5 kw 4cil. RP115 5VS7 Bastidores: RP115 henceforth00301-- 2004
Yamaha FJR 1300 A ABS 143,5 CV, 105,5 kw 4cil. RP115 5VSD Bastidores: RP115 henceforth05392-- 2005
Yamaha FJR 1300 A ABS 143,5 CV, 105,5 kw 4cil. RP115 5VSG Bastidores: RP115 henceforth08292-- 2005
Yamaha FJR 1300 A ABS 143,5 CV, 105,5 kw 4cil. RP131 3P61 Bastidores: RP131 henceforth00301-- 2006
Yamaha FJR 1300 A ABS 143,5 CV, 105,5 kw 4cil. RP131 3P67 Bastidores: RP131 henceforth04988-- 2007
Yamaha FJR 1300 A ABS 143,5 CV, 105,5 kw 4cil. RP13A 3P6D Bastidores: RP13A henceforth00011-- 2008
Yamaha FJR 1300 A ABS 146 CV, 107,5 kw 4cil. RP231 1MC1 Bastidores: RP231 henceforth00301-- 2013
Yamaha FJR 1300 A ABS 146 CV, 107,5 kw 4cil. RP231 1MC9 Bastidores: RP231 henceforth02268-- 2014
Yamaha FJR 1300 A ABS 146 CV, 107,5 kw 4cil. RP231 1MCG Bastidores: RP231 henceforth02915-- 2015
Yamaha FJR 1300 A ABS 146 CV, 107,5 kw 4cil. RP281 B881 Bastidores: RP281 henceforth00301-- 2016-2017
Yamaha FJR 1300 A ABS 146 CV, 107,5 kw 4cil. RP281 B88C Bastidores: RP281 henceforth01586-- 2018-2021
Yamaha FJR 1300 AE ABS Chasis electrónico 146,2 CV, 107,5 kw 4cil. RP23F 2PD1 Bastidores: RP23F henceforth00301-- 2014
Yamaha FJR 1300 AE ABS Chasis electrónico 146,2 CV, 107,5 kw 4cil. RP23F 2PD9 Bastidores: RP23F henceforth01149-- 2015
Yamaha FJR 1300 AE ABS Chasis electrónico 146,2 CV, 107,5 kw 4cil. RP286 B961 Bastidores: RP286 henceforth00301-- 2016-2017
Yamaha FJR 1300 AE ABS Chasis electrónico 146,2 CV, 107,5 kw 4cil. RP286 B96B Bastidores: RP286 henceforth02873-- 2017-2019
Yamaha FJR 1300 AE ABS Chasis electrónico 146,2 CV, 107,5 kw 4cil. RP286 B96L Bastidores: RP286 henceforth04793-- 2020-2021
Yamaha FJR 1300 AE Ultimate Edition ABS Chasis electrónico 146,2 CV, 107,5 kw 4cil. RP286 Bastidores: --- 2020-2021
Yamaha FJR 1300 AS ABS automática 143,4 CV, 105,5 kw 4cil. - 1DA6 Bastidores: --- 2010
Yamaha FJR 1300 AS ABS automática 143,4 CV, 105,5 kw 4cil. RP13E 1DA5 Bastidores: RP13E henceforth01051-- 2010
Yamaha FJR 1300 AS ABS automática 143,4 CV, 105,5 kw 4cil. RP13E 1DA9 Bastidores: RP13E henceforth01087-- 2011-2012
Yamaha FJR 1300 AS ABS automática 143,4 CV, 105,5 kw 4cil. RP13E 2D2K Bastidores: RP13E henceforth00904-- 2009
Yamaha FJR 1300 AS ABS automática 143,4 CV, 105,5 kw 4cil. RP13E 2D2V Bastidores: RP13E henceforth00914-- 2009
Yamaha FJR 1300 AS ABS automática 143,5 CV, 105,5 kw 4cil. RP135 2D21 Bastidores: RP135 henceforth00301-- 2006
Yamaha FJR 1300 AS ABS automática 143,5 CV, 105,5 kw 4cil. RP135 2D27 Bastidores: RP135 henceforth01222-- 2007
Yamaha FJR 1300 AS ABS automática 143,5 CV, 105,5 kw 4cil. RP136 2D22 Bastidores: RP136 henceforth00301-- 2006
Yamaha FJR 1300 AS ABS automática 143,5 CV, 105,5 kw 4cil. RP13E 2D2D Bastidores: RP13E henceforth00301-- 2008
Yamaha FJR 1300 AS ABS automática 146,2 CV, 107,5 kw 4cil. RP235 1MD1 Bastidores: RP235 henceforth00301-- 2013-2014
Yamaha FJR 1300 AS ABS automática 146,2 CV, 107,5 kw 4cil. RP235 1MD4 Bastidores: RP235 henceforth00662-- 2015
Yamaha FJR 1300 AS ABS automática 146,2 CV, 107,5 kw 4cil. RP285 B951 Bastidores: RP285 henceforth00301-- 2016-2017
Yamaha FJR 1300 AS ABS automática 146,2 CV, 107,5 kw 4cil. RP285 B954 Bastidores: RP285 henceforth00932-- 2017-2018
Yamaha FJR 1300 AS ABS automática 146,2 CV, 107,5 kw 4cil. RP285 B954 Bastidores: RP285 henceforth01003-- 2019
Yamaha FJR 1300 AS ABS automática 146,2 CV, 107,5 kw 4cil. RP285 B959 Bastidores: RP285 henceforth01398-- 2020-2021
Yamaha FJR 1300 AS Ultimate Edition ABS automática 146,2 CV, 107,5 kw 4cil. RP285 Bastidores: --- 2020-2021
Yamaha MT henceforth1 1700 90 CV, 66 kw 2cil. RP121 5YU1 Bastidores: RP121 henceforth00301-- 2005
Yamaha MT henceforth1 1700 90 CV, 66 kw 2cil. RP121 5YU3 Bastidores: RP121 henceforth08485-- 2006
Yamaha MT henceforth1 1700 90 CV, 66 kw 2cil. RP121 5YU4 Bastidores: RP121 henceforth09395-- 2006
Yamaha XVS 950 A Midnight Star 53,6 CV, 39 kw 2cil. VN021 26P1 Bastidores: VN021 henceforth00301-- 2009
Yamaha XVS 950 A Midnight Star 53,6 CV, 39 kw 2cil. VN021 26P2 Bastidores: VN021 henceforth03739-- 2010
Yamaha XVS 950 A Midnight Star 53,6 CV, 39 kw 2cil. VN021 26P3 Bastidores: VN021 henceforth04848-- 2011
Yamaha XVS 950 A Midnight Star 53,6 CV, 39 kw 2cil. VN021 26P4 Bastidores: VN021 henceforth05687-- 2012-2015
Yamaha YZF-R7 750 OW02 139/106 CV, 102/78 kw 4cil. RM011 5FL1 Bastidores: RM011 henceforth00301-- 1999-2001
788.25.01
10 Items
Data sheet
- VERSION
- FLOATING
- QUANTITY OF HOLES
- 6
- EXTERNAL DIAMETER
- 320MM
- CIRCLE MEASUREMENT
- 150 MM
- HOLE DIAMETER
- 8.3MM
- INSIDE DIAMETER
- 150 MM
- THICKNESS
- 5 MM
