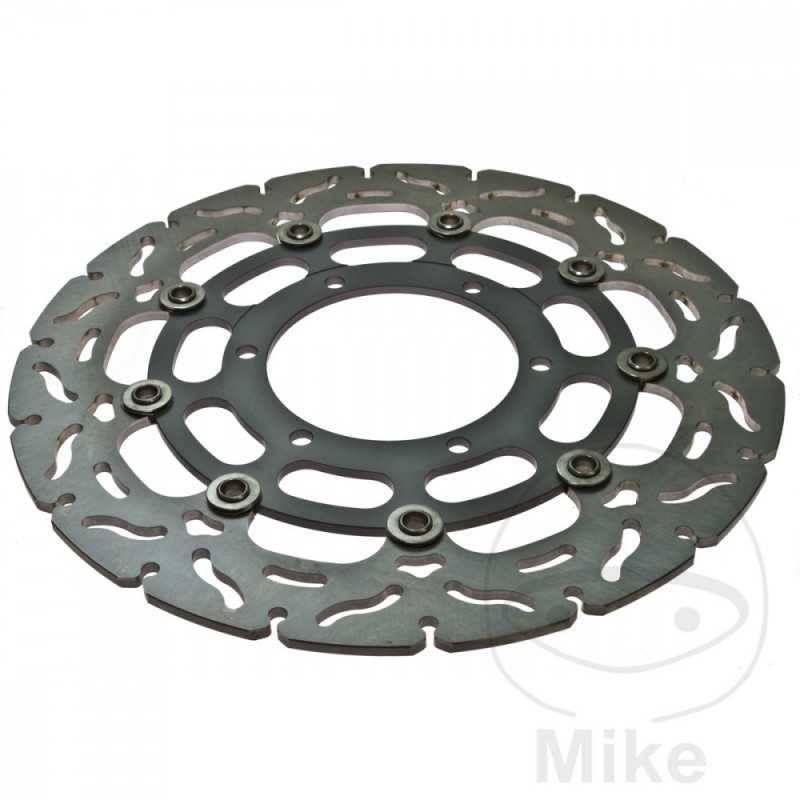

TRW Floating brake disc RACING 788.03.17

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

The floating brake discs have internal rings milled from titanium-colored anodized aluminium.

The floating discs do not rattle, because the high-quality stainless steel floats are held taut by the corrugated discs.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour with grooved brake edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTSIDE DIAMETER: 310MM
INSIDE DIAMETER: 102MM
CIRCLE SIZE: 120 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSX-R 1000 185 CV, 136 kw 4cil. WVCY1111 K9 Bastidores: CY1111 henceforth0100001-CY1111 henceforth0105530 2009
Suzuki GSX-R 1000 185 CV, 136 kw 4cil. WVCY1111 L0 Bastidores: CY1111 henceforth0105531-CY1111 henceforth0107726 2010
Suzuki GSX-R 1000 185 CV, 136 kw 4cil. WVCY1111 L1 Bastidores: CY1111 henceforth0107727-CY1111 henceforth0108997 2011
Suzuki GSX-R 1000 185 CV, 136 kw 4cil. WVCY1111 L2 Bastidores: CY1111 henceforth0108998-CY1111 henceforth0109778 2012
Suzuki GSX-R 1000 185 CV, 136 kw 4cil. WVCY1111 L3 Bastidores: CY1111 henceforth0109781-CY1111 henceforth0110633 2013
Suzuki GSX-R 1000 185 CV, 136 kw 4cil. WVCY1111 L4 Bastidores: CY1111 henceforth0110634-CY1111 henceforth0111554 2014
Suzuki GSX-R 1000 185 CV, 136 kw 4cil. WVCY1111 L5 Bastidores: CY1111 henceforth0111555-- 2015
Suzuki GSX-R 1000 185 CV, 136 kw 4cil. WVCY1111 L6 Bastidores: CY1111-G0100001-- 2016
Suzuki GSX-R 1000 A 30th Anniversary ABS 185 CV, 136 kw 4cil. WVCY1121 L6 Bastidores: --- 2016
Suzuki GSX-R 1000 A ABS 185 CV, 136 kw 4cil. WVCY1121 L5 Bastidores: CY1121 henceforth0100001-- 2015
Suzuki GSX-R 1000 A ABS 185 CV, 136 kw 4cil. WVCY1121 L6 Bastidores: CY1121-G0100001-- 2016
Suzuki GSX-R 1000 A UF ABS 106 CV, 78 kw 4cil. WVCY2121 L5 Bastidores: CY2121 henceforth0100001-- 2015
Suzuki GSX-R 1000 A UF ABS 106 CV, 78 kw 4cil. WVCY2121 L6 Bastidores: CY2121-G0100001-- 2016
Suzuki GSX-R 1000 UF 106 CV, 78 kw 4cil. WVCY2111 K9 Bastidores: CY2111 henceforth0100001-CY2111 henceforth0101291 2009
Suzuki GSX-R 1000 UF 106 CV, 78 kw 4cil. WVCY2111 L0 Bastidores: CY2111 henceforth0101292-CY2111 henceforth0102360 2010
Suzuki GSX-R 1000 UF 106 CV, 78 kw 4cil. WVCY2111 L1 Bastidores: CY2111 henceforth0102361-CY2111 henceforth0102758 2011
Suzuki GSX-R 1000 UF 106 CV, 78 kw 4cil. WVCY2111 L2 Bastidores: CY2111 henceforth0102759-CY2111 henceforth0103265 2012
Suzuki GSX-R 1000 UF 106 CV, 78 kw 4cil. WVCY2111 L3 Bastidores: CY2111 henceforth0103266-CY2111 henceforth0103744 2013
Suzuki GSX-R 1000 UF 106 CV, 78 kw 4cil. WVCY2111 L4 Bastidores: CY2111 henceforth0103745-CY2111 henceforth0103963 2014
Suzuki GSX-R 1000 UF 106 CV, 78 kw 4cil. WVCY2111 L5 Bastidores: CY2111 henceforth0103964-- 2015
Suzuki GSX-R 1000 UF 106 CV, 78 kw 4cil. WVCY2111 L6 Bastidores: CY2111-G0100001-- 2016
Suzuki GSX-R 1000 Z 185 CV, 136 kw 4cil. WVCY1111 L3 Bastidores: CY1111 henceforth0110977-- 2013
Suzuki GSX-R 1000 Z 185 CV, 136 kw 4cil. WVCY1111 L4 Bastidores: CY1111 henceforth0110661-CY1111 henceforth0111554 2014
Suzuki GSX-R 1000 Z 25th Anniversary 185 CV, 136 kw 4cil. WVCY1111 L0 Bastidores: CY1111 henceforth0105531-CY1111 henceforth0107726 2010
Suzuki GSX-R 1000 ZUF 106 CV, 78 kw 4cil. WVCY2111 L3 Bastidores: CY2111 henceforth0103267-- 2013
Suzuki GSX-R 1000 ZUF 106 CV, 78 kw 4cil. WVCY2111 L4 Bastidores: CY2111 henceforth0103745-CY2111 henceforth0103963 2014
Suzuki GSX-R 1000 ZUF 25th Anniversary 106 CV, 78 kw 4cil. WVCY2111 L0 Bastidores: CY2111 henceforth0101292-CY2111 henceforth0102360 2010
Suzuki GSX-R 600 125 CV, 92 kw 4cil. C31111 L1 Bastidores: C31111 henceforth0100001-C31111 henceforth0103028 2011
Suzuki GSX-R 600 125 CV, 92 kw 4cil. C31111 L2 Bastidores: C31111 henceforth0103029-C31111 henceforth0103223 2012
Suzuki GSX-R 600 125 CV, 92 kw 4cil. C31111 L3 Bastidores: C31111 henceforth0103224-C31111 henceforth0103520 2013
Suzuki GSX-R 600 125 CV, 92 kw 4cil. C31111 L4 Bastidores: C31111 henceforth0103521-C31111 henceforth0103951 2014
Suzuki GSX-R 600 125 CV, 92 kw 4cil. C31111 L5 Bastidores: C31111 henceforth0103952-C31111 henceforth0109999 2015
Suzuki GSX-R 600 125 CV, 92 kw 4cil. WVCV1111 K8 Bastidores: CV1111 henceforth0100001-CV1111 henceforth0107998 2008
Suzuki GSX-R 600 125 CV, 92 kw 4cil. WVCV1111 K9 Bastidores: CV1111 henceforth0107999-CV1111 henceforth0110823 2009
Suzuki GSX-R 600 125 CV, 92 kw 4cil. WVCV1111 L0 Bastidores: CV1111 henceforth0110824-- 2010
Suzuki GSX-R 600 126 CV, 92,5 kw 4cil. C31111 L6 Bastidores: C31111-G0100001-C31111-G0109999 2016
Suzuki GSX-R 600 30th Anniversary 126 CV, 92,5 kw 4cil. C31111 L6 Bastidores: C31111-G0100001-C31111-G0109999 2016
Suzuki GSX-R 600 U2 106 CV 78 kw 4cil. WVCV2111 K8 Bastidores: CV2111 henceforth0100001-CV2111 henceforth0101187 2008
Suzuki GSX-R 600 U3 34 CV, 25 kw 4cil. WVCV3111 K8 Bastidores: CV3111 henceforth0100001-CV3111 henceforth0100745 2008
Suzuki GSX-R 600 UE 34 CV, 25 kw 4cil. C33111 L1 Bastidores: C33111 henceforth0100001-C33111 henceforth0100100 2011
Suzuki GSX-R 600 UE 34 CV, 25 kw 4cil. C33111 L2 Bastidores: C33111 henceforth0100101-- 2012
Suzuki GSX-R 600 UE 34 CV, 25 kw 4cil. C33111 L3 Bastidores: C33111 henceforth0100101-- 2013
Suzuki GSX-R 600 UE 34 CV, 25 kw 4cil. WVCV3111 K9 Bastidores: CV3111 henceforth0100746-CV3111 henceforth0100945 2009
Suzuki GSX-R 600 UE 34 CV, 25 kw 4cil. WVCV3111 L0 Bastidores: CV3111 henceforth0100946-- 2010
Suzuki GSX-R 600 UF 106 CV 78 kw 4cil. C32111 L1 Bastidores: C32111 henceforth0100001-C32111 henceforth0100455 2011
Suzuki GSX-R 600 UF 106 CV 78 kw 4cil. C32111 L2 Bastidores: C32111 henceforth0100456-C32111 henceforth0100535 2012
Suzuki GSX-R 600 UF 106 CV 78 kw 4cil. C32111 L3 Bastidores: C32111 henceforth0100536-C32111 henceforth0100565 2013
Suzuki GSX-R 600 UF 106 CV 78 kw 4cil. C32111 L4 Bastidores: C32111 henceforth0100566-C32111 henceforth0100653 2014
Suzuki GSX-R 600 UF 106 CV 78 kw 4cil. C32111 L5 Bastidores: C32111 henceforth0100654-C32111 henceforth0109999 2015
Suzuki GSX-R 600 UF 106 CV 78 kw 4cil. C32111 L6 Bastidores: C32111-G0100001-C32111-G0109999 2016
Suzuki GSX-R 600 UF 106 CV 78 kw 4cil. WVCV2111 K9 Bastidores: CV2111 henceforth0101188-CV2111 henceforth0102088 2009
Suzuki GSX-R 600 UF 106 CV 78 kw 4cil. WVCV2111 L0 Bastidores: CV2111 henceforth0102089-- 2010
Suzuki GSX-R 600 UF Anniversary 106 CV 78 kw 4cil. C32111 L6 Bastidores: C32111-G0100001-C32111-G0109999 2016
Suzuki GSX-R 750 150 CV, 110 kw 4cil. C41111 L1 Bastidores: C41111 henceforth0100001-C41111 henceforth0103112 2011
Suzuki GSX-R 750 150 CV, 110 kw 4cil. C41111 L2 Bastidores: C41111 henceforth0103113-C41111 henceforth0103291 2012
Suzuki GSX-R 750 150 CV, 110 kw 4cil. C41111 L3 Bastidores: C41111 henceforth0103292-C41111 henceforth0103629 2013
Suzuki GSX-R 750 150 CV, 110 kw 4cil. C41111 L4 Bastidores: C41111 henceforth0103630-C41111 henceforth0104138 2014
Suzuki GSX-R 750 150 CV, 110 kw 4cil. C41111 L5 Bastidores: --- 2015
Suzuki GSX-R 750 150 CV, 110 kw 4cil. C41111 L6 Bastidores: C41111-G0100001-C41111-G0109999 2016
Suzuki GSX-R 750 150 CV, 110 kw 4cil. C41111 L7 Bastidores: C41111-H0100001-C41111-H0109999 2017-2018
Suzuki GSX-R 750 150 CV, 110 kw 4cil. WVCW1111 K8 Bastidores: CW1111 henceforth0100001-CW1111 henceforth0108226 2008
Suzuki GSX-R 750 150 CV, 110 kw 4cil. WVCW1111 K9 Bastidores: CW1111 henceforth0108248-CW1111 henceforth0110040 2009
Suzuki GSX-R 750 150 CV, 110 kw 4cil. WVCW1111 L0 Bastidores: CW1111 henceforth0110041-- 2010
Suzuki GSX-R 750 30th Anniversary 150 CV, 110 kw 4cil. C41111 L6 Bastidores: C41111-G0000001-C41111-G0109999 2016
Suzuki GSX-R 750 U2 106 CV, 78 kw 4cil. WVCW2111 K8 Bastidores: CW2111 henceforth0100001-CW2111 henceforth0101397 2008
Suzuki GSX-R 750 UF 106 CV, 78 kw 4cil. C42111 L1 Bastidores: C42111 henceforth0100001-C42111 henceforth0100565 2011
Suzuki GSX-R 750 UF 106 CV, 78 kw 4cil. C42111 L2 Bastidores: C42111 henceforth0100566-C42111 henceforth0100717 2012
Suzuki GSX-R 750 UF 106 CV, 78 kw 4cil. C42111 L3 Bastidores: C42111 henceforth0100718-C42111 henceforth0100779 2013
Suzuki GSX-R 750 UF 106 CV, 78 kw 4cil. C42111 L4 Bastidores: C42111 henceforth0100780-C42111 henceforth0100837 2014
Suzuki GSX-R 750 UF 106 CV, 78 kw 4cil. C42111 L5 Bastidores: --- 2015-2016
Suzuki GSX-R 750 UF 106 CV, 78 kw 4cil. WVCW2111 K9 Bastidores: CW2111 henceforth0101398-CW2111 henceforth0102299 2009
Suzuki GSX-R 750 UF 106 CV, 78 kw 4cil. WVCW2111 L0 Bastidores: CW2111 henceforth0102300-- 2010
