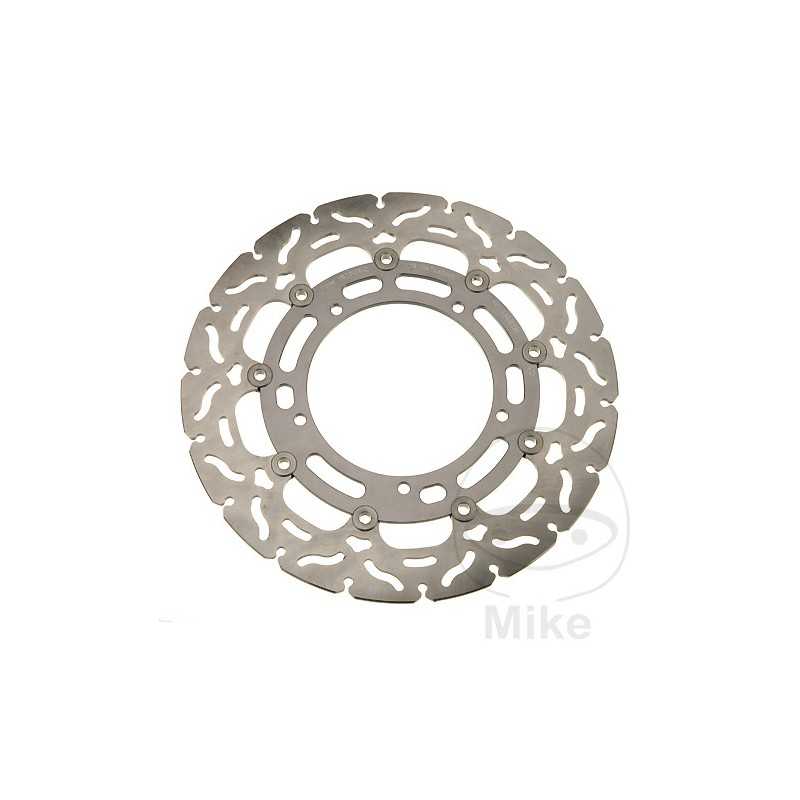

TRW Floating brake disc RACING 788.02.48

All brake discs have an ABE, also for scooters.

Discs are low wear and have 30% longer life compared to some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs, made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature build-up and release allows for a consistent pressure point.

The floating brake discs have internal rings milled from titanium-colored anodized aluminium.

The floating discs do not rattle, because the high-quality stainless steel floats are held taut by the corrugated discs.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour with grooved brake edge

- In rigid and floating variants

- Coordinated front to rear axle design
OUTSIDE DIAMETER: 310MM
INNER DIAMETER: 100MM
CIRCLE SIZE: 120 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.3 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSX-R 1000 178 CV, 131 kw 4cil. WVB61111 K5 Bastidores: B61111 henceforth0100001-B61111 henceforth0107743 2005
Suzuki GSX-R 1000 178 CV, 131 kw 4cil. WVB61111 K6 Bastidores: B61111 henceforth0107744-- 2006
Suzuki GSX-R 1000 185 CV, 136 kw 4cil. WVCL1111 K7 Bastidores: CL1111 henceforth0100001-CL1111 henceforth0113727 2007
Suzuki GSX-R 1000 185 CV, 136 kw 4cil. WVCL1111 K8 Bastidores: CL1111 henceforth0113728-- 2008
Suzuki GSX-R 1000 U2 106 CV, 78 kw 4cil. WVB62111 K5 Bastidores: B62111 henceforth0100001-B62111 henceforth0101357 2005
Suzuki GSX-R 1000 U2 106 CV, 78 kw 4cil. WVB62111 K6 Bastidores: B62111 henceforth0101358-- 2006
Suzuki GSX-R 1000 U2 106 CV, 78 kw 4cil. WVCL2111 K7 Bastidores: CL2111 henceforth0100001-CL2111 henceforth0102041 2007
Suzuki GSX-R 1000 U2 106 CV, 78 kw 4cil. WVCL2111 K8 Bastidores: CL2111 henceforth0102042-- 2008
Suzuki GSX-R 600 125 CV, 92 kw 4cil. WVCE1111 K6 Bastidores: CE1111 henceforth0100001-CE1111 henceforth0111177 2006
Suzuki GSX-R 600 125 CV, 92 kw 4cil. WVCE1111 K7 Bastidores: CE1111 henceforth0111178-- 2007
Suzuki GSX-R 600 U2 106 CV 78 kw 4cil. WVCE2111 K6 Bastidores: CE2111 henceforth0100001-CE2111 henceforth0100283 2006
Suzuki GSX-R 600 U2 106 CV 78 kw 4cil. WVCE2111 K7 Bastidores: CE2111 henceforth0100284-- 2007
Suzuki GSX-R 600 U3 34 CV, 25 kw 4cil. WVCE3111 K6 Bastidores: CE3111 henceforth0100001-CE3111 henceforth0100283 2006
Suzuki GSX-R 600 U3 34 CV, 25 kw 4cil. WVCE3111 K7 Bastidores: CE3111 henceforth0100284-- 2007
Suzuki GSX-R 750 150 CV, 110 kw 4cil. WVCF1111 K6 Bastidores: CF1111 henceforth0100001-CF1111 henceforth0106999 2006
Suzuki GSX-R 750 150 CV, 110 kw 4cil. WVCF1111 K7 Bastidores: CF1111 henceforth0107000-- 2007
Suzuki GSX-R 750 U2 106 CV, 78 kw 4cil. WVCF2111 K6 Bastidores: CF2111 henceforth0100001-CF2111 henceforth0100938 2006
Suzuki GSX-R 750 U2 106 CV, 78 kw 4cil. WVCF2111 K7 Bastidores: CF2111 henceforth0100939-- 2007
