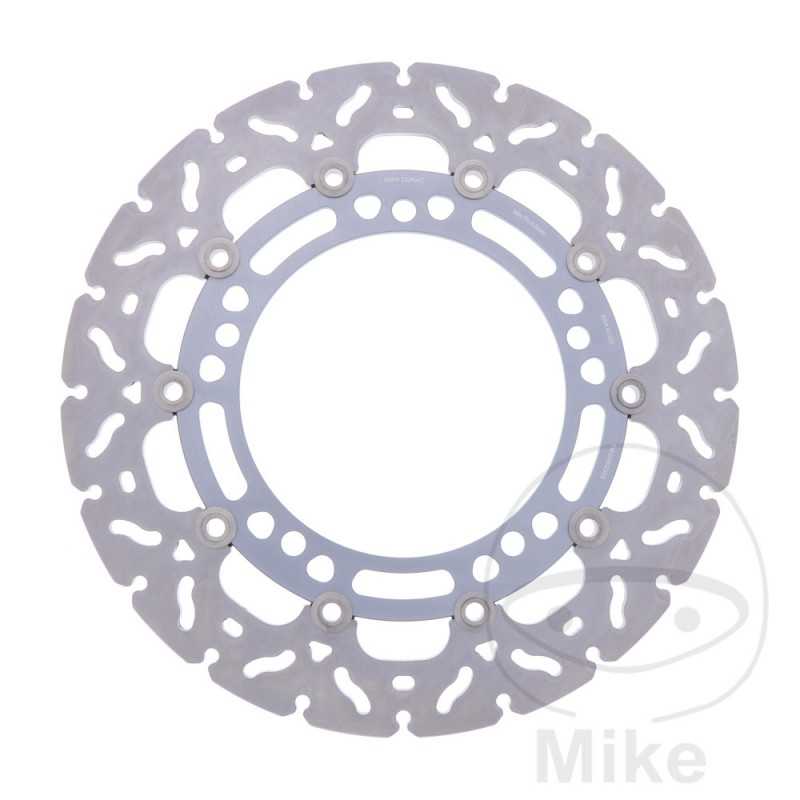

TRW Floating brake disc RACING 788.02.32

All brake discs have an ABE, also for scooters.



The discs are low-wear and have a service life that is up to 30% longer than some comparable replacement parts.



All variants: Allround, RAC and EC-offroad discs, are made of hardened steel and extremely stable in their dimensions.



The precise grinding of the surface (thickness deviation of 2 / 100mm) prevents vibrations and improves the adaptation of the coatings.



A uniform build-up and decrease in temperature allows for a constant pressure point.



The floating brake discs have aluminum-milled titanium-colored anodized inner rings.

Floating panels do not vibrate because high quality stainless steel floats are held in tension with corrugated washers.



A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.



Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc



- Notched outer contour with grooved braking edge

- In rigid and floating variants

- Coordinated design from front to rear axle
OUTSIDE DIAMETER: 300MM
INSIDE DIAMETER: 147.5MM
CIRCLE SIZE: 162 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.5 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki Ninja 650 K ABS 48 CV, 35 kw 2cil. EX650KKDA HF Bastidores: EX650KKDA henceforth0131-EX650KKDA henceforth8910 2017
Kawasaki Ninja 650 K ABS 48 CV, 35 kw 2cil. EX650KKDA JF Bastidores: EX650KKDA henceforth8911-EX650KKDA-28350 2018
Kawasaki Ninja 650 K ABS 48 CV, 35 kw 2cil. EX650KKDA KF Bastidores: EX650KKDA-28351-EX650KKDA-99999 2019
Kawasaki Ninja 650 K ABS 68 CV, 50 kw 2cil. EX650KKDA HF Bastidores: EX650KKDA henceforth0131-EX650KKDA henceforth8910 2017
Kawasaki Ninja 650 K ABS 68 CV, 50 kw 2cil. EX650KKDA JF Bastidores: EX650KKDA henceforth8911-EX650KKDA-28350 2018
Kawasaki Ninja 650 K ABS 68 CV, 50 kw 2cil. EX650KKDA KF Bastidores: EX650KKDA-28351-EX650KKDA-99999 2019
Kawasaki Ninja 650 K KRT Edition ABS 48 CV, 35 kw 2cil. EX650KKDA HFA Bastidores: EX650KKDA henceforth0131-EX650KKDA henceforth8910 2017
Kawasaki Ninja 650 K KRT Edition ABS 48 CV, 35 kw 2cil. EX650KKDA JFA Bastidores: EX650KKDA henceforth8911-EX650KKDA-28350 2018
Kawasaki Ninja 650 K KRT Edition ABS 48 CV, 35 kw 2cil. EX650KKDA KFA Bastidores: EX650KKDA-28351-EX650KKDA-99999 2019
Kawasaki Ninja 650 K KRT Edition ABS 68 CV, 50 kw 2cil. EX650KKDA HFA Bastidores: EX650KKDA henceforth0131-EX650KKDA henceforth8910 2017
Kawasaki Ninja 650 K KRT Edition ABS 68 CV, 50 kw 2cil. EX650KKDA JFA Bastidores: EX650KKDA henceforth8911-EX650KKDA-28350 2018
Kawasaki Ninja 650 K KRT Edition ABS 68 CV, 50 kw 2cil. EX650KKDA KFA Bastidores: EX650KKDA-28351-EX650KKDA-99999 2019
Kawasaki Ninja 650 M ABS 48 CV, 35 kw 2cil. EX650MMDA LF Bastidores: EX650MMDA henceforth0151-EX650MMDA-99999 2020
Kawasaki Ninja 650 M ABS 48 CV, 35 kw 2cil. EX650MMDA MMFAN Bastidores: EX650MMDA-25441-EX650MMDA-47850 2021
Kawasaki Ninja 650 M ABS 48 CV, 35 kw 2cil. EX650MMDA MMFNN Bastidores: EX650MMDA-25441-EX650MMDA-47850 2021
Kawasaki Ninja 650 M ABS 48 CV, 35 kw 2cil. EX650MMDA MNFAN Bastidores: EX650MMDA-47851-EX650MMDA-99999 2022
Kawasaki Ninja 650 M ABS 48 CV, 35 kw 2cil. EX650MMDA MNFNN Bastidores: EX650MMDA-47851-EX650MMDA-99999 2022
Kawasaki Ninja 650 M ABS 68 CV, 50 kw 2cil. EX650MMDA LF Bastidores: EX650MMDA henceforth0151-EX650MMDA-99999 2020
Kawasaki Ninja 650 M ABS 68 CV, 50 kw 2cil. EX650MMDA MMFAN Bastidores: EX650MMDA-25441-EX650MMDA-47850 2021
Kawasaki Ninja 650 M ABS 68 CV, 50 kw 2cil. EX650MMDA MMFNN Bastidores: EX650MMDA-25441-EX650MMDA-47850 2021
Kawasaki Ninja 650 M ABS 68 CV, 50 kw 2cil. EX650MMDA MNFAN Bastidores: EX650MMDA-47851-EX650MMDA-99999 2022
Kawasaki Ninja 650 M ABS 68 CV, 50 kw 2cil. EX650MMDA MNFNN Bastidores: EX650MMDA-47851-EX650MMDA-99999 2022
Kawasaki Ninja 650 M KRT Edition ABS 48 CV, 35 kw 2cil. EX650MMDA LFA Bastidores: EX650MMDA henceforth0151-EX650MMDA-99999 2020
Kawasaki Ninja 650 M KRT Edition ABS 68 CV, 50 kw 2cil. EX650MMDA LFA Bastidores: EX650MMDA henceforth0151-EX650MMDA-99999 2020
Kawasaki Z 650 H ABS 48 CV, 35 kw 4cil. ER650HHDA HF Bastidores: ER650HHDA henceforth0151-ER650HHDA-15290 2017
Kawasaki Z 650 H ABS 48 CV, 35 kw 4cil. ER650HHDA JF Bastidores: ER650HHDA-15291-ER650HHDA-32940 2018
Kawasaki Z 650 H ABS 48 CV, 35 kw 4cil. ER650HHDA KF Bastidores: ER650HHDA-32941-ER650HHDA-99999 2019
Kawasaki Z 650 H ABS 68 CV, 50,2 kw 4cil. ER650HHDA HF Bastidores: ER650HHDA henceforth0151-ER650HHDA-15290 2017
Kawasaki Z 650 H ABS 68 CV, 50,2 kw 4cil. ER650HHDA JF Bastidores: ER650HHDA-15291-ER650HHDA-32940 2018
Kawasaki Z 650 H ABS 68 CV, 50,2 kw 4cil. ER650HHDA KF Bastidores: ER650HHDA-32941-ER650HHDA-99999 2019
Kawasaki Z 650 K ABS 48 CV, 35 kw 4cil. ER650KKDA LF Bastidores: ER650KKD-A00121-ER650KKDA-99999 2020
Kawasaki Z 650 K ABS 48 CV, 35 kw 4cil. ER650KKDA LFA Bastidores: ER650KKD-A00121-ER650KKDA-99999 2020
Kawasaki Z 650 K ABS 68 CV, 50,2 kw 4cil. ER650KKDA LF Bastidores: ER650KKD-A00121-ER650KKDA-99999 2020
Kawasaki Z 650 K ABS 68 CV, 50,2 kw 4cil. ER650KKDA LFA Bastidores: ER650KKD-A00121-ER650KKDA-99999 2020
Kawasaki Z 900 B ABS 125 CV, 92 kw 4cil. ZR900BBA JF Bastidores: ZR900BBA henceforth00001-ZR900BBA henceforth25000 2018
Kawasaki Z 900 B ABS 125 CV, 92 kw 4cil. ZR900BBA KF Bastidores: ZR900BBA henceforth25001-ZR900BBA-999999 2019
Kawasaki Z 900 B ABS 125 CV, 92 kw 4cil. ZR900BBDA HF Bastidores: ZR900BBDA henceforth0111-- 2017
Kawasaki Z 900 D ABS 95 CV, 70 kw 4cil. ZR900DDA JF Bastidores: ZR900DDA henceforth00001-ZR900DDA henceforth10000 2018
Kawasaki Z 900 D ABS 95 CV, 70 kw 4cil. ZR900DDA KF Bastidores: ZR900DDA henceforth10001-ZR900DDA-999999 2019
Kawasaki Z 900 D ABS 70 kw (A2) 48 CV, 35 kw 4cil. ZR900DDA JF Bastidores: ZR900DDA henceforth00001-ZR900DDA henceforth10000 2018
Kawasaki Z 900 D ABS 70 kw (A2) 48 CV, 35 kw 4cil. ZR900DDA KF Bastidores: ZR900DDA henceforth10001-ZR900DDA-999999 2019
Kawasaki Z 900 F ABS 125 CV, 92 kw 4cil. ZR900FFA LF Bastidores: ZR900FFA henceforth20001-ZR900FFA-999999 2020
Kawasaki Z 900 H ABS 70 kw (A2) 48 CV, 35 kw 4cil. ZR900HHA LF Bastidores: ZR900HHA henceforth00001-ZR900HHA-999999 2020
Kawasaki Z 900 H ABS 70 kw (A2) 95 CV, 70 kw 4cil. ZR900HHA LF Bastidores: ZR900HHA henceforth00001-ZR900HHA-999999 2020
Kawasaki Z 900 RS ABS 111 CV, 82 kw 4cil. ZR900CCA CJF Bastidores: ZR900CCA henceforth00001-ZR900CCA henceforth20000 2018
Kawasaki Z 900 RS ABS 111 CV, 82 kw 4cil. ZR900CCA CJFA Bastidores: ZR900CCA henceforth00001-ZR900CCA henceforth20000 2018
Kawasaki Z 900 RS ABS 111 CV, 82 kw 4cil. ZR900CCA CJFB Bastidores: ZR900CCA henceforth00001-ZR900CCA henceforth20000 2018
Kawasaki Z 900 RS ABS 111 CV, 82 kw 4cil. ZR900CCA CKF Bastidores: ZR900CCA henceforth20001-ZR900CCA henceforth37000 2019
Kawasaki Z 900 RS ABS 111 CV, 82 kw 4cil. ZR900CCA CKFA Bastidores: ZR900CCA henceforth20001-ZR900CCA henceforth37000 2019
Kawasaki Z 900 RS ABS 111 CV, 82 kw 4cil. ZR900CCA CKFB Bastidores: ZR900CCA henceforth20001-ZR900CCA henceforth37000 2019
Kawasaki Z 900 RS ABS 111 CV, 82 kw 4cil. ZR900CCA CLF Bastidores: ZR900CCA henceforth37001-ZR900CCA-999999 2020
Kawasaki Z 900 RS ABS 111 CV, 82 kw 4cil. ZR900CCA CLFA Bastidores: ZR900CCA henceforth37001-ZR900CCA-999999 2020
Kawasaki Z 900 RS ABS 111 CV, 82 kw 4cil. ZR900CCA CLFB Bastidores: ZR900CCA henceforth37001-ZR900CCA-999999 2020
Kawasaki Z 900 RS Cafe ABS 111 CV, 82 kw 4cil. ZR900CEA EJF Bastidores: ZR900CEA henceforth00001-ZR900CEA henceforth20000 2018
Kawasaki Z 900 RS Cafe ABS 111 CV, 82 kw 4cil. ZR900CEA EKF Bastidores: ZR900CEA henceforth20001-ZR900CEA henceforth37000 2019
Kawasaki Z 900 RS Cafe ABS 111 CV, 82 kw 4cil. ZR900CEA ELFA Bastidores: ZR900CEA henceforth37001-ZR900CEA-999999 2020
Kawasaki Z 900 RS Cafe ABS 111 CV, 82 kw 4cil. ZR900KLA LMFNN Bastidores: ZR900KLA henceforth00001-ZR900KLA-999999 2021
