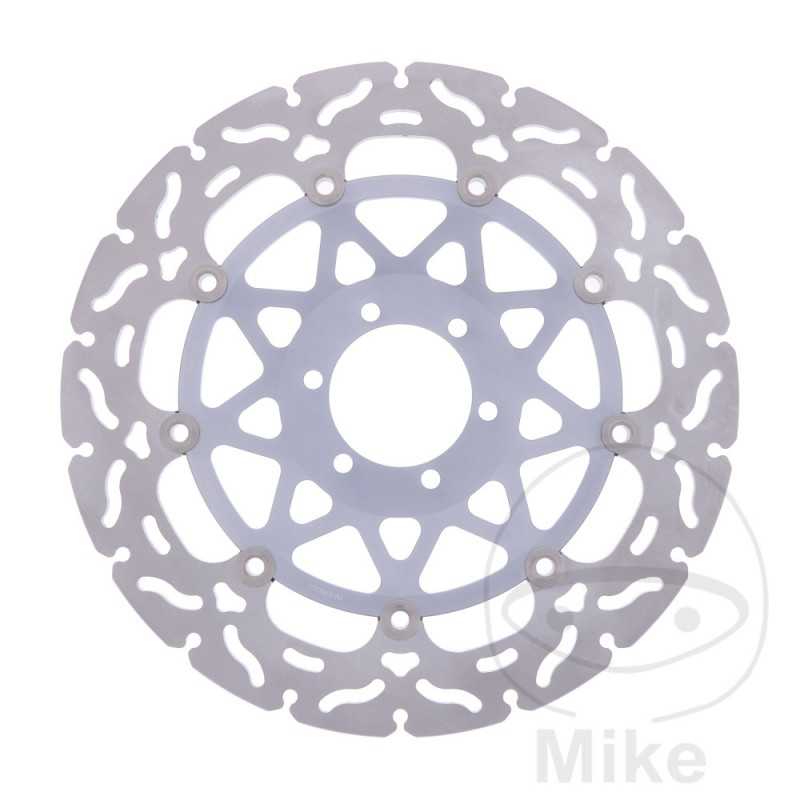

TRW Floating brake disc RACING 788.02.31

All brake discs have an ABE, also for scooters.



The discs are low-wear and have a service life that is up to 30% longer than some comparable replacement parts.



All variants: Allround, RAC and EC-offroad discs, are made of hardened steel and extremely stable in their dimensions.



The precise grinding of the surface (thickness deviation of 2 / 100mm) prevents vibrations and improves the adaptation of the coatings.



A uniform build-up and decrease in temperature allows for a constant pressure point.



The floating brake discs have aluminum-milled titanium-colored anodized inner rings.

Floating panels do not vibrate because high quality stainless steel floats are held in tension with corrugated washers.



A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.



Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc



- Notched outer contour with grooved braking edge

- In rigid and floating variants

- Coordinated design from front to rear axle
OUTSIDE DIAMETER: 305MM
INSIDE DIAMETER: 64MM
CIRCLE SIZE: 80 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.5 MM
thickness: 5mm
FILLING: 10MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM Supermoto 950 LC8 34 CV, 25 kw 2cil. - Bastidores: --- 2006-2008
KTM Supermoto 950 LC8 98 CV, 72 kw 2cil. - Bastidores: --- 2006-2008
KTM Supermoto 950 R LC8 34 CV, 25 kw 2cil. - Bastidores: --- 2007-2008
KTM Supermoto 950 R LC8 98 CV, 72 kw 2cil. - Bastidores: --- 2007-2008
KTM Supermoto 990 LC8 115 CV, 85 kw 2cil. - Bastidores: --- 2009-2010
KTM Supermoto 990 LC8 98 CV, 72 kw 2cil. - Bastidores: --- 2009-2010
KTM Supermoto 990 R LC8 115 CV, 85 kw 2cil. - Bastidores: --- 2009-2011
KTM Supermoto 990 R LC8 98 CV, 72 kw 2cil. - Bastidores: --- 2009-2011
KTM Supermoto 990 R LC8 ABS 115 CV, 85 kw 2cil. - Bastidores: --- 2012-2013
KTM Supermoto 990 R LC8 ABS 98 CV, 72 kw 2cil. - Bastidores: --- 2012-2013
KTM Supermoto 990 T LC8 115 CV, 85 kw 2cil. - Bastidores: --- 2009-2011
KTM Supermoto 990 T LC8 98 CV, 72 kw 2cil. - Bastidores: --- 2009-2011
KTM Supermoto 990 T LC8 ABS 115 CV, 85 kw 2cil. - Bastidores: --- 2011-2013
KTM Supermoto 990 T LC8 ABS 98 CV, 72 kw 2cil. - Bastidores: --- 2011-2013
