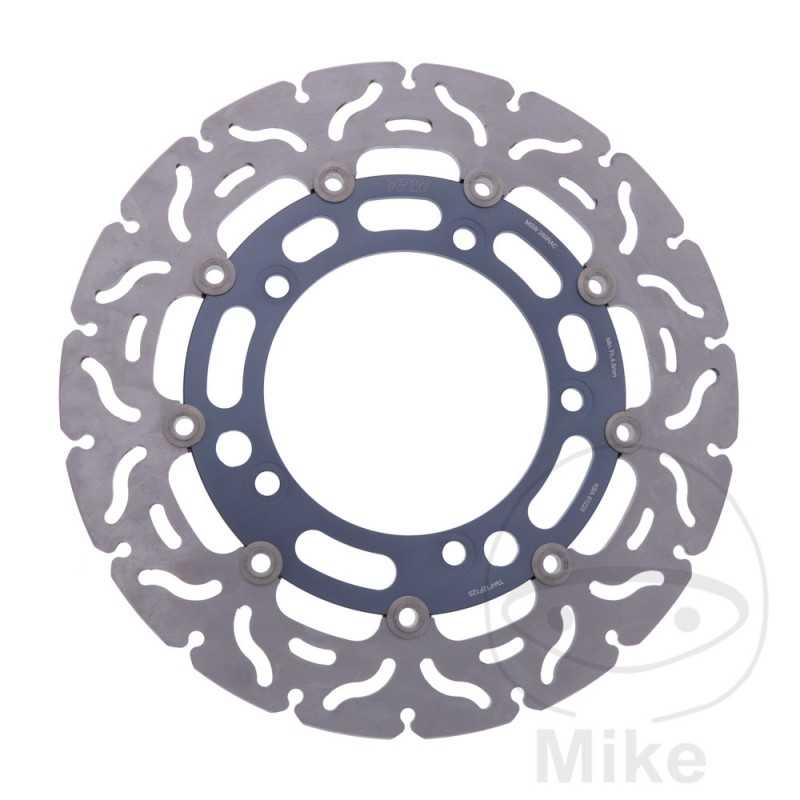

TRW Floating brake disc RACING 788.01.58

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

Floating brake discs have titanium anodized aluminum inner rings.

Floating windows don't rattle because high-quality stainless steel floats are held in tension by corrugated discs.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour and grooved brake rim

- In rigid and floating variants.

- Front to rear axle coordinated design.
OUTER DIAMETER: 290MM
INSIDE DIAMETER: 121.5MM
CIRCLE SIZE: 142 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.3 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSF 650 A Bandit ABS 78 CV, 57 kw 4cil. WVB51141 K5 Bastidores: B51411 henceforth0100001-B51141 henceforth0102288 2005
Suzuki GSF 650 A Bandit ABS 78 CV, 57 kw 4cil. WVB51141 K6 Bastidores: B51141 henceforth0102289-- 2006
Suzuki GSF 650 SA Bandit ABS 78 CV, 57 kw 4cil. WVB51131 K5 Bastidores: B51131 henceforth0100001-B51131 henceforth0104939 2005
Suzuki GSF 650 SA Bandit ABS 78 CV, 57 kw 4cil. WVB51131 K6 Bastidores: B51131 henceforth0104940-- 2006
Suzuki GSF 650 SUA Bandit ABS 34 CV, 25 kw 4cil. WVB52131 K5 Bastidores: B52131 henceforth0100001-B52131 henceforth0100040 2005
Suzuki GSF 650 SUA Bandit ABS 34 CV, 25 kw 4cil. WVB52131 K6 Bastidores: B52131 henceforth0100041-- 2006
Suzuki GSF 650 UA Bandit ABS 34 CV, 25 kw 4cil. WVB52141 K5 Bastidores: B52141 henceforth0100001-B52141 henceforth0100050 2005
Suzuki GSF 650 UA Bandit ABS 34 CV, 25 kw 4cil. WVB52141 K6 Bastidores: B52141 henceforth0100051-- 2006
Suzuki SFV 650 A Gladius ABS 72 CV, 53 kw 2cil. WVCX1121 L1 Bastidores: CX1121 henceforth0103708-CX1121 henceforth0106215 2011
Suzuki SFV 650 A Gladius ABS 72 CV, 53 kw 2cil. WVCX1121 L2 Bastidores: CX1121 henceforth0106216-CX1121 henceforth0107863 2012
Suzuki SFV 650 A Gladius ABS 72 CV, 53 kw 2cil. WVCX1121 L3 Bastidores: CX1121 henceforth0107864-CX1121 henceforth0110077 2013
Suzuki SFV 650 A Gladius ABS 72 CV, 53 kw 2cil. WVCX1121 L4 Bastidores: CX1121 henceforth0110078-CX1121 henceforth0110099 2014
Suzuki SFV 650 A Gladius ABS 72 CV, 53 kw 2cil. WVCX1121 L5 Bastidores: CX1121 henceforth0110100-- 2015-2016
Suzuki SFV 650 A Gladius ABS 72 CV, 53 kw 2cil. WVCX1122 K9 Bastidores: CX1122 henceforth0100001-CX1122 henceforth0101932 2009
Suzuki SFV 650 A Gladius ABS 72 CV, 53 kw 2cil. WVCX1122 L0 Bastidores: CX1122 henceforth0101933-- 2010
Suzuki SFV 650 AUE Gladius ABS 48 CV, 35 kw 2cil. WVCX2121 L3 Bastidores: CX2121 henceforth0100295-CX2121 henceforth0100425 2013
Suzuki SFV 650 AUE Gladius ABS 48 CV, 35 kw 2cil. WVCX2121 L4 Bastidores: CX2121 henceforth0100426-CX2121 henceforth0100430 2014
Suzuki SFV 650 AUE Gladius ABS 48 CV, 35 kw 2cil. WVCX2121 L5 Bastidores: CX2121 henceforth0100431-- 2015-2016
Suzuki SFV 650 Gladius 72 CV, 53 kw 2cil. WVCX1111 K9 Bastidores: CX1111 henceforth0100001-CX1111 henceforth0107132 2009
Suzuki SFV 650 Gladius 72 CV, 53 kw 2cil. WVCX1111 L0 Bastidores: CX1111 henceforth0107133-CX1111 henceforth0108641 2010
Suzuki SFV 650 Gladius 72 CV, 53 kw 2cil. WVCX1111 L1 Bastidores: CX1111 henceforth0108642-CX1111 henceforth0110838 2011
Suzuki SFV 650 Gladius 72 CV, 53 kw 2cil. WVCX1111 L2 Bastidores: CX1111 henceforth0110839-CX1111 henceforth0112027 2012
Suzuki SFV 650 Gladius 72 CV, 53 kw 2cil. WVCX1111 L3 Bastidores: CX1111 henceforth0112028-CX1111 henceforth0113265 2013
Suzuki SFV 650 Gladius 72 CV, 53 kw 2cil. WVCX1111 L4 Bastidores: CX1111 henceforth0113266-CX1111 henceforth0114655 2014
Suzuki SFV 650 Gladius 72 CV, 53 kw 2cil. WVCX1111 L5 Bastidores: CX1111 henceforth0114656-- 2015-2016
Suzuki SFV 650 U Gladius 34 CV, 25 kw 2cil. WVCX2111 K9 Bastidores: CX2111 henceforth0100001-CX2111 henceforth0102965 2009
Suzuki SFV 650 U Gladius 34 CV, 25 kw 2cil. WVCX2111 L0 Bastidores: CX2111 henceforth0102966-CX2111 henceforth0104622 2010
Suzuki SFV 650 U Gladius 34 CV, 25 kw 2cil. WVCX2111 L1 Bastidores: CX2111 henceforth0104623-- 2011
Suzuki SFV 650 U Gladius 34 CV, 25 kw 2cil. WVCX2111 L2 Bastidores: CX2111 henceforth0104623-- 2012
Suzuki SFV 650 U Gladius 48 CV, 35 kw 2cil. WVCX2111 L3 Bastidores: CX2111 henceforth0104623-- 2013
Suzuki SFV 650 U Gladius 48 CV, 35 kw 2cil. WVCX2111 L4 Bastidores: CX2111 henceforth0104623-- 2014
Suzuki SFV 650 U Gladius 48 CV, 35 kw 2cil. WVCX2111 L5 Bastidores: CX2111 henceforth0104623-- 2015-2016
Suzuki SFV 650 UA Gladius ABS 34 CV, 25 kw 2cil. WVCX2121 K9 Bastidores: CX2121 henceforth0100001-CX2121 henceforth0100060 2009
Suzuki SFV 650 UA Gladius ABS 34 CV, 25 kw 2cil. WVCX2121 L0 Bastidores: CX2121 henceforth0100061-CX2121 henceforth0100180 2010
Suzuki SFV 650 UA Gladius ABS 34 CV, 25 kw 2cil. WVCX2121 L1 Bastidores: CX2121 henceforth0100181-CX2121 henceforth0100280 2011
Suzuki SFV 650 UA Gladius ABS 34 CV, 25 kw 2cil. WVCX2121 L2 Bastidores: CX2121 henceforth0100281-CX2121 henceforth0100294 2012
Suzuki SV 650 A ABS 72 CV, 53 kw 2cil. WVBY1131 K7 Bastidores: BY1131 henceforth0100001-BY1131 henceforth0100592 2007
Suzuki SV 650 A ABS 72 CV, 53 kw 2cil. WVBY1131 K8 Bastidores: BY1131 henceforth0100593-BY1131 henceforth0100666 2008
Suzuki SV 650 A ABS 72 CV, 53 kw 2cil. WVBY1131 K9 Bastidores: BY1131 henceforth0100667-- 2009
Suzuki SV 650 A ABS 73 CV, 54 kw 2cil. CX163B M2 Bastidores: CX163B-N7100001-CX163B-N7999999 2022
Suzuki SV 650 A ABS 73 CV, 54 kw 2cil. CX163C M1 Bastidores: CX163C-M7100001-CX163C-M7999999 2021
Suzuki SV 650 A ABS 76 CV, 56 kw 2cil. CX1236 L7 Bastidores: CX1236-H0100001-CX1236-H0199999 2016-2017
Suzuki SV 650 A ABS 76 CV, 56 kw 2cil. CX1236 L8 Bastidores: CX1236-J0100001-CX1236-J0199999 2018
Suzuki SV 650 A ABS 76 CV, 56 kw 2cil. CX123C L9 Bastidores: CX123C-K7100001-CX123C-K7199999 2019
Suzuki SV 650 A ABS 76 CV, 56 kw 2cil. CX123C M0 Bastidores: CX123C-L7100001-CX123C-L7199999 2020
Suzuki SV 650 AU ABS 48 CV, 35 kw 2cil. CX124C L9 Bastidores: CX124C-K7100001-CX124C-K7199999 2019
Suzuki SV 650 AU ABS 48 CV, 35 kw 2cil. CX124C M0 Bastidores: CX124C-L7100001-CX124C-L7199999 2020
Suzuki SV 650 AU ABS 48 CV, 35 kw 2cil. CX2436 L7 Bastidores: CX2436-H0100001-CX2436-H0199999 2016-2017
Suzuki SV 650 AU ABS 48 CV, 35 kw 2cil. CX2436 L8 Bastidores: CX2436-J0100001-CX2436-J0199999 2018
Suzuki SV 650 AU ABS 48 CV, 35 kw 2cil. CX273C M1 Bastidores: CX273C-M7100001-CX273C-M7999999 2021
Suzuki SV 650 AU ABS 48 CV, 35 kw 2cil. CX273C M2 Bastidores: CX273C-N7100001-CX273C-N7999999 2022
Suzuki SV 650 SA ABS 72 CV, 53 kw 2cil. WVBY1341 K7 Bastidores: BY1341 henceforth0100001-BY1341 henceforth0101353 2007
Suzuki SV 650 SA ABS 72 CV, 53 kw 2cil. WVBY1341 K8 Bastidores: BY134-100101354-BY1341 henceforth0101715 2008
Suzuki SV 650 SA ABS 72 CV, 53 kw 2cil. WVBY1341 K9 Bastidores: BY1341 henceforth0101716-BY1341 henceforth0101789 2009
Suzuki SV 650 SA ABS 72 CV, 53 kw 2cil. WVBY1341 L0 Bastidores: BY1341 henceforth0101790-- 2010
Suzuki SV 650 SUA ABS 34 CV, 25 kw 2cil. WVBY2241 K7 Bastidores: BY2241 henceforth0100001-BY2241 henceforth0100514 2007
Suzuki SV 650 SUA ABS 34 CV, 25 kw 2cil. WVBY2241 K8 Bastidores: BY2241 henceforth0100515-- 2008
Suzuki SV 650 UA ABS 34 CV, 25 kw 2cil. WVBY2131 K7 Bastidores: BY2131 henceforth0100001-BY2131 henceforth0100147 2007
Suzuki SV 650 UA ABS 34 CV, 25 kw 2cil. WVBY2131 K8 Bastidores: BY2131 henceforth0100148-BY2131 henceforth0100159 2008
Suzuki SV 650 UA ABS 34 CV, 25 kw 2cil. WVBY2131 K9 Bastidores: BY2131 henceforth0100160-- 2009
Suzuki SV 650 XA ABS 73 CV, 54 kw 2cil. - M2 Bastidores: --- 2022
Suzuki SV 650 XA ABS 73 CV, 54 kw 2cil. CX164C M1 Bastidores: CX164C-M7100001-CX164C-M7999999 2021
Suzuki SV 650 XA ABS 76 CV, 56 kw 2cil. CX1246 L8 Bastidores: CX1246-J0100001-CX1246-J0199999 2018
Suzuki SV 650 XA ABS 76 CV, 56 kw 2cil. CX124C L9 Bastidores: CX124C-K7100001-CX124C-K7199999 2019
Suzuki SV 650 XA ABS 76 CV, 56 kw 2cil. CX124C M0 Bastidores: CX124C-L7100001-CX124C-L7199999 2020
Suzuki SV 650 XAU ABS 48 CV, 35 kw 2cil. - M2 Bastidores: --- 2022
Suzuki SV 650 XAU ABS 48 CV, 35 kw 2cil. CX2446 L8 Bastidores: CX2446-J0100001-CX2446-J0199999 2018
Suzuki SV 650 XAU ABS 48 CV, 35 kw 2cil. CX244C L9 Bastidores: CX244C-K7100001-CX244C-K7199999 2019
Suzuki SV 650 XAU ABS 48 CV, 35 kw 2cil. CX244C M0 Bastidores: CX244C-L7100001-CX244C-L7199999 2020
Suzuki SV 650 XAU ABS 48 CV, 35 kw 2cil. CX274C M1 Bastidores: CX274C-M7100001-CX274C-M7999999 2021
