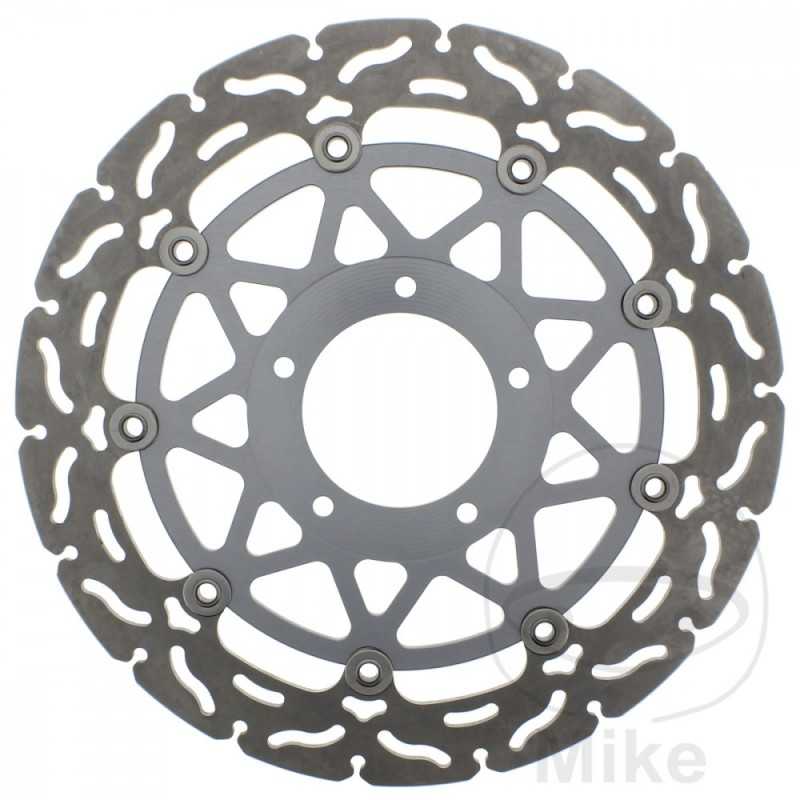

TRW Floating brake disc RACING 788.00.44

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

Floating brake discs have titanium anodized aluminum inner rings.

Floating windows don't rattle because high-quality stainless steel floats are held in tension by corrugated discs.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour and grooved brake rim

- In rigid and floating variants.

- Front to rear axle coordinated design.
OUTSIDE DIAMETER: 320MM
INNER DIAMETER: 80MM
CIRCLE SIZE: 101.5 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 8.5 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
MV Agusta Brutale 675 110/48 CV, 81/35 kw 3cil. - Bastidores: --- 2012-2014
MV Agusta Brutale 675 ABS 110 CV, 81 kw 3cil. - Bastidores: --- 2015-2017
MV Agusta Brutale 675 ABS 110/48 CV, 81/35 kw 3cil. - Bastidores: --- 2014
MV Agusta Brutale 800 125 CV, 92 kw 3cil. - Bastidores: --- 2013-2014
MV Agusta Brutale 800 ABS 110 CV, 81 kw 3cil. - Bastidores: --- 2016-2019
MV Agusta Brutale 800 ABS 125 CV, 92 kw 3cil. - Bastidores: --- 2014-2015
MV Agusta Brutale 800 RC ABS 150/140 CV, 110/103 kw 3cil. - Bastidores: --- 2018-2019
MV Agusta Brutale 800 Rosso ABS 110 CV, 81 kw 3cil. - Bastidores: --- 2020
MV Agusta Brutale 800 Rosso ABS 48 CV, 35 kw 3cil. - Bastidores: --- 2020
MV Agusta Brutale 800 Rosso ABS Euro5 110 CV, 81 kw 3cil. - Bastidores: --- 2021
MV Agusta Brutale 800 Rosso ABS Euro5 48 CV, 35 kw 3cil. - Bastidores: --- 2021
MV Agusta Brutale 800 RR ABS 140 CV, 103 kw 3cil. - Bastidores: --- 2015-2020
MV Agusta Brutale 800 RR ABS Euro5 140 CV, 103 kw 3cil. - Bastidores: --- 2021
MV Agusta Brutale 800 RR America ABS 140 CV, 103 kw 3cil. - Bastidores: --- 2018-2019
MV Agusta Brutale 800 RR LH44 ABS 140 CV, 103 kw 3cil. - Bastidores: --- 2018-2019
MV Agusta Brutale 800 RR Pirelli ABS 140 CV, 103 kw 3cil. - Bastidores: --- 2018-2019
MV Agusta Brutale 800 RR SCS ABS 140 CV, 103 kw 3cil. - Bastidores: --- 2020
MV Agusta Brutale 800 RR SCS ABS Euro5 140 CV, 103 kw 3cil. - Bastidores: --- 2021
MV Agusta Dragster 800 ABS 125 CV, 92 kw 3cil. - Bastidores: --- 2014-2017
MV Agusta Dragster 800 RC ABS 150/140 CV, 110/103 kw 3cil. - Bastidores: --- 2018-2020
MV Agusta Dragster 800 RC Limited Edition ABS 140 CV, 103 kw 3cil. - Bastidores: --- 2017
MV Agusta Dragster 800 RC SCS ABS Euro5 150/140 CV, 110/103 kw 3cil. - Bastidores: --- 2021
MV Agusta Dragster 800 Rosso ABS 110 CV, 81 kw 3cil. - Bastidores: --- 2020
MV Agusta Dragster 800 Rosso ABS Euro5 110 CV, 81 kw 3cil. - Bastidores: --- 2021
MV Agusta Dragster 800 RR ABS 140 CV, 103 kw 3cil. - Bastidores: --- 2015-2020
MV Agusta Dragster 800 RR ABS Euro5 140 CV, 103 kw 3cil. - Bastidores: --- 2021
MV Agusta Dragster 800 RR America ABS 140 CV, 103 kw 3cil. - Bastidores: --- 2018-2019
MV Agusta Dragster 800 RR LH44 ABS 140 CV, 103 kw 3cil. - Bastidores: --- 2016-2017
MV Agusta Dragster 800 RR Pirelli ABS 140 CV, 103 kw 3cil. - Bastidores: --- 2018-2019
MV Agusta Dragster 800 RR SCS ABS 140 CV, 103 kw 3cil. - Bastidores: --- 2020
MV Agusta Dragster 800 RR SCS ABS Euro5 140 CV, 103 kw 3cil. - Bastidores: --- 2021
MV Agusta F3 675 128 CV, 94 kw 3cil. - Bastidores: --- 2012-2014
MV Agusta F3 675 ABS 128 CV, 94 kw 3cil. - Bastidores: --- 2014-2020
MV Agusta F3 675 ABS 48 CV, 35 kw 3cil. - Bastidores: --- 2020
MV Agusta F3 675 Oro 128 CV, 94 kw 3cil. - Bastidores: --- 2012-2013
MV Agusta F3 675 RC ABS 133/128 CV, 97,8/94 kw 3cil. - Bastidores: --- 2018-2019
MV Agusta F3 675 RC Limited Edition ABS 128 CV, 94 kw 3cil. - Bastidores: --- 2015-2017
MV Agusta F3 800 148 CV, 109 kw 3cil. - Bastidores: --- 2014
MV Agusta F3 800 ABS 148 CV, 109 kw 3cil. - Bastidores: --- 2014-2020
MV Agusta F3 800 Ago ABS 148 CV, 109 kw 3cil. - Bastidores: --- 2014-2016
MV Agusta F3 800 RC ABS 153/148 CV, 112/109 kw 3cil. - Bastidores: --- 2018-2020
MV Agusta F3 800 RC ABS Euro5 153/148 CV, 112/109 kw 3cil. - Bastidores: --- 2021
MV Agusta F3 800 RC Limited Edition ABS 148 CV, 109 kw 3cil. - Bastidores: --- 2016-2017
MV Agusta F3 800 Rosso ABS Euro5 147 CV, 108 kw 3cil. - Bastidores: --- 2021-2022
MV Agusta F4 750 Brutale Oro 126 CV, 93 kw 4cil. - Bastidores: --- 2003-2004
MV Agusta F4 750 Oro 126 CV, 93 kw 4cil. - Bastidores: --- 1999-2000
MV Agusta F4 750 S 1+1 Strada  Biposto 100 CV, 74 kw 4cil. - Bastidores: --- 2001-2002
MV Agusta F4 750 S 1+1 Strada  Biposto 127 CV, 93 kw 4cil. - Bastidores: --- 1999-2000
MV Agusta F4 750 S 1+1 Strada  Biposto 129 CV, 95 kw 4cil. - Bastidores: --- 2001
MV Agusta F4 750 S 1+1 Strada  Biposto 137 CV, 101 kw 4cil. - Bastidores: --- 2002
MV Agusta F4 750 S 1+1 Strada Evo3 Biposto 100 CV, 74 kw 4cil. - Bastidores: --- 2003-2005
MV Agusta F4 750 S 1+1 Strada Evo3 Biposto 137 CV, 101 kw 4cil. - Bastidores: --- 2003-2005
MV Agusta F4 750 S Brutale 126 CV, 93 kw 4cil. - Bastidores: --- 2003-2005
MV Agusta F4 750 S Strada  Monoposto 100 CV, 74 kw 4cil. - Bastidores: --- 2001-2002
MV Agusta F4 750 S Strada  Monoposto 127 CV, 93 kw 4cil. - Bastidores: --- 1999-2000
MV Agusta F4 750 S Strada  Monoposto 129 CV, 95 kw 4cil. - Bastidores: --- 2001
MV Agusta F4 750 S Strada  Monoposto 137 CV, 101 kw 4cil. - Bastidores: --- 2002
MV Agusta F4 750 S Strada Evo3 Monoposto 100 CV, 74 kw 4cil. - Bastidores: --- 2003-2005
MV Agusta F4 750 S Strada Evo3 Monoposto 137 CV, 101 kw 4cil. - Bastidores: --- 2003-2005
MV Agusta F4 750 Senna 140/100 CV, 103/74 kw 4cil. - Bastidores: --- 2001-2002
MV Agusta F4 750 SPR 100 CV, 74 kw 4cil. - Bastidores: --- 2001-2004
MV Agusta F4 750 SPR 140 CV, 103 kw 4cil. - Bastidores: --- 2001-2003
MV Agusta F4 750 SPR 143 CV, 105 kw 4cil. - Bastidores: --- 2004
MV Agusta F4 750 SPR 1+1 100 CV, 74 kw 4cil. - Bastidores: --- 2001-2004
MV Agusta F4 750 SPR 1+1 140 CV, 103 kw 4cil. - Bastidores: --- 2001-2003
MV Agusta F4 750 SPR 1+1 143 CV, 105 kw 4cil. - Bastidores: --- 2004
MV Agusta Rivale 800 125 CV, 92 kw 3cil. - Bastidores: --- 2014
MV Agusta Rivale 800 ABS 125 CV, 92 kw 3cil. - Bastidores: --- 2014-2017
MV Agusta RVS1 800 ABS 150 CV, 110 kw 3cil. - Bastidores: --- 2018-2019
MV Agusta Stradale 800 ABS 115 CV, 84,5 kw 3cil. - Bastidores: --- 2015-2017
MV Agusta Superveloce 800 ABS 147 CV, 108 kw 3cil. - Bastidores: --- 2019-2020
MV Agusta Superveloce 800 ABS Euro5 147 CV, 108 kw 3cil. - Bastidores: --- 2021
MV Agusta Superveloce 800 Alpine ABS Euro5 147 CV, 108 kw 3cil. - Bastidores: --- 2021
MV Agusta Superveloce 800 Oro ABS 147 CV, 108 kw 3cil. - Bastidores: --- 2020
MV Agusta Superveloce 800 S ABS Euro5 147 CV, 108 kw 3cil. - Bastidores: --- 2021
MV Agusta Turismo Veloce 800 ABS 110 CV, 81 kw 3cil. - Bastidores: --- 2015-2019
MV Agusta Turismo Veloce 800 Lusso ABS 110 CV, 81 kw 3cil. - Bastidores: --- 2015-2020
MV Agusta Turismo Veloce 800 Lusso ABS Euro5 110 CV, 81 kw 3cil. - Bastidores: --- 2021
MV Agusta Turismo Veloce 800 Lusso SCS ABS 110 CV, 81 kw 3cil. - Bastidores: --- 2018-2020
MV Agusta Turismo Veloce 800 Lusso SCS ABS Euro5 110 CV, 81 kw 3cil. - Bastidores: --- 2021
MV Agusta Turismo Veloce 800 RC ABS 110 CV, 81 kw 3cil. - Bastidores: --- 2018-2019
MV Agusta Turismo Veloce 800 RC Limited Edition ABS 110 CV, 81 kw 3cil. - Bastidores: --- 2017
MV Agusta Turismo Veloce 800 RC SCS ABS 110 CV, 81 kw 3cil. - Bastidores: --- 2020
MV Agusta Turismo Veloce 800 RC SCS ABS Euro5 110 CV, 81 kw 3cil. - Bastidores: --- 2021
MV Agusta Turismo Veloce 800 Rosso ABS 110 CV, 81 kw 3cil. - Bastidores: --- 2020
MV Agusta Turismo Veloce 800 Rosso ABS Euro5 110 CV, 81 kw 3cil. - Bastidores: --- 2021
