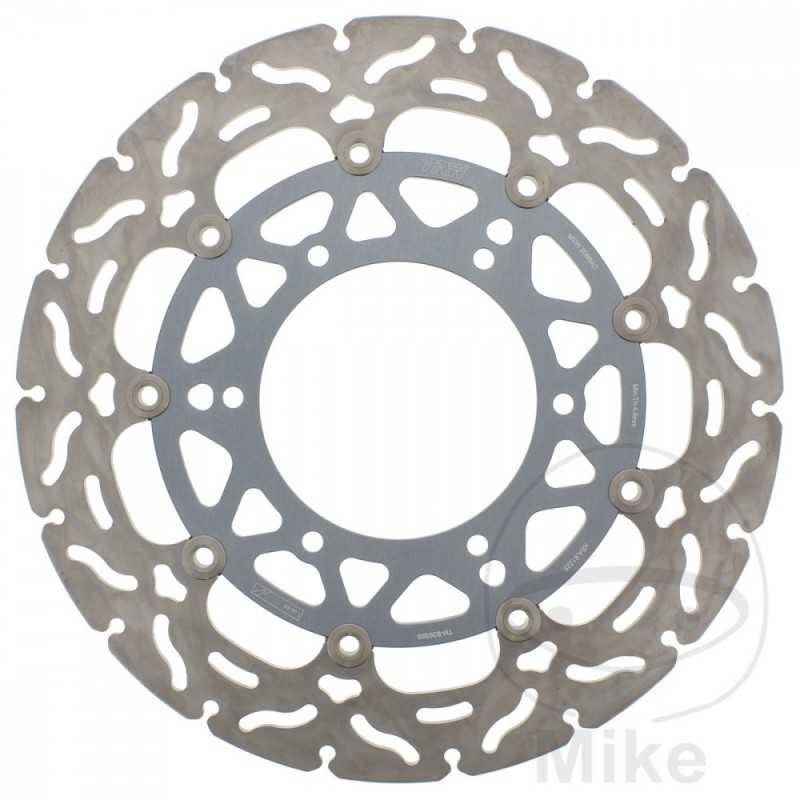

TRW Floating brake disc RACING 788.00.37

All brake discs have an ABE, also for scooters.

Discs are low wear and have up to 30% longer life compared to some comparable parts.

All variants: offroad, RAC and EC offroad discs, made of extremely dimensionally stable and hardened steel.

Precise surface polishing (2/100mm thickness deviation) prevents vibrations and improves pad fit.

A uniform rise and fall in temperature allows for a constant pressure point.

Floating brake discs have titanium anodized aluminum inner rings.

Floating windows don't rattle because high-quality stainless steel floats are held in tension by corrugated discs.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight design with fine contours.

Each brake disc can be individually actuated with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour and grooved brake rim

- In rigid and floating variants.

- Front to rear axle coordinated design.
OUTSIDE DIAMETER: 310MM
INSIDE DIAMETER: 110.8MM
CIRCLE SIZE: 132 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.3 MM
thickness: 5mm
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSX-S 1000 145,5 CV, 107 kw 4cil. DG1111 L6 Bastidores: DG1111-G0100001-- 2015-2016
Suzuki GSX-S 1000 A ABS 145,5 CV, 107 kw 4cil. DG1122 L6 Bastidores: DG1122-G0100001-- 2015-2017
Suzuki GSX-S 1000 A ABS 150 CV, 110 kw 4cil. DG3222 L8 Bastidores: DG3222-J0100001-DG3222-J0199999 2018
Suzuki GSX-S 1000 A ABS 150 CV, 110 kw 4cil. DG3222 L9 Bastidores: DG3222-K7100001-DG3222-K7199999 2019
Suzuki GSX-S 1000 A ABS 150 CV, 110 kw 4cil. DG3222 M0 Bastidores: DG3222-L7100001-DG3222-L7999999 2020-2021
Suzuki GSX-S 1000 AUF ABS 106 CV, 78 kw 4cil. DG2122 L6 Bastidores: DG2122-G0100001-- 2015-2017
Suzuki GSX-S 1000 AUF ABS 106 CV, 78 kw 4cil. DG4522 L8 Bastidores: DG4522-J0100001-DG4522-J0199999 2018
Suzuki GSX-S 1000 AUF ABS 106 CV, 78 kw 4cil. DG4522 L9 Bastidores: DG4522-K7100001-DG4522-K7199999 2019
Suzuki GSX-S 1000 AUF ABS 106 CV, 78 kw 4cil. DG4522 M0 Bastidores: DG4522-L7100001-DG4522-L7999999 2020-2021
Suzuki GSX-S 1000 AZ ABS 150 CV, 110 kw 4cil. DG3222 L8 Bastidores: DG3222-J0100001-DG3222-J0199999 2018
Suzuki GSX-S 1000 AZ ABS 150 CV, 110 kw 4cil. DG3222 L9 Bastidores: DG3222-K7100001-DG3222-K7199999 2019
Suzuki GSX-S 1000 AZ ABS 150 CV, 110 kw 4cil. DG3222 M0 Bastidores: DG3222-L7100001-DG3222-L7999999 2020-2021
Suzuki GSX-S 1000 AZUF ABS 106 CV, 78 kw 4cil. DG4522 L8 Bastidores: DG4522-J0100001-DG4522-J0199999 2018
Suzuki GSX-S 1000 AZUF ABS 106 CV, 78 kw 4cil. DG4522 L9 Bastidores: DG4522-K7100001-DG4522-K7199999 2019
Suzuki GSX-S 1000 AZUF ABS 106 CV, 78 kw 4cil. DG4522 M0 Bastidores: DG4522-L7100001-DG4522-L7999999 2020-2021
Suzuki GSX-S 1000 F 145,5 CV, 107 kw 4cil. DG1133 L6 Bastidores: DG1133-G0100001-- 2015-2016
Suzuki GSX-S 1000 FA ABS 145,5 CV, 107 kw 4cil. DG1144 L6 Bastidores: DG1144-G0100001-- 2015-2017
Suzuki GSX-S 1000 FA ABS 150 CV, 110 kw 4cil. DG3244 L8 Bastidores: DG3244-J0100001-DG3244-J0199999 2018
Suzuki GSX-S 1000 FA ABS 150 CV, 110 kw 4cil. DG3244 L9 Bastidores: DG3244-K7100001-DG3244-K7199999 2019
Suzuki GSX-S 1000 FA ABS 150 CV, 110 kw 4cil. DG3244 M0 Bastidores: DG3244-L7100001-DG3244-L7999999 2020-2021
Suzuki GSX-S 1000 FAUF ABS 106 CV, 78 kw 4cil. DG2144 L6 Bastidores: DG2144-G0100001-- 2015-2017
Suzuki GSX-S 1000 FAUF ABS 106 CV, 78 kw 4cil. DG4544 L8 Bastidores: DG4544-J0100001-DG4544-J0199999 2018
Suzuki GSX-S 1000 FAUF ABS 106 CV, 78 kw 4cil. DG4544 L9 Bastidores: DG4544-K7100001-DG4544-K7199999 2019
Suzuki GSX-S 1000 FAUF ABS 106 CV, 78 kw 4cil. DG4544 M0 Bastidores: DG4544-L7100001-DG4544-L7999999 2020-2021
Suzuki GSX-S 1000 FUF 106 CV, 78 kw 4cil. DG2133 L6 Bastidores: DG2133-G0100001-- 2015-2016
Suzuki GSX-S 1000 FZA ABS 150 CV, 110 kw 4cil. DG3244 L8 Bastidores: DG3244-J0100001-DG3244-J0199999 2018
Suzuki GSX-S 1000 FZA ABS 150 CV, 110 kw 4cil. DG3244 L9 Bastidores: DG3244-K7100001-DG3244-K7199999 2019
Suzuki GSX-S 1000 FZA ABS 150 CV, 110 kw 4cil. DG3244 M0 Bastidores: DG3244-L7100001-DG3244-L7999999 2020-2021
Suzuki GSX-S 1000 FZAFU ABS 106 CV, 78 kw 4cil. DG4544 L8 Bastidores: DG4544-J0100001-DG4544-J0199999 2018
Suzuki GSX-S 1000 FZAFU ABS 106 CV, 78 kw 4cil. DG4544 L9 Bastidores: DG4544-K7100001-DG4544-K7199999 2019
Suzuki GSX-S 1000 FZAFU ABS 106 CV, 78 kw 4cil. DG4544 M0 Bastidores: DG4544-L7100001-DG4544-L7999999 2020-2021
Suzuki GSX-S 1000 GT TRQ ABS 152 CV, 112 kw 4cil. EK12AZ M2 Bastidores: EK12AZ-N7100001-EK12AZ-N7999999 2022
Suzuki GSX-S 1000 GT TRQ Traval Edition ABS 152 CV, 112 kw 4cil. EK12AZ M2 Bastidores: EK12AZ-N7100001-EK12AZ-N7999999 2022
Suzuki GSX-S 1000 RQ ABS 152 CV, 112 kw 4cil. EK11AZ M2 Bastidores: EK11AZ-N7000001-EK11AZ-N7999999 2022
Suzuki GSX-S 1000 SRQ Katana ABS 150 CV, 110 kw 4cil. DG3255 M0 Bastidores: DG3255-L7100001-DG3255-L7999999 2019-2020
Suzuki GSX-S 1000 SRQ Katana ABS 150 CV, 110 kw 4cil. DG3255 M1 Bastidores: DG3255L-7100001-DG3255L-7999999 2021
Suzuki GSX-S 1000 SRQ Katana ABS 152 CV, 112 kw 4cil. EK13AZ M2 Bastidores: EK13AZ-N7100001-EK13AZ-N7999999 2022
Suzuki GSX-S 1000 STQ Katana ABS 106 CV, 78 kw 4cil. DG4555 M0 Bastidores: DG4555-L7100001-DG4555-L7999999 2019-2020
Suzuki GSX-S 1000 STQ Katana ABS 106 CV, 78 kw 4cil. DG4555 M1 Bastidores: DG4555-L7100001-DG4555-L7999999 2021
Suzuki GSX-S 1000 UF 106 CV, 78 kw 4cil. DG2111 L6 Bastidores: DG2111-G0100001-- 2015-2016
