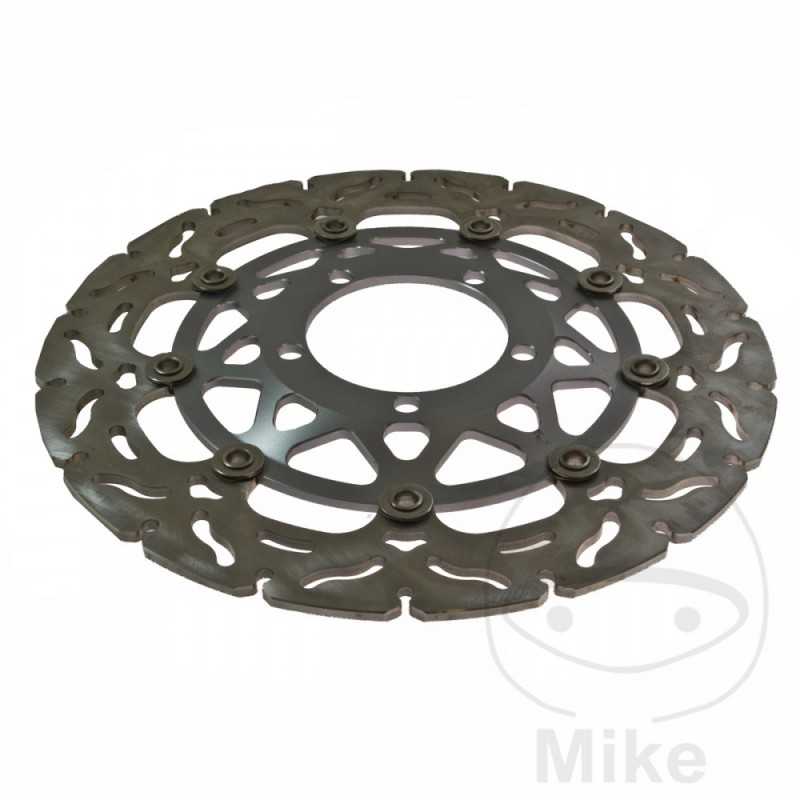

TRW Floating brake disc RACING 788.00.06

All brake discs have an ABE, also for scooters.

Discs are low-wear and have up to 30% longer life than some comparable replacement parts.

All variants: Allround, RAC and EC off-road discs are made of extremely dimensionally stable and hardened steel.

The precise grinding of the surface (thickness deviation of 2/100 mm) prevents vibrations and improves the adaptation of the pads.

Uniform temperature buildup and breakdown allows for a constant pressure point.

Floating brake discs have aluminum-machined, titanium-anodized inner rings.

The floating panels do not make noise, because the high-quality stainless steel floats are held taut with corrugated discs.

A new special alloy prevents excessive corrosion.

Laser technology allows for a lightweight construction with fine contours.

Each brake disc can be individually driven with brake pads from the TRW-Lucas range.

TRW-Lucas RAC floating brake disc

- Notched outer contour and grooved brake edge

- In rigid and floating versions

- Coordinated design of the front - rear axle
OUTSIDE DIAMETER: 310MM
INSIDE DIAMETER: 84.5MM
CIRCLE SIZE: 100.5 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 10.5 MM
thickness: 5mm
PADDING: 14.5MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph Daytona 675 124/98/34 CV, 91/72/25 kw 3cil. D67LC Bastidores: 1 - 363486-1 - 381274 2008
Triumph Daytona 675 124/98/34 CV, 91/72/25 kw 3cil. D67LC Bastidores: 1 --1 - 363485 2006-2007
Triumph Daytona 675 125/98/34 CV, 92/72/25 kw 3cil. D67LC Bastidores: SMTTMD1066 - 381275-SMTTMD1066 - 564947 2009
Triumph Daytona 675 125/98/34 CV, 92/72/25 kw 3cil. D67LC Bastidores: SMTTMD1066 --SMTTMD1066 - 564947 2010-2012
Triumph Street Triple 675 106/98/34 CV, 78/72/25 kw 3cil. D67LD Bastidores: SMTTMD4066 - 459241-SMTTMD4066 - 2010
Triumph Street Triple 675 106/98/34 CV, 78/72/25 kw 3cil. D67LD Bastidores: SMTTMD4066 --SMTTMD4066 - 2008-2009
Triumph Street Triple 675 106/98/34 CV, 78/72/25 kw 3cil. D67LD Bastidores: SMTTMD4066 --SMTTMD4066 - 2011-2011
Triumph Street Triple 675 106/98/34 CV, 78/72/25 kw 3cil. D67LD Bastidores: SMTTMD4066 --SMTTMD4066 - 459240 2010
Triumph Street Triple 675 106/98/34 CV, 78/72/25 kw 3cil. D67LD Bastidores: SMTTMD4066 --SMTTMD4066 - 560476 2012
Triumph Street Triple 675 R 106/98/34 CV, 78/72/25 kw 3cil. D67LD Bastidores: SMTTMD4166 - 452037-SMTTMD4166 - 2010
Triumph Street Triple 675 R 106/98/34 CV, 78/72/25 kw 3cil. D67LD Bastidores: SMTTMD4166 --SMTTMD4166 - 2009-2011
Triumph Street Triple 675 R 106/98/34 CV, 78/72/25 kw 3cil. D67LD Bastidores: SMTTMD4166 --SMTTMD4166 - 560476 2012
