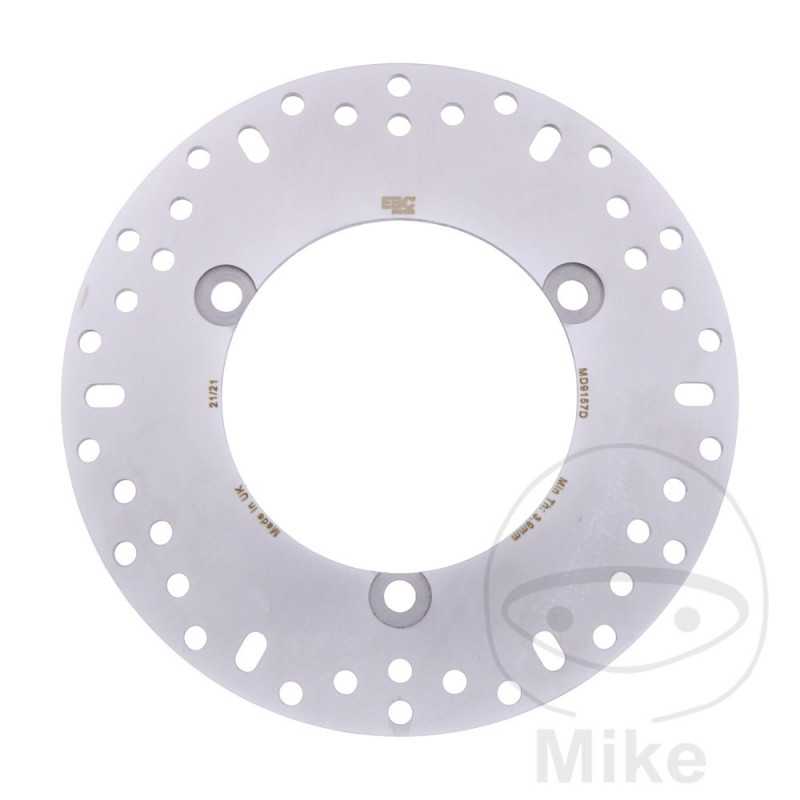

EBC Stainless steel brake disc for motorcycle 760.05.71

EBC MX brake disc for Offroad/Enduro and ATV. MADE IN THE UK.

The aim of development is to improve braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected with a 3 micron thick zinc coating, which wears away in the contact area of the brake pads as soon as the brakes are applied. Only in this area a slight rust with a longer service life can form.

The brake discs are drilled in a birdcage pattern to achieve as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the performance of the brakes in the wet and the less wear.

- Rigid brake disc.

- Made of carbon steel with heat treatment.

- Braking surface drilled with an optimized hole pattern.

- Radially ground.

- Zinc plated to protect it from corrosion.

- EBC recommends EBC Organic TT brake pads or, for sporty riders, EBC sintered brake pads in R or MXS compound.

- Original design.

- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 230MM
QUANTITY OF HOLES: 3
HOLE DIAMETER: 3 MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha GPD 125 A NMax ABS 12,2 CV, 9 kw 1cil. SE931 2DS1 Bastidores: SE931 henceforth00101-- 2015-2016
Yamaha GPD 125 A NMax ABS 12,2 CV, 9 kw 1cil. SEC71 BV31 Bastidores: SEC71 henceforth00106-- 2017
Yamaha GPD 125 A NMax ABS 12,2 CV, 9 kw 1cil. SEC71 BV37 Bastidores: SEC71 henceforth00108-- 2018
Yamaha GPD 125 A NMax ABS 12,2 CV, 9 kw 1cil. SEC71 BV3C Bastidores: SEC71 henceforth31321-- 2019
Yamaha GPD 125 A NMax ABS 12,2 CV, 9 kw 1cil. SEC71 BV3H Bastidores: SEC71 henceforth49001-- 2020
Yamaha GPD 125 A NMax ABS 12,2 CV, 9 kw 1cil. SEG51 BAL1 Bastidores: SEG51 henceforth00101-- 2021
Yamaha GPD 150 A NMax 150 ABS 15 CV, 11 kw 1cil. SG431 BV41 Bastidores: SG431 henceforth00101-- 2017
Yamaha GPD 150 A NMax 150 ABS 15 CV, 11 kw 1cil. SG431 BV46 Bastidores: SG431 henceforth04881-- 2018
Yamaha GPD 150 A NMax 150 ABS 15 CV, 11 kw 1cil. SG431 BV49 Bastidores: SG431 henceforth09241-- 2019
Yamaha GPD 150 A NMax 150 ABS 15 CV, 11 kw 1cil. SG431 BV4D Bastidores: SG431 henceforth13921-- 2020
Yamaha GPD 155 A NMax ABS 15 CV, 11 kw 1cil. SG651 BBD1 Bastidores: SG651 henceforth00101-- 2021
Yamaha GPD 155 A NMax ABS 15 CV, 11 kw 1cil. SG651 BBD5 Bastidores: --- 2022
Yamaha MWS 125 A Tricity ABS 12,2 CV, 9,1 kw 1cil. SEC21 BR71 Bastidores: SEC21 henceforth01001-- 2017
Yamaha MWS 125 A Tricity ABS 12,2 CV, 9,1 kw 1cil. SEC21 BR77 Bastidores: SEC21 henceforth02173-- 2018-2019
Yamaha MWS 125 A Tricity ABS 12,2 CV, 9,1 kw 1cil. SEC21 BR7G Bastidores: SEC21 henceforth05055-- 2020
Yamaha MWS 125 A Tricity MWS125-A ABS 12,2 CV, 9,1 kw 1cil. SEC21 BR7G Bastidores: SEC21 henceforth05055-- 2021
Yamaha MWS 125 C Tricity MWS125-C CBS 12,2 CV, 9,1 kw 1cil. SEC24 BU51 Bastidores: SEC24 henceforth13201-- 2017
Yamaha MWS 155 A Tricity ABS 15 CV, 11 kw 1cil. SG381 BB89 Bastidores: SG381 henceforth57231-- 2018-2019
Yamaha MWS 155 A Tricity ABS 15 CV, 11 kw 1cil. SG381 BB8N Bastidores: SG381 henceforth59185-- 2020
Yamaha MWS 155 A Tricity MWS150-A ABS 15 CV, 11 kw 1cil. SG381 BB8N Bastidores: SG381 henceforth59185-- 2021
