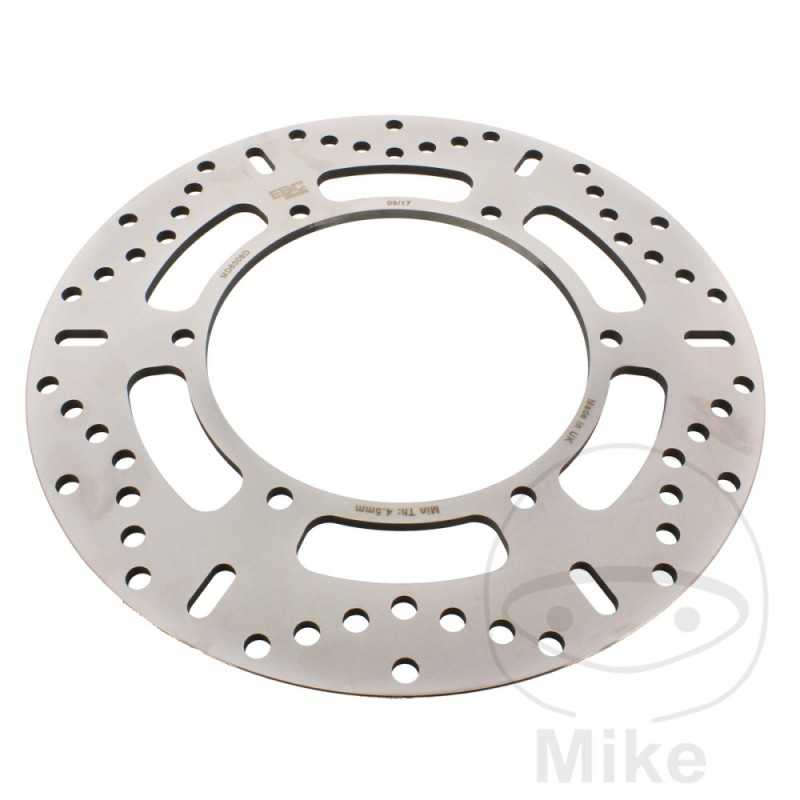

EBC Stainless steel brake disc for motorcycle 760.04.50

EBC HPSR brake disc, rigid version. MADE IN THE UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.

The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.

- Brake ring machined from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even at maximum load.

- Without vitrification of the braking surface, the coefficient of friction remains constant.

- Drilled brake surface with optimized hole pattern.

- Galvanized for protection against corrosion.

- Lower manufacturing tolerances.

- For the best braking performance, EBC recommends EBC Double-H Sinter brake pads.

- Independent design.
OUTSIDE DIAMETER: 270MM
INSIDE DIAMETER: 140.2MM
CIRCLE SIZE: 158 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 8.6 MM
thickness: 5mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
APRILIA ETV 1000 CAPONORD 98 CV, 72 KW 2CIL. PS000 BASTIDORES: --- 2001-2005
APRILIA ETV 1000 CAPONORD ABS 98 CV, 72 KW 2CIL. PS004 BASTIDORES: --- 2004-2009
APRILIA ETV 1000 CAPONORD RALLY RAID 98 CV, 72 KW 2CIL. PSB00 BASTIDORES: --- 2003-2006
