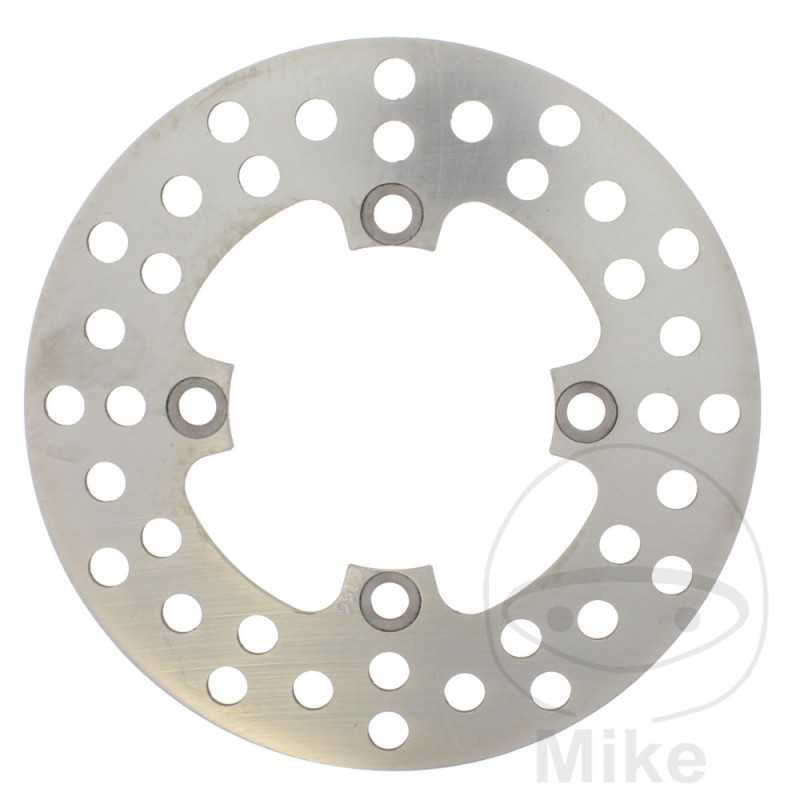

EBC Stainless steel brake disc for motorcycle 760.03.54

EBC HPSR brake disc, rigid version. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which erodes in the area of the contact patch of the brake pads during braking. Only in this area can the form more easily oxidize during the long life.

The brake discs are perforated in Vogelschwingendesign to fit with as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes installed, the better the wet braking performance and the less wear.

- Brake ring machined in HPSR low carbon forged steel.

- Therefore, there is no distortion of the brake disc even at maximum load.

- Without vitrification of the braking surface, the coefficient of friction remains constant.

- Drilled brake surface with optimized hole pattern.

- Galvanized for protection against corrosion.

- Lower manufacturing tolerances.

- For the best braking performance, EBC recommends EBC Double-H Sinter brake pads.

- Independent design.
OUTER DIAMETER: 180MM
INSIDE DIAMETER: 79.2MM
CIRCLE SIZE: 95 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 9.3 MM
THICKNESS: 3.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki KX 65 A 1cil. KX065AAA BF Bastidores: KX065AAA henceforth72001-KX065AAA henceforth75000 2011
Kawasaki KX 65 A 1cil. KX065AAA CF Bastidores: KX065AAA henceforth75001-KX065AAA henceforth78000 2012
Kawasaki KX 65 A 1cil. KX065AAA DF Bastidores: KX065AAA henceforth78001-KX065AAA henceforth81000 2013
Kawasaki KX 65 A 1cil. KX065AAA EF Bastidores: KX065AAA henceforth81001-- 2014
Kawasaki KX 65 A 1cil. KX065AAA FF Bastidores: KX065AAA henceforth83001-KX065AAA henceforth85000 2015
Kawasaki KX 65 A 1cil. KX065AAA GF Bastidores: KX065AAA henceforth85001-KX065AAA henceforth88000 2016
Kawasaki KX 65 A 1cil. KX065AAA HF Bastidores: KX065AAA henceforth88001-KX065AAA henceforth92000 2017
Kawasaki KX 65 A 1cil. KX065AAA JF Bastidores: KX065AAA henceforth92001-KX065AAA henceforth95000 2018
Kawasaki KX 65 A 1cil. KX065AAA KF Bastidores: KX065AAA henceforth95001-KX065AAA henceforth97999 2019
Kawasaki KX 65 A 1cil. KX065AAA LF Bastidores: KX065AAA henceforth98001-- 2020
Kawasaki KX 65 A 15,9 CV, 11,7 kw 1cil. KX065AAA 1 Bastidores: KX065AAA henceforth00001-KX065AAA henceforth09000 2000
Kawasaki KX 65 A 15,9 CV, 11,7 kw 1cil. KX065AAA 2 Bastidores: KX065AAA henceforth09001-KX065AAA henceforth16000 2001
Kawasaki KX 65 A 16,7 CV, 12 kw 1cil. KX065AAA 6F Bastidores: KX065AAA henceforth48001-KX065AAA henceforth54000 2006
Kawasaki KX 65 A 16,7 CV, 12 kw 1cil. KX065AAA 7F Bastidores: KX065AAA henceforth54001-- 2007
Kawasaki KX 65 A 16,7 CV, 12 kw 1cil. KX065AAA 8F Bastidores: KX065AAA henceforth59001-KX065AAA henceforth65000 2008
Kawasaki KX 65 A 16,7 CV, 12 kw 1cil. KX065AAA 9F Bastidores: KX065AAA henceforth65001-KX065AAA henceforth70000 2009
Kawasaki KX 65 A 16,7 CV, 12 kw 1cil. KX065AAA AF Bastidores: KX065AAA henceforth70001-KX065AAA henceforth72000 2010
Kawasaki KX 65 A 16,7 CV, 12,3 kw 1cil. KX065AAA 3 Bastidores: KX065AAA henceforth16001-KX065AAA henceforth27000 2002
Kawasaki KX 65 A 16,7 CV, 12,3 kw 1cil. KX065AAA 4 Bastidores: KX065AAA henceforth27001-KX065AAA henceforth36000 2003
Kawasaki KX 65 A 16,7 CV, 12,3 kw 1cil. KX065AAA 5 Bastidores: KX065AAA henceforth36001-- 2004
Kawasaki KX 65 A 16,7 CV, 12,3 kw 1cil. KX065AAA 6 Bastidores: KX065AAA henceforth42001-KX065AAA henceforth48000 2005
Suzuki RM 65 16,7 CV, 12,3 kw 1cil. KX065A K3 Bastidores: KX065A-BA000001-- 2003
Suzuki RM 65 16,7 CV, 12,3 kw 1cil. KX065A K4 Bastidores: KX065A-BA009001-- 2004
Suzuki RM 65 16,7 CV, 12,3 kw 1cil. KX065A K5 Bastidores: KX065A-BA013001-- 2005
