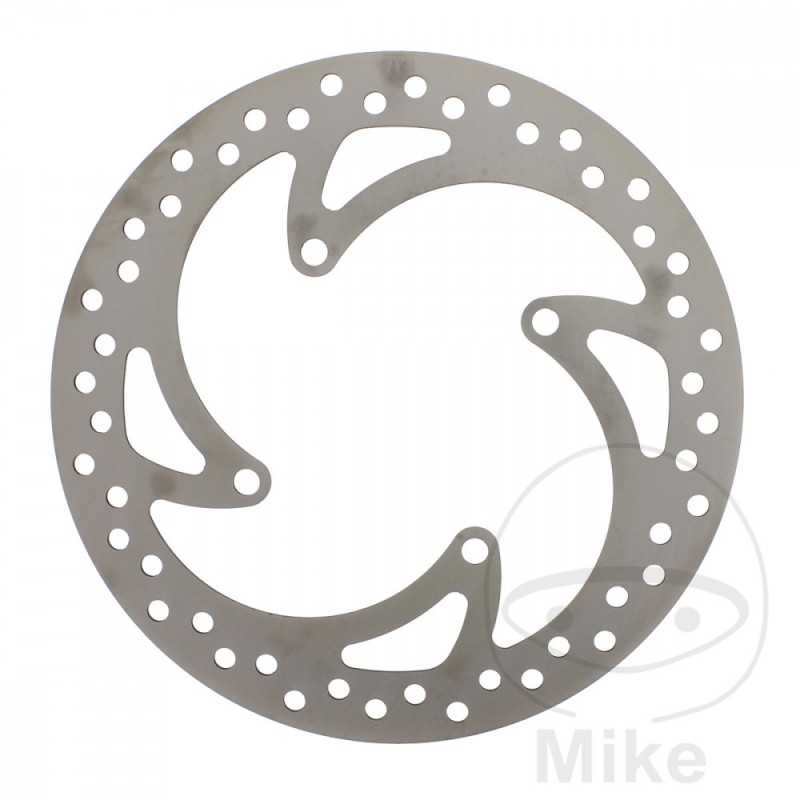

EBC Stainless steel brake disc for motorcycle 760.02.97

EBC HPSR brake disc, rigid version. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which erodes in the area of the contact patch of the brake pads during braking. Only in this area can the form more easily oxidize during the long life.

The brake discs are perforated in Vogelschwingendesign to fit with as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes installed, the better the wet braking performance and the less wear.

- Brake ring machined in HPSR low carbon forged steel.

- Therefore, there is no distortion of the brake disc even at maximum load.

- Without vitrification of the braking surface, the coefficient of friction remains constant.

- Drilled brake surface with optimized hole pattern.

- Galvanized for protection against corrosion.

- Lower manufacturing tolerances.

- For the best braking performance, EBC recommends EBC Double-H Sinter brake pads.

- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 92.2MM
CIRCLE SIZE: 108 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 8.5 MM
THICKNESS: 3.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha TT-R 125 LW 1cil. CE07Y 5HP4 Bastidores: CE07Y henceforth00119-- 2000
Yamaha TT-R 125 LW 1cil. CE07Y 5HP9 Bastidores: CE07Y henceforth05914-- 2001
Yamaha TT-R 125 LW 1cil. CE07Y 5HPD Bastidores: CE07Y henceforth23725-- 2002
Yamaha TT-R 125 LW 1cil. CE07Y 5HPH Bastidores: CE07Y henceforth47427-- 2003
Yamaha TT-R 125 LW 1cil. CE07Y 5HPU Bastidores: CE07Y henceforth69592-- 2004
Yamaha TT-R 125 LW 1cil. CE18W 19CK Bastidores: CE18W henceforth00401-- 2011
Yamaha TT-R 125 LW 1cil. CE18W 19CR Bastidores: CE18W henceforth00551-- 2012
Yamaha TT-R 125 LW 1cil. CE18W 2CP2 Bastidores: CE18W henceforth00601-- 2013
Yamaha TT-R 125 LW 1cil. CE18W 2CP4 Bastidores: CE18W henceforth00651-- 2014
Yamaha TT-R 125 LW 1cil. CE18W 2CP6 Bastidores: CE18W henceforth00701-- 2015
Yamaha TT-R 125 LW 1cil. CE18W 2CP8 Bastidores: CE18W henceforth00851-- 2016
Yamaha TT-R 125 LWE 1cil. CE12Y 5HPM Bastidores: CE12Y henceforth00019-- 2003
Yamaha TT-R 125 LWE 1cil. CE12Y 5HPW Bastidores: CE12Y henceforth06766-- 2004
Yamaha TT-R 125 LWE 1cil. CE21W 19CN Bastidores: CE21W henceforth02351-- 2011
Yamaha TT-R 125 LWE 1cil. CE21W 19CU Bastidores: CE21W henceforth02951-- 2012
Yamaha TT-R 125 LWE 1cil. CE21W 19CX Bastidores: CE21W henceforth03601-- 2013
Yamaha TT-R 125 LWE 1cil. CE21W 2PT3 Bastidores: CE21W henceforth04051-- 2014-2015
Yamaha TT-R 125 LWE 1cil. CE21W 2PT9 Bastidores: CE21W henceforth05001-- 2016
Yamaha TT-R 125 LWE 1cil. CE21W 2PTC Bastidores: CE21W henceforth05401-- 2017-2021
