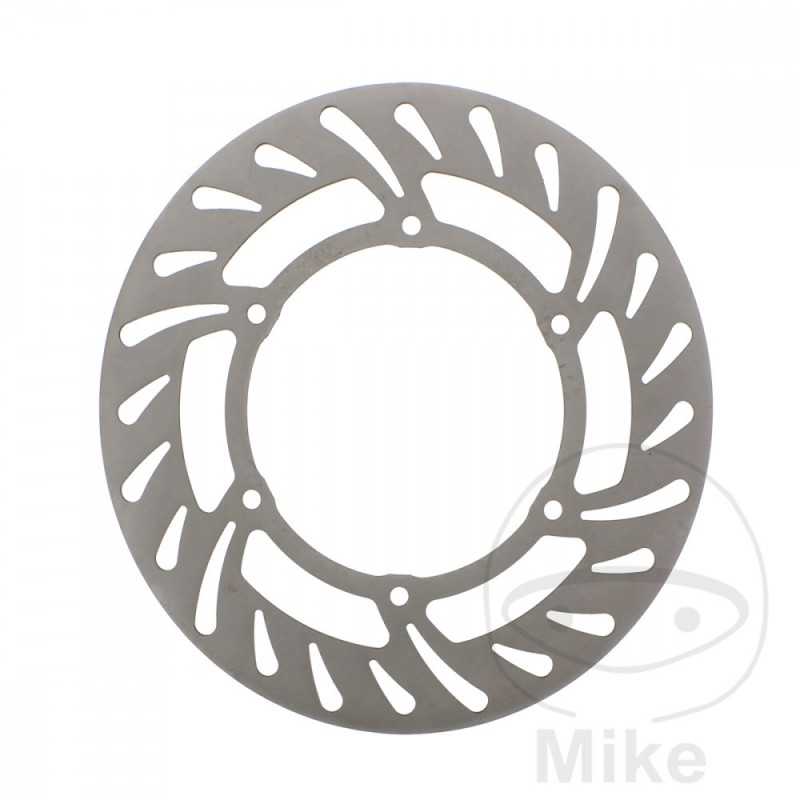

EBC Stainless steel brake disc for motorcycle 760.02.94

EBC HPSR brake disc, rigid version. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which erodes in the area of the contact patch of the brake pads during braking. Only in this area can the form more easily oxidize during the long life.

The brake discs are perforated in Vogelschwingendesign to fit with as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes installed, the better the wet braking performance and the less wear.

- Brake ring machined in HPSR low carbon forged steel.

- Therefore, there is no distortion of the brake disc even at maximum load.

- Without vitrification of the braking surface, the coefficient of friction remains constant.

- Drilled brake surface with optimized hole pattern.

- Galvanized for protection against corrosion.

- Lower manufacturing tolerances.

- For the best braking performance, EBC recommends EBC Double-H Sinter brake pads.

- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 110.2MM
CIRCLE SIZE: 125 MM
HOLES QUANTITY: 6
HOLE DIAMETER: 6.3 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM Adventure 640 E LC4 54/34 CV, 40 /25kw 1cil. - Bastidores: --- 2003-2007
KTM Adventure 640 LC4 49 CV, 36 kw 1cil. - Bastidores: --- 2001-2002
KTM Adventure 640 R 49 CV, 36 kw 1cil. - Bastidores: --- 1999-2000
KTM Duke 400 27/44 CV, 20/32 kw 1cil. - Bastidores: --- 1994-1995
KTM Duke 620 31/50 CV, 23/37 kw 1cil. - Bastidores: --- 1994-1995
KTM Duke 620 E 31/50 CV, 23/37 kw 1cil. - Bastidores: --- 1996
KTM Duke 620 E 32/50 CV, 23/37 kw 1cil. - Bastidores: --- 1997-1998
KTM Duke 620 E Last Edition 34/54 CV, 25/40 kw 1cil. - Bastidores: --- 1998-1999
KTM Duke 640 E II 34 CV, 25 kw 1cil. - Bastidores: --- 1999-2007
KTM Duke 640 E II 54 CV, 40 kw 1cil. - Bastidores: --- 1999-2007
KTM EGS 400 LC4 30/41 CV, 22/30 kw 1cil. - Bastidores: --- 1996-1997
KTM E-GS 600 LC4 27/45 CV, 20/33 kw 1cil. - Bastidores: --- 1993
KTM EGS 620 LC4 31 CV, 23 kw 1cil. - Bastidores: --- 1994-1996
KTM EGS 620 LC4 32/50 CV, 23/37 kw 1cil. - Bastidores: --- 1997-1998
KTM EGS 620 LC4 50 CV, 37 kw 1cil. - Bastidores: --- 1994-1996
KTM EGS 620 LC4 LSE 32/50 CV, 23/37 kw 1cil. - Bastidores: --- 1997-1998
KTM EGS 620 LC4-E 32/50 CV, 23/37 kw 1cil. - Bastidores: --- 1997-1998
KTM EGS-E 400 LC4 30/41 CV, 22/30 kw 1cil. - Bastidores: --- 1997
KTM EXC 600 LC4 Competition 27 CV, 20 kw 1cil. - Bastidores: --- 1993
KTM EXC 600 LC4 Competition Sixdays 1cil. - Bastidores: --- 1993
KTM EXC 612 LC4 Competition 1cil. - Bastidores: --- 1993
KTM EXC 612 LC4 Competition Sixdays 1cil. - Bastidores: --- 1993
KTM EXC 620 LC4 Competition 27/59 CV, 20/43 kw 1cil. - Bastidores: --- 1994-1995
KTM EXC 620 LC4 Competition 31/50 CV, 23/37 kw 1cil. - Bastidores: --- 1996
KTM EXC 620 LC4 Competition 32/50 CV, 23/37 kw 1cil. - Bastidores: --- 1998
KTM EXC 620 LC4 Competition 34/50 CV, 25/37 kw 1cil. - Bastidores: --- 1999
KTM EXC 620 LC4 Competition Sixdays Winner 1cil. - Bastidores: --- 1996-1998
KTM EXC 620 LC4 Dakar Competition 1cil. - Bastidores: --- 1995
KTM EXC 620 LC4 Pharaonen Rally 1cil. - Bastidores: --- 1994
KTM EXC 620 LC4 Rally 1cil. - Bastidores: --- 1997
KTM LC4-E 400 39 CV, 29 kw 1cil. - Bastidores: --- 2000-2001
KTM LC4-E 640 49 CV, 36 kw 1cil. - Bastidores: --- 2000-2002
KTM LC4-E 640 54/34 CV, 40/25 kw 1cil. - Bastidores: --- 2003-2005
KTM LC4-E 640 Supermoto 49 CV, 36 kw 1cil. - Bastidores: --- 1999-2002
KTM LC4-E 640 Supermoto 54/34 CV, 40/25 kw 1cil. - Bastidores: --- 2003-2006
KTM SC 400 LC4 Super Competition 27 CV, 20 kw 1cil. - Bastidores: --- 1998-1999
KTM SC 400 LC4 Super Competition 27/43 CV, 20/32 kw 1cil. - Bastidores: --- 1995-1997
KTM SC 400 LC4 Super Competition 43 CV, 32 kw 1cil. - Bastidores: --- 1998-1999
KTM SC 620 LC4 Super Competition 27 CV, 20 kw 1cil. - Bastidores: --- 2001
KTM SC 620 LC4 Super Competition 27/59 CV, 20/43 kw 1cil. - Bastidores: --- 1996-1999
KTM SC 620 LC4 Super Competition 59 CV, 43 kw 1cil. - Bastidores: --- 2000
KTM SC 620 LC4 Supermoto 60 CV, 44 kw 1cil. - Bastidores: --- 2000-2001
KTM SC 625 LC4 Super Competition 31 CV, 23 kw 1cil. - Bastidores: --- 2002
KTM SC 625 LC4 Super Competition Supermoto 31 CV, 23 kw 1cil. - Bastidores: --- 2002
KTM SMC 625 Supermoto 28,5/60 CV, 21/44 kw 1cil. - Bastidores: --- 2005-2006
KTM SMC 625 Supermoto 32/60 CV, 24/44 kw 1cil. - Bastidores: --- 2004
KTM SMC 660 LC4 Supermoto 65/28,5 CV, 48/21 kw 1cil. - Bastidores: --- 2005-2006
KTM SMC 660 LC4 Supermoto 65/32 CV, 48/24 kw 1cil. - Bastidores: --- 2003-2004
KTM SX 620 LC4 59 CV, 43 kw 1cil. - Bastidores: --- 1994
KTM SX 620 LC4 60 CV, 44 kw 1cil. - Bastidores: --- 1995-1999
KTM SXC 400 1cil. - Bastidores: --- 1997-1998
KTM SXC 400 Tiainen 1cil. - Bastidores: --- 1999
KTM SXC 620 LC4 1cil. - Bastidores: --- 1997
KTM SXC 625 LC4 32/60 CV, 24/44 kw 1cil. - Bastidores: --- 2003-2006
