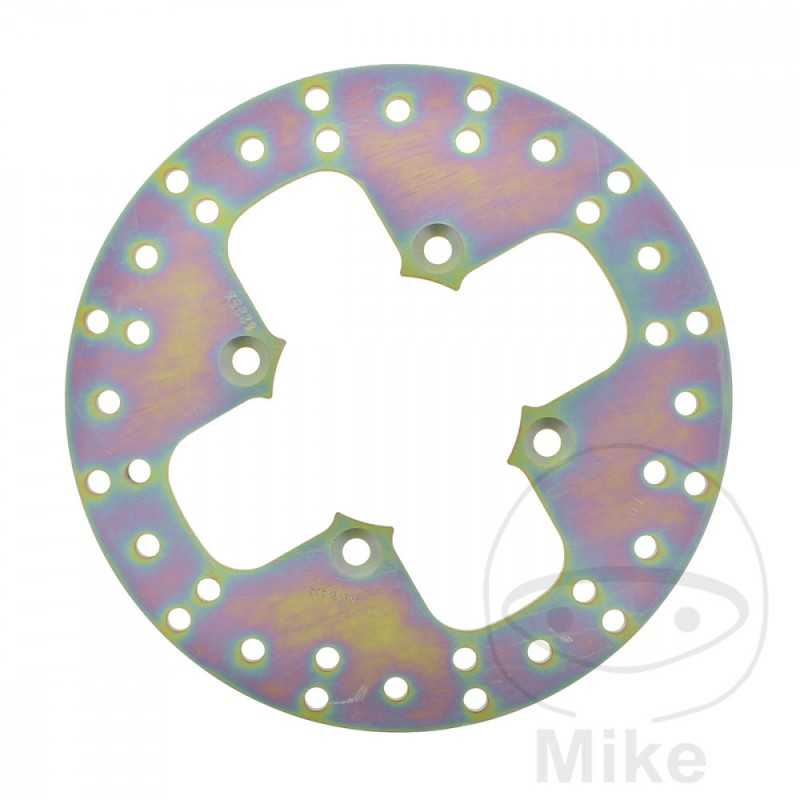

EBC Stainless steel brake disc for motorcycle 760.02.92
€72.45
€85.96
Save 15.71%Tax included
EBC HPSR brake disc, rigid version. MADE IN UK.
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which erodes in the area of the contact patch of the brake pads during braking. Only in this area can the form more easily oxidize during the long life.
The brake discs are perforated in Vogelschwingendesign to fit with as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes installed, the better the wet braking performance and the less wear.
- Brake ring machined in HPSR low carbon forged steel.
- Therefore, there is no distortion of the brake disc even at maximum load.
- Without vitrification of the braking surface, the coefficient of friction remains constant.
- Drilled brake surface with optimized hole pattern.
- Galvanized for protection against corrosion.
- Lower manufacturing tolerances.
- For the best braking performance, EBC recommends EBC Double-H Sinter brake pads.
- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 82.3MM
CIRCLE SIZE: 103 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 9 MM
thickness: 5mm
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BOMBARDIER QUEST 650 16/42 CV, 11,6/31 KW 1CIL. - BASTIDORES: --- 2002-2004
BOMBARDIER QUEST 650 MAX 16/42 CV, 11,6/31 KW 1CIL. - BASTIDORES: --- 2004-2005
BOMBARDIER QUEST 650 XT MAX 16/42 CV, 11,6/31 KW 1CIL. - BASTIDORES: --- 2004-2005
BOMBARDIER TRAXTER 500 19,5 CV, 14,3 KW 1CIL. - BASTIDORES: --- 2004-2005
BOMBARDIER TRAXTER 500 MAX 19,5 CV, 14,3 KW 1CIL. - BASTIDORES: --- 2003-2005
BOMBARDIER TRAXTER 500 XL 19,5 CV, 14,3 KW 1CIL. - BASTIDORES: --- 2004-2005
BOMBARDIER TRAXTER 500 XT 19,5 CV, 14,3 KW 1CIL. - BASTIDORES: --- 2004-2005
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which erodes in the area of the contact patch of the brake pads during braking. Only in this area can the form more easily oxidize during the long life.
The brake discs are perforated in Vogelschwingendesign to fit with as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes installed, the better the wet braking performance and the less wear.
- Brake ring machined in HPSR low carbon forged steel.
- Therefore, there is no distortion of the brake disc even at maximum load.
- Without vitrification of the braking surface, the coefficient of friction remains constant.
- Drilled brake surface with optimized hole pattern.
- Galvanized for protection against corrosion.
- Lower manufacturing tolerances.
- For the best braking performance, EBC recommends EBC Double-H Sinter brake pads.
- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 82.3MM
CIRCLE SIZE: 103 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 9 MM
thickness: 5mm
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BOMBARDIER QUEST 650 16/42 CV, 11,6/31 KW 1CIL. - BASTIDORES: --- 2002-2004
BOMBARDIER QUEST 650 MAX 16/42 CV, 11,6/31 KW 1CIL. - BASTIDORES: --- 2004-2005
BOMBARDIER QUEST 650 XT MAX 16/42 CV, 11,6/31 KW 1CIL. - BASTIDORES: --- 2004-2005
BOMBARDIER TRAXTER 500 19,5 CV, 14,3 KW 1CIL. - BASTIDORES: --- 2004-2005
BOMBARDIER TRAXTER 500 MAX 19,5 CV, 14,3 KW 1CIL. - BASTIDORES: --- 2003-2005
BOMBARDIER TRAXTER 500 XL 19,5 CV, 14,3 KW 1CIL. - BASTIDORES: --- 2004-2005
BOMBARDIER TRAXTER 500 XT 19,5 CV, 14,3 KW 1CIL. - BASTIDORES: --- 2004-2005
760.02.92
10 Items
Data sheet
- INSIDE DIAMETER
- 103MM
- VERSION
- RIGID
- QUANTITY OF HOLES
- 4
- EXTERNAL DIAMETER
- 220 MM
- CIRCLE MEASUREMENT
- 103MM
- HOLE DIAMETER
- 9MM
- THICKNESS
- 5 MM
