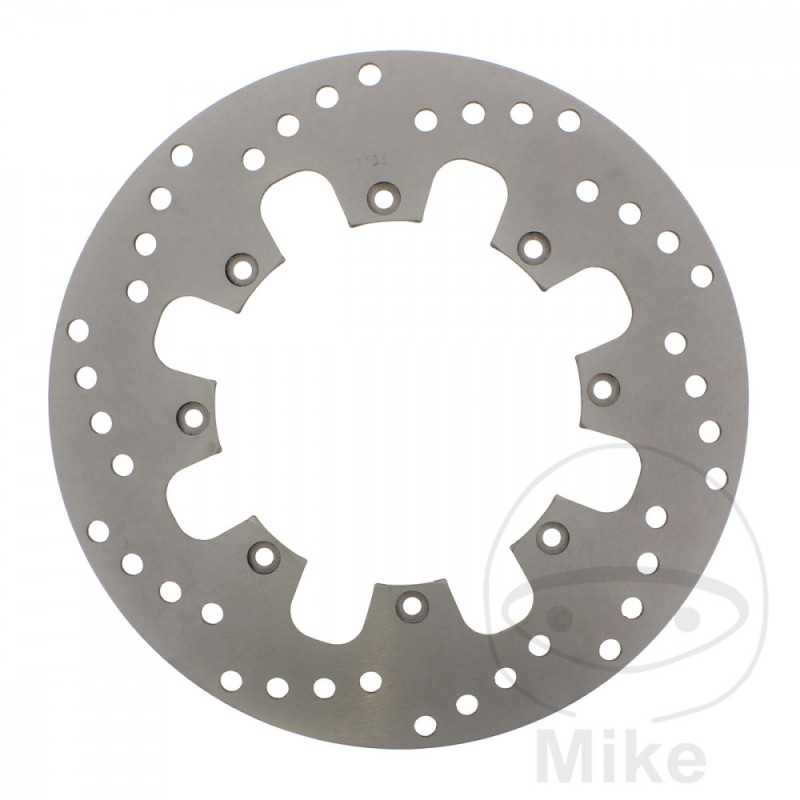

EBC Stainless steel brake disc for motorcycle 760.02.84

EBC HPSR brake disc, rigid version. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which erodes in the area of the contact patch of the brake pads during braking. Only in this area can the form more easily oxidize during the long life.

The brake discs are perforated in Vogelschwingendesign to fit with as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes installed, the better the wet braking performance and the less wear.

- Brake ring machined in HPSR low carbon forged steel.

- Therefore, there is no distortion of the brake disc even at maximum load.

- Without vitrification of the braking surface, the coefficient of friction remains constant.

- Drilled brake surface with optimized hole pattern.

- Galvanized for protection against corrosion.

- Lower manufacturing tolerances.

- For the best braking performance, EBC recommends EBC Double-H Sinter brake pads.

- Independent design.
OUTER DIAMETER: 250MM
INSIDE DIAMETER: 130.2MM
CIRCLE SIZE: 146 MM
HOLES QUANTITY: 8
HOLE DIAMETER: 6.5 MM
THICKNESS: 3.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki KDX 200 C 37 CV, 28 kw 1cil. - 1 Bastidores: --- 1986
Kawasaki KDX 200 C 37 CV, 28 kw 1cil. - 2 Bastidores: --- 1987
Kawasaki KDX 200 C 37 CV, 28 kw 1cil. - 3 Bastidores: --- 1988
Kawasaki KX 125 D 1cil. - 1 Bastidores: --- 1985
Kawasaki KX 125 E 1cil. - 1 Bastidores: --- 1986
Kawasaki KX 125 E 1cil. - 2 Bastidores: --- 1987
Kawasaki KX 125 F 1cil. KX125F 1 Bastidores: KX125F henceforth00001-KX125F-999999 1988
Kawasaki KX 250 D 1cil. - 1 Bastidores: --- 1985
Kawasaki KX 250 D 1cil. - 2 Bastidores: --- 1986
Kawasaki KX 250 E 1cil. - 1 Bastidores: --- 1987
Kawasaki KX 250 F 2T 1cil. KX250F 1 Bastidores: KX250F henceforth00001-KX250F-999999 1988
Kawasaki KX 500 B 1cil. - 1 Bastidores: --- 1985
Kawasaki KX 500 B 1cil. - 2 Bastidores: --- 1986
Kawasaki KX 500 C 1cil. - 1 Bastidores: --- 1987
Kawasaki KX 500 D 1cil. KX500D 1 Bastidores: KX500D henceforth00001-KX500D-999999 1988
