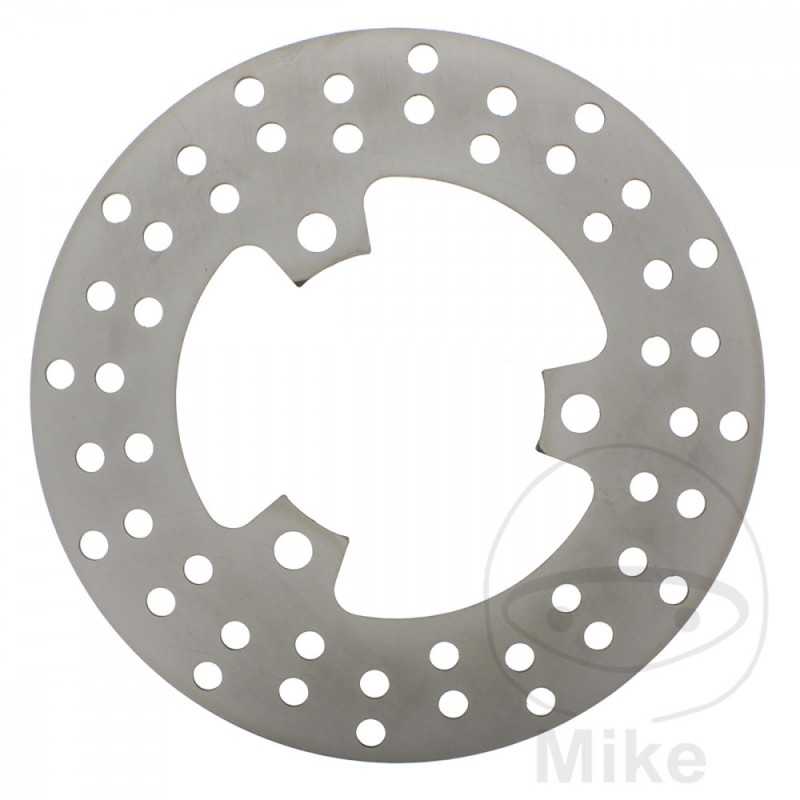

EBC Stainless steel brake disc for motorcycle 760.02.72
€72.45
€85.96
Save 15.71%Tax included
EBC HPSR brake disc, rigid version. MADE IN THE UK.
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.
The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.
- Brake ring machined from forged HPSR low carbon steel.
- Therefore, there is no distortion of the brake disc even at maximum load.
- Without vitrification of the braking surface, the coefficient of friction remains constant.
- Drilled brake surface with optimized hole pattern.
- Galvanized for protection against corrosion.
- Lower manufacturing tolerances.
- For the best braking performance, EBC recommends EBC Double-H Sinter brake pads.
- Independent design.
OUTSIDE DIAMETER: 200MM
INSIDE DIAMETER: 80.2MM
CIRCLE SIZE: 100 MM
QUANTITY OF HOLES: 3
HOLE DIAMETER: 10.5 MM
THICKNESS: 3.5MM
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki KLF 300 C Bayou 4WD 19,5 CV, 14,3 kw 1cil. LF300CCB 12 Bastidores: LF300CCB-609501-LF300CCB-610500 2000
Kawasaki KLF 300 C Bayou 4WD 19,5 CV, 14,3 kw 1cil. LF300CCB 13 Bastidores: LF300CCB-610501-LF300CCB-611300 2001
Kawasaki KLF 300 C Bayou 4WD 19,5 CV, 14,3 kw 1cil. LF300CCB 14 Bastidores: LF300CCB-611301-LF300CCB-999999 2002
Kawasaki KLF 300 C Bayou 4WD 19,5 CV, 14,3 kw 1cil. LF300CCB 15 Bastidores: LF300CCB-612001-LF300CCB-612600 2003
Kawasaki KLF 300 C Bayou 4WD 20 CV, 14,7 kw 1cil. LF300CCB 16 Bastidores: LF300CCB-612601-LF300CCB-613299 2004
Kawasaki KLF 300 C Bayou 4WD 20 CV, 14,7 kw 1cil. LF300CCB 17 Bastidores: LF300CCB-613300-LF300CCB-999999 2005
Kawasaki KLF 300 C Bayou 4WD 20 CV, 14,7 kw 1cil. LF300CCB 6F Bastidores: LF300CCB-613901-LF300CCB-999999 2006
Kawasaki KVF 300 A Prairie 4WD 1cil. - 4 Bastidores: --- 2002
Kawasaki KVF 300 A Prairie 4WD 1cil. VF300AAB 2 Bastidores: VF300AAB-600001-VF300AAB-600700 2000
Kawasaki KVF 300 A Prairie 4WD 1cil. VF300AAB 3 Bastidores: VF300AAB-600700-VF300AAB-999999 2001
Kawasaki KVF 300 B Prairie 2WD 1cil. VF300BBB 2 Bastidores: VF300BBB-600001-VF300BBB-600500 2000
Kawasaki KVF 300 B Prairie 2WD 1cil. VF300BBB 3 Bastidores: VF300BBB-600501-VF300BBB-601100 2001
Kawasaki KVF 300 B Prairie 2WD 1cil. VF300BBB 4 Bastidores: VF300BBB-601101-VF300BBB-999999 2002
Kawasaki KVF 400 C Prairie 4WD 29 CV, 21,4 kw 1cil. VF400CCB 2 Bastidores: VF400CCB-600801-VF400CCB-602200 2000
Kawasaki KVF 400 C Prairie 4WD 29 CV, 21,4 kw 1cil. VF400CCB 3 Bastidores: VF400CCB-602201-VF400CCB-603300 2001
Kawasaki KVF 400 C Prairie 4WD 29 CV, 21,4 kw 1cil. VF400CCB 4 Bastidores: VF400CCB-603301-VF400CCB-999999 2002
Kawasaki KVF 400 D Prairie 2WD 29 CV, 21,4 kw 1cil. VF400DDB 2 Bastidores: VF400DDB-600601-VF400DDB-601100 2000
Kawasaki KVF 400 D Prairie 2WD 29 CV, 21,4 kw 1cil. VF400DDB 3 Bastidores: VF400DDB-601101-VF400DDB-601700 2001
Kawasaki KVF 400 D Prairie 2WD 29 CV, 21,4 kw 1cil. VF400DDB 4 Bastidores: VF400DDB-601701-VF400DDB-999999 2002
The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.
The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.
- Brake ring machined from forged HPSR low carbon steel.
- Therefore, there is no distortion of the brake disc even at maximum load.
- Without vitrification of the braking surface, the coefficient of friction remains constant.
- Drilled brake surface with optimized hole pattern.
- Galvanized for protection against corrosion.
- Lower manufacturing tolerances.
- For the best braking performance, EBC recommends EBC Double-H Sinter brake pads.
- Independent design.
OUTSIDE DIAMETER: 200MM
INSIDE DIAMETER: 80.2MM
CIRCLE SIZE: 100 MM
QUANTITY OF HOLES: 3
HOLE DIAMETER: 10.5 MM
THICKNESS: 3.5MM
VERSION: RIGID
APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki KLF 300 C Bayou 4WD 19,5 CV, 14,3 kw 1cil. LF300CCB 12 Bastidores: LF300CCB-609501-LF300CCB-610500 2000
Kawasaki KLF 300 C Bayou 4WD 19,5 CV, 14,3 kw 1cil. LF300CCB 13 Bastidores: LF300CCB-610501-LF300CCB-611300 2001
Kawasaki KLF 300 C Bayou 4WD 19,5 CV, 14,3 kw 1cil. LF300CCB 14 Bastidores: LF300CCB-611301-LF300CCB-999999 2002
Kawasaki KLF 300 C Bayou 4WD 19,5 CV, 14,3 kw 1cil. LF300CCB 15 Bastidores: LF300CCB-612001-LF300CCB-612600 2003
Kawasaki KLF 300 C Bayou 4WD 20 CV, 14,7 kw 1cil. LF300CCB 16 Bastidores: LF300CCB-612601-LF300CCB-613299 2004
Kawasaki KLF 300 C Bayou 4WD 20 CV, 14,7 kw 1cil. LF300CCB 17 Bastidores: LF300CCB-613300-LF300CCB-999999 2005
Kawasaki KLF 300 C Bayou 4WD 20 CV, 14,7 kw 1cil. LF300CCB 6F Bastidores: LF300CCB-613901-LF300CCB-999999 2006
Kawasaki KVF 300 A Prairie 4WD 1cil. - 4 Bastidores: --- 2002
Kawasaki KVF 300 A Prairie 4WD 1cil. VF300AAB 2 Bastidores: VF300AAB-600001-VF300AAB-600700 2000
Kawasaki KVF 300 A Prairie 4WD 1cil. VF300AAB 3 Bastidores: VF300AAB-600700-VF300AAB-999999 2001
Kawasaki KVF 300 B Prairie 2WD 1cil. VF300BBB 2 Bastidores: VF300BBB-600001-VF300BBB-600500 2000
Kawasaki KVF 300 B Prairie 2WD 1cil. VF300BBB 3 Bastidores: VF300BBB-600501-VF300BBB-601100 2001
Kawasaki KVF 300 B Prairie 2WD 1cil. VF300BBB 4 Bastidores: VF300BBB-601101-VF300BBB-999999 2002
Kawasaki KVF 400 C Prairie 4WD 29 CV, 21,4 kw 1cil. VF400CCB 2 Bastidores: VF400CCB-600801-VF400CCB-602200 2000
Kawasaki KVF 400 C Prairie 4WD 29 CV, 21,4 kw 1cil. VF400CCB 3 Bastidores: VF400CCB-602201-VF400CCB-603300 2001
Kawasaki KVF 400 C Prairie 4WD 29 CV, 21,4 kw 1cil. VF400CCB 4 Bastidores: VF400CCB-603301-VF400CCB-999999 2002
Kawasaki KVF 400 D Prairie 2WD 29 CV, 21,4 kw 1cil. VF400DDB 2 Bastidores: VF400DDB-600601-VF400DDB-601100 2000
Kawasaki KVF 400 D Prairie 2WD 29 CV, 21,4 kw 1cil. VF400DDB 3 Bastidores: VF400DDB-601101-VF400DDB-601700 2001
Kawasaki KVF 400 D Prairie 2WD 29 CV, 21,4 kw 1cil. VF400DDB 4 Bastidores: VF400DDB-601701-VF400DDB-999999 2002
760.02.72
10 Items
Data sheet
- VERSION
- RIGID
- QUANTITY OF HOLES
- 3
- EXTERNAL DIAMETER
- 200 MM
- CIRCLE MEASUREMENT
- 100 MM
- HOLE DIAMETER
- 10.5MM
- INSIDE DIAMETER
- 100 MM
- THICKNESS
- 3.5 MM
