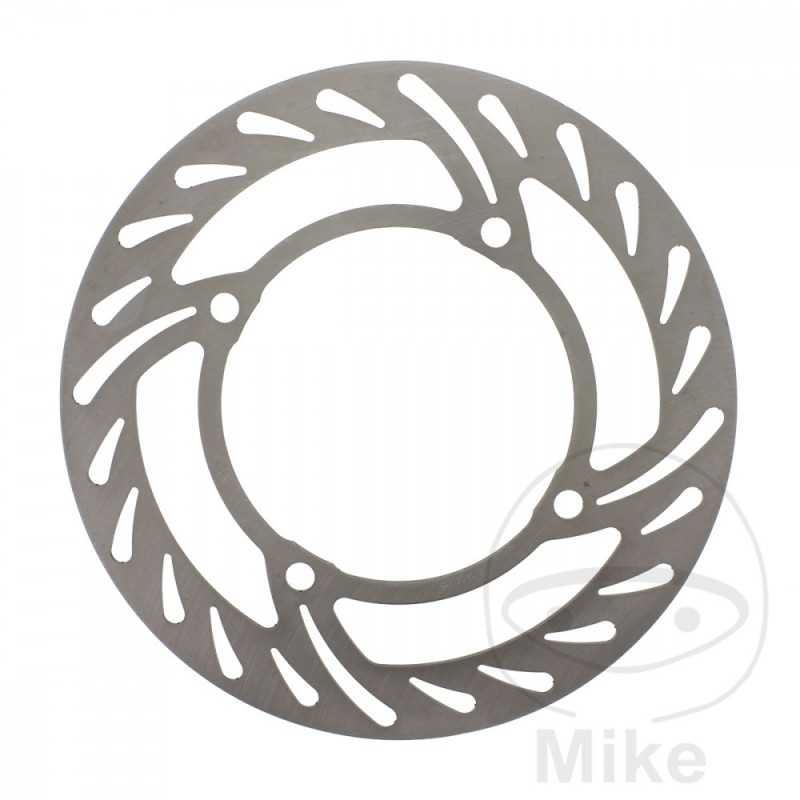

EBC Stainless steel brake disc for motorcycle 760.02.42

EBC HPSR brake disc, rigid version. MADE IN THE UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.

The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.

- Brake ring machined from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even at maximum load.

- Without vitrification of the braking surface, the coefficient of friction remains constant.

- Drilled brake surface with optimized hole pattern.

- Galvanized for protection against corrosion.

- Lower manufacturing tolerances.

- For the best braking performance, EBC recommends EBC Double-H Sinter brake pads.

- Independent design.
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 121.2MM
CIRCLE SIZE: 140 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CR 125 R 41 CV, 30 KW 1CIL. JE01A 1 BASTIDORES: JH2 JE01A-1M500001-- 2001
HONDA CR 125 R 41 CV, 30 KW 1CIL. JE01A W BASTIDORES: JE01A-WM200001-- 1998
HONDA CR 125 R 41 CV, 30 KW 1CIL. JE01A X BASTIDORES: JE01A-XM300001-- 1999
HONDA CR 125 R 41 CV, 30 KW 1CIL. JE01A Y BASTIDORES: JH2 JE01A-YM400001-- 2000
HONDA CR 250 R 58 CV, 43 KW 1CIL. ME03A 1 BASTIDORES: JH2 ME03A-1M500001-- 2001
HONDA CR 250 R 58 CV, 43 KW 1CIL. ME03A V BASTIDORES: JH2 ME03A-VM100001-JH2 ME03A-VM103705 1997
HONDA CR 250 R 58 CV, 43 KW 1CIL. ME03A W BASTIDORES: JH2 ME03A-WM200001-- 1998
HONDA CR 250 R 58 CV, 43 KW 1CIL. ME03A X BASTIDORES: JH2 ME03A-XM300001-- 1999
HONDA CR 250 R 58 CV, 43 KW 1CIL. ME03A Y BASTIDORES: JH2 ME03A-YM400001-- 2000
