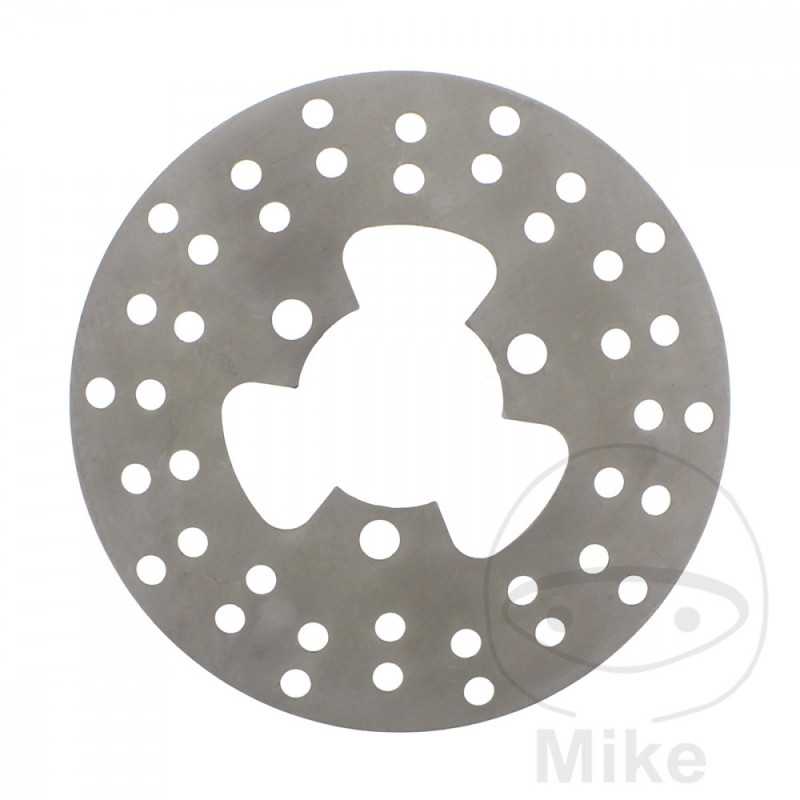

EBC Stainless steel brake disc for motorcycle 760.02.41

EBC HPSR brake disc, rigid version. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which erodes in the area of the contact patch of the brake pads during braking. Only in this area can the form more easily oxidize during the long life.

The brake discs are perforated in Vogelschwingendesign to fit with as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes installed, the better the wet braking performance and the less wear.

- Brake ring machined in HPSR low carbon forged steel.

- Therefore, there is no distortion of the brake disc even at maximum load.

- Without vitrification of the braking surface, the coefficient of friction remains constant.

- Drilled brake surface with optimized hole pattern.

- Galvanized for protection against corrosion.

- Lower manufacturing tolerances.

- For the best braking performance, EBC recommends EBC Double-H Sinter brake pads.

- Independent design.
OUTER DIAMETER: 174MM
INSIDE DIAMETER: 54.2MM
CIRCLE SIZE: 72 MM
QUANTITY OF HOLES: 3
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda TRX 250 EX Sportrax 1cil. TE270 1 Bastidores: 478 TE270-14000001-478 TE270-14015200 2001
Honda TRX 250 EX Sportrax 1cil. TE270 2 Bastidores: 478 TE270-24100001-478 TE270-24199999 2002
Honda TRX 250 EX Sportrax 1cil. TE270 3 Bastidores: 478 TE270-34200001-478 TE270-34299999 2003
Honda TRX 250 EX Sportrax 1cil. TE272 1 Bastidores: 478 TE272-14000001-478 TE272-14015200 2001
Honda TRX 250 EX Sportrax 1cil. TE272 2 Bastidores: 478 TE272-24100001-478 TE272-24199999 2002
Honda TRX 250 EX Sportrax 1cil. TE272 3 Bastidores: 478 TE272-34200001-478 TE272-34299999 2003
Honda TRX 250 EX Sportrax 1cil. TE27U 3 Bastidores: 478 TE27U-34300001-478 TE27U-34399999 2003
Honda TRX 250 EX Sportrax 1cil. TE27U 4 Bastidores: 478 TE27U-44300001-478 TE27U-44399999 2004
Honda TRX 250 EX Sportrax 1cil. TE27U 5 Bastidores: 1HF TE27U-54400001-1HF TE27U-54499999 2005
Honda TRX 250 EX Sportrax 1cil. TE27U 6 Bastidores: 1HF TE27U-64500001-1HF TE27U-64599999 2006
Honda TRX 250 EX Sportrax 1cil. TE27U 7 Bastidores: 1HF TE27U-74600001-1HF TE27U-74699999 2007
Honda TRX 250 EX Sportrax 1cil. TE27U 8 Bastidores: 1HF TE27U-84700001-- 2008
Honda TRX 250 X Sportrax 1cil. TE273 A Bastidores: 1HF TE273-A4900001-1HF TE273-A4999999 2010
Honda TRX 250 X Sportrax 1cil. TE273 B Bastidores: 1HF TE273-B4100001-1HF TE273-B4199999 2011
Honda TRX 250 X Sportrax 1cil. TE273 C Bastidores: 1HF TE273-C4200001-1HF TE273-B4299999 2012
Honda TRX 300 EX Sportrax 1cil. - 7 Bastidores: --- 2007
Honda TRX 300 EX Sportrax 1cil. - 8 Bastidores: --- 2008
Honda TRX 300 EX Sportrax 1cil. TE190 1 Bastidores: JH3 TE190-1K600001-- 2001
Honda TRX 300 EX Sportrax 1cil. TE190 2 Bastidores: JH3 TE190-2K700001-- 2002
Honda TRX 300 EX Sportrax 1cil. TE190 3 Bastidores: JH3 TE190-3K800001-- 2003
Honda TRX 300 EX Sportrax 1cil. TE190 4 Bastidores: JH3 TE190-4K900001-JH3 TE190-4K999999 2004
Honda TRX 300 EX Sportrax 1cil. TE190 5 Bastidores: JH2 TE190-5K000001-JH2 TE190-5K099999 2005
Honda TRX 300 EX Sportrax 1cil. TE190 6 Bastidores: JH2 TE190-6K100001-- 2006
Honda TRX 300 EX Sportrax 1cil. TE190 Y Bastidores: TE190-YK500001-- 2000
Honda TRX 300 EX Sportrax 1cil. TE192 1 Bastidores: JH3 TE192-1K600001-- 2001
Honda TRX 300 EX Sportrax 1cil. TE192 2 Bastidores: JH3 TE192-2K700001-- 2002
Honda TRX 300 EX Sportrax 1cil. TE192 3 Bastidores: JH3 TE192-3K800001-- 2003
Honda TRX 300 EX Sportrax 1cil. TE192 4 Bastidores: JH3 TE192-4K900001-JH3 TE192-4K999999 2004
Honda TRX 300 EX Sportrax 1cil. TE192 5 Bastidores: JH2 TE192-5K000001-JH2 TE192-5K099999 2005
Honda TRX 300 EX Sportrax 1cil. TE192 6 Bastidores: JH2 TE192-6K100001-- 2006
Honda TRX 700 XX 54 CV, 40 kw 1cil. TE36A B Bastidores: JH2TE36A-BK000001-- 2011
Honda TRX 700 XX 54 CV, 40 kw 1cil. TE36U 8 Bastidores: JH2 TE36U-8K000001-JH2 TE36U-8K099999 2008
Honda TRX 700 XX 54 CV, 40 kw 1cil. TE36U 9 Bastidores: JH2 TE36U-9K100001-- 2009
