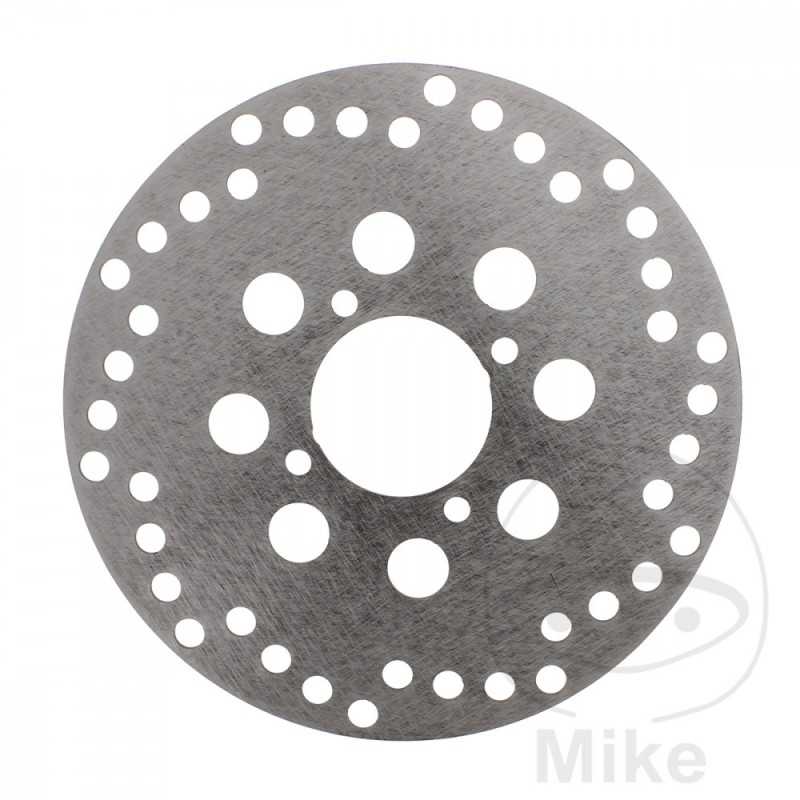

EBC Stainless steel brake disc for motorcycle 760.02.37

EBC HPSR brake disc, rigid version. MADE IN THE UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.

The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.

- Brake ring machined from forged HPSR low carbon steel.

- Therefore, there is no distortion of the brake disc even at maximum load.

- Without vitrification of the braking surface, the coefficient of friction remains constant.

- Drilled brake surface with optimized hole pattern.

- Galvanized for protection against corrosion.

- Lower manufacturing tolerances.

- For the best braking performance, EBC recommends EBC Double-H Sinter brake pads.

- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 58.4MM
CIRCLE SIZE: 76 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 8.5 MM
THICKNESS: 3.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha YFM 400 FWA Kodiak 4WD 27 CV, 20 kw 1cil. AJ03W 5GH4 Bastidores: AJ03W henceforth05557-- 2000
Yamaha YFM 400 FWA Kodiak 4WD 27 CV, 20 kw 1cil. AJ03W 5GHH Bastidores: AJ03W henceforth33763-- 2001
Yamaha YFM 450 FAS Wolverine 1cil. AJ21W 3C23 Bastidores: AJ21W-500001-- 2006
Yamaha YFM 450 FAS Wolverine 1cil. AJ21W 3C26 Bastidores: AJ21W-502908-- 2007
Yamaha YFM 450 FAS Wolverine 1cil. AJ21W 3C2C Bastidores: AJ21W-503101-- 2008
Yamaha YFM 450 FAS Wolverine 1cil. AJ21W 3C2J Bastidores: AJ21W-503301-- 2009
Yamaha YFM 450 FAS Wolverine 1cil. AJ21W 3C2M Bastidores: AJ21W-500023-- 2010-2011
Yamaha YFM 450 FAS Wolverine Special Edition 1cil. AJ23W 3C29 Bastidores: --- 2007
Yamaha YFM 450 FAS Wolverine Special Edition 1cil. AJ23W 3C2F Bastidores: AJ23W-500401-- 2008
Yamaha YFM 450 FWAN Kodiak 27 CV, 20 kw 1cil. AJ06W 5ND3 Bastidores: AJ06W henceforth01101-- 2003
Yamaha YFM 450 FWAN Kodiak 27 CV, 20 kw 1cil. AJ06W 5NDA Bastidores: AJ06W-500101-- 2004
