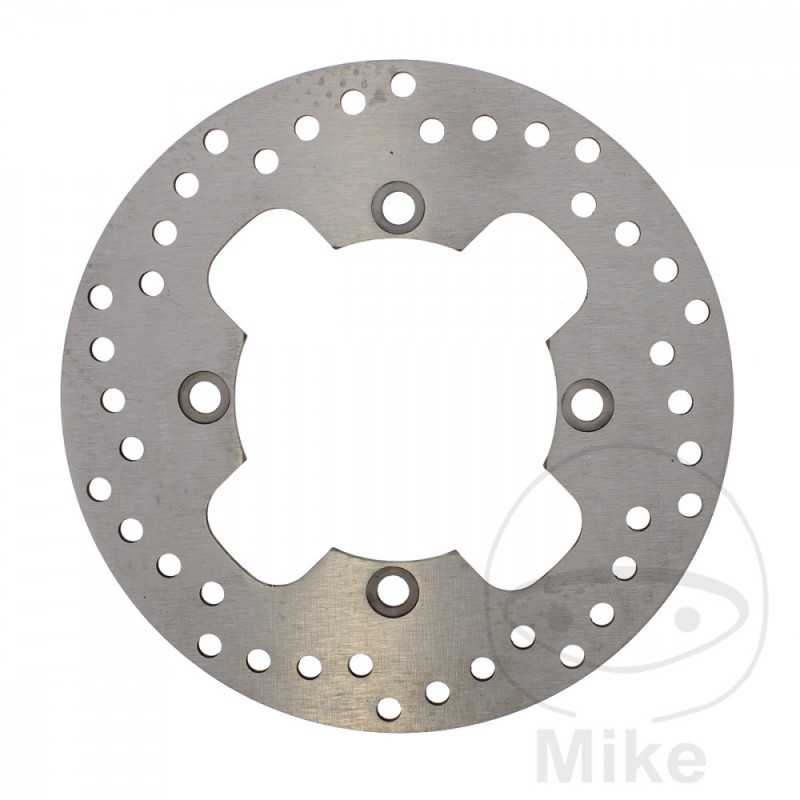

EBC Stainless steel brake disc for motorcycle 760.02.18

EBC HPSR brake disc, rigid version. MADE IN UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses low carbon HPSR steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which erodes in the area of the contact patch of the brake pads during braking. Only in this area can the form more easily oxidize during the long life.

The brake discs are perforated in Vogelschwingendesign to fit with as few holes as possible while optimizing the cleaning of the brake disc from rainwater and brake dust. The fewer holes installed, the better the wet braking performance and the less wear.

- Brake ring machined in HPSR low carbon forged steel.

- Therefore, there is no distortion of the brake disc even at maximum load.

- Without vitrification of the braking surface, the coefficient of friction remains constant.

- Drilled brake surface with optimized hole pattern.

- Galvanized for protection against corrosion.

- Lower manufacturing tolerances.

- For the best braking performance, EBC recommends EBC Double-H Sinter brake pads.

- Independent design.
OUTSIDE DIAMETER: 220MM
INSIDE DIAMETER: 105.2MM
CIRCLE SIZE: 125 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA TRX 400 EX FOURTRAX 34 CV, 25 KW 1CIL. TE230 1 BASTIDORES: 478 TE230-14100001-478 TE230-14199999 2001
HONDA TRX 400 EX FOURTRAX 34 CV, 25 KW 1CIL. TE230 X BASTIDORES: 478 TE230-XA000001-478 TE230-XA099999 1999
HONDA TRX 400 EX FOURTRAX 34 CV, 25 KW 1CIL. TE230 Y BASTIDORES: 478 TE230-Y4000001-478 TE230-Y4099999 2000
HONDA TRX 400 EX FOURTRAX 34 CV, 25 KW 1CIL. TE232 1 BASTIDORES: 478 TE232-14100001-478 TE232-14199999 2001
HONDA TRX 400 EX FOURTRAX 34 CV, 25 KW 1CIL. TE232 X BASTIDORES: 478 TE232-XA000001-478 TE232-XA099999 1999
HONDA TRX 400 EX FOURTRAX 34 CV, 25 KW 1CIL. TE232 Y BASTIDORES: 478 TE232-Y4000001-478 TE232-Y4099999 2000
HONDA TRX 400 EX SPORTRAX 34 CV, 25 KW 1CIL. TE230 2 BASTIDORES: 478 TE230-24200001-478 TE230-24299999 2002
HONDA TRX 400 EX SPORTRAX 34 CV, 25 KW 1CIL. TE230 3 BASTIDORES: 478 TE230-34300001-478 TE230-34399999 2003
HONDA TRX 400 EX SPORTRAX 34 CV, 25 KW 1CIL. TE232 2 BASTIDORES: 478 TE232-24200001-478 TE232-24299999 2002
HONDA TRX 400 EX SPORTRAX 34 CV, 25 KW 1CIL. TE232 3 BASTIDORES: 478 TE232-34300001-478 TE232-34399999 2003
HONDA TRX 400 EX SPORTRAX 34 CV, 25 KW 1CIL. TE23U 3 BASTIDORES: 478 TE23U-34300001-478 TE23U-34399999 2003
HONDA TRX 400 EX SPORTRAX 34 CV, 25 KW 1CIL. TE23U 4 BASTIDORES: 478 TE23U-44400001-478 TE23U-44499999 2004
HONDA TRX 400 EX SPORTRAX 34 CV, 25 KW 1CIL. TE23U 5 BASTIDORES: 1HF TE23U-54500001-1HF TE23U-54599999 2005
HONDA TRX 400 EX SPORTRAX 34 CV, 25 KW 1CIL. TE23U 6 BASTIDORES: 1HF TE23U-64600001-- 2006
HONDA TRX 400 EX SPORTRAX 35 CV, 25,4 KW 1CIL. TE23U 7 BASTIDORES: 1HF TE23U-74700001-1HF TE23U-74799999 2007
HONDA TRX 400 EX SPORTRAX 35 CV, 25,4 KW 1CIL. TE23U 8 BASTIDORES: 1HF TE23U-84800001-1HF TE23U-84899999 2008
