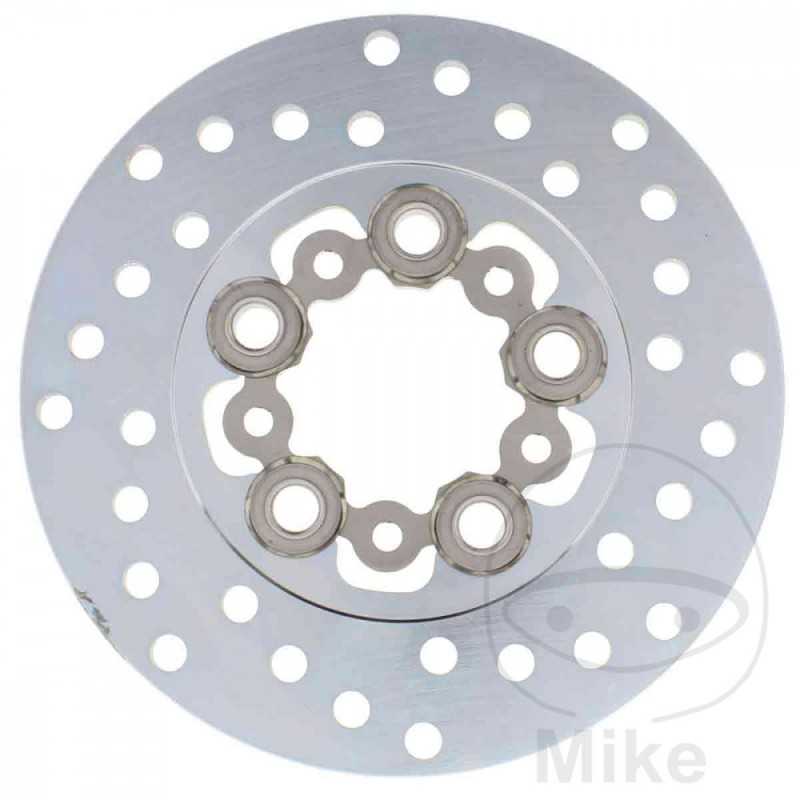

EBC Stainless steel brake disc for motorcycle 760.00.58

EBC MX brake disc for offroad / enduro and ATV. MADE IN THE UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.

The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of heat-treated carbon steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sport drivers EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTSIDE DIAMETER: 170MM
INSIDE DIAMETER: 46.2MM
CIRCLE SIZE: 65 MM
HOLES QUANTITY: 5
HOLE DIAMETER: 6.5 MM
THICKNESS: 7.5MM
VERSION: FLOATING


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda TRX 420 FA Fourtrax AT DCT 26 CV, 19 kw 1cil. TE37E A Bastidores: 1HF TE37E-A4100001-1HF TE37E-A4149999 2010
Honda TRX 420 FA Fourtrax AT DCT 26 CV, 19 kw 1cil. TE37E B Bastidores: 1HF TE37E-B4200001-- 2011
Honda TRX 420 FA Fourtrax AT DCT 26 CV, 19 kw 1cil. TE37E C Bastidores: --- 2012
Honda TRX 420 FA Fourtrax AT DCT 26 CV, 19 kw 1cil. TE37E D Bastidores: 1HF TE37E-D4400001-- 2013
Honda TRX 650 FA Fourtrax Rincon AT 31 CV, 22,8 kw 1cil. TE28U 3 Bastidores: 478 TE28U-3A000001-478 TE28U-3A099999 2003
Honda TRX 650 FA Fourtrax Rincon AT 31 CV, 22,8 kw 1cil. TE28U 4 Bastidores: 478 TE28U-4A100001-478 TE28U-4A199999 2004
Honda TRX 650 FA Fourtrax Rincon AT 31 CV, 22,8 kw 1cil. TE28U 5 Bastidores: 1HF TE28U-54000001-- 2005
Honda TRX 680 FA Fourtrax Rincon AT 1cil. TE33E J Bastidores: 1HF TE33E-J4300001-1HF TE33E-J4399999 2018-2021
Honda TRX 680 FA Fourtrax Rincon AT 33,8 CV, 24,8 kw 1cil. TE33E A Bastidores: 1HF TE33E-A4500001-1HF TE33E-A4599999 2010
Honda TRX 680 FA Fourtrax Rincon AT 33,8 CV, 24,8 kw 1cil. TE33E B Bastidores: 1HF TE33E-B4500001-1HF TE33E-B4699999 2011
Honda TRX 680 FA Fourtrax Rincon AT 33,8 CV, 24,8 kw 1cil. TE33E C Bastidores: 1HF TE33E-C4700001-- 2012-2013
Honda TRX 680 FA Fourtrax Rincon AT 33,8 CV, 24,8 kw 1cil. TE33E E Bastidores: 1HF TE33E-E4900001-1HF TE33E-E4999999 2014
Honda TRX 680 FA Fourtrax Rincon AT 33,8 CV, 24,8 kw 1cil. TE33E F Bastidores: 1HF TE33E-F4000001-1HF TE33E-F4099999 2015
Honda TRX 680 FA Fourtrax Rincon AT 33,8 CV, 24,8 kw 1cil. TE33E G Bastidores: 1HF TE33E-G4100001-1HF TE33E-G4199999 2016
Honda TRX 680 FA Fourtrax Rincon AT 33,8 CV, 24,8 kw 1cil. TE33E H Bastidores: 1HF TE33E-H4200001-1HF TE33E-H4299999 2017
Honda TRX 680 FA Fourtrax Rincon AT 33,8 CV, 24,8 kw 1cil. TE33U 6 Bastidores: 1HF TE33U-64100001-1HF TE33U-64199999 2006
Honda TRX 680 FA Fourtrax Rincon AT 33,8 CV, 24,8 kw 1cil. TE33U 7 Bastidores: 1HF TE33U-74200001-1HF TE33U-74299999 2007
Honda TRX 680 FA Fourtrax Rincon AT 33,8 CV, 24,8 kw 1cil. TE33U 8 Bastidores: 1HF TE33U-84300001-1HF TE33U-84399999 2008
Honda TRX 680 FA Fourtrax Rincon AT 33,8 CV, 24,8 kw 1cil. TE33U 9 Bastidores: 1HF TE33U-94400001-1HF TE33U-94499999 2009
