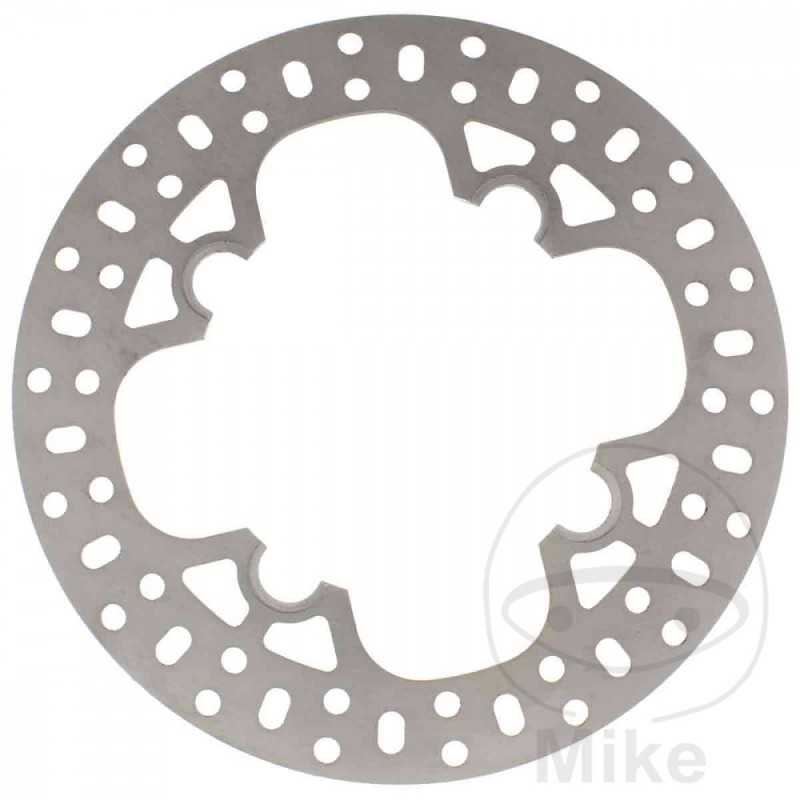

EBC Stainless steel brake disc for motorcycle 760.00.55

EBC MX brake disc for offroad / enduro and ATV. MADE IN THE UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.

The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of heat-treated carbon steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sport drivers EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 240MM
INSIDE DIAMETER: 126.2MM
CIRCLE SIZE: 130 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 19.2 MM
thickness: 4mm
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Husqvarna CR 125 1cil. 2H00AA Bastidores: ZCG 2H00AA-6V050001-ZCG 2H00AA-6V050300 2006
Husqvarna CR 125 1cil. 2H00AA Bastidores: ZCG 2H00AA-7V050001-- 2007
Husqvarna CR 125 1cil. 2H00AA Bastidores: ZCG 2H00AA-8V050001-ZCG 2H00AA-8V059999 2008
Husqvarna SM 450 R euro2 50 CV, 37 kw 1cil. H812AB Bastidores: ZCG H812AB-7V000001-- 2007
Husqvarna SM 450 R euro3 50 CV, 37 kw 1cil. H812AB Bastidores: ZCG H812AB-7V003338-- 2007
Husqvarna SM 450 R ie 50 CV, 37 kw 1cil. A202AB Bastidores: ZKH A202AB-8V000001-- 2008
Husqvarna SM 450 R ie 50 CV, 37 kw 1cil. A202AB Bastidores: ZKH A202AB-9V000001-- 2009
Husqvarna SM 450 R ie 50 CV, 37 kw 1cil. A202AB Bastidores: ZKH A202AB-AV000001-- 2010
Husqvarna SM 510 R 58 CV, 43 kw 1cil. H813AB Bastidores: ZCG H813AB-6V001670-ZCGH813AB-6V003328 2006
Husqvarna SM 510 R euro2 58 CV, 43 kw 1cil. H813AB Bastidores: ZCG H813AB-7V000001-- 2007
Husqvarna SM 510 R euro3 58 CV, 43 kw 1cil. H813AB Bastidores: ZCG H813AB-7V003340-- 2007
Husqvarna SM 510 R ie 58 CV, 43 kw 1cil. A203AB Bastidores: ZKH A203AB-8V000001-- 2008
Husqvarna SM 510 R ie 58 CV, 43 kw 1cil. A203AB Bastidores: ZKH A203AB-9V000001-- 2009
Husqvarna SM 510 R ie 58 CV, 43 kw 1cil. A203AB Bastidores: ZKH A203AB-AV000001-- 2010
Husqvarna SM 610 S ie arranque eléctrico 30 CV, 22 kw 1cil. A101AB Bastidores: ZCG A101AB-7V006000-- 2007
Husqvarna SM 610 S ie arranque eléctrico 53 CV, 39 kw 1cil. A1AFEKP Bastidores: ZCG A1AFEKP-7V40000-- 2007
Husqvarna TC 250 4T 1cil. A200AA Bastidores: ZKH A200AA-8V050001-- 2008
Husqvarna TC 250 4T 1cil. H810AA Bastidores: ZCG H810AA-6V050002-ZCGH810AA-6V050307 2006
Husqvarna TC 250 4T 1cil. H810AA Bastidores: ZCG H810AA-7V050001-- 2007
Husqvarna TC 250 4T 31 CV, 23 kw 1cil. H800AA Bastidores: ZCG H800AA-5V052000-ZCGH800AA-5V052547 2005
Husqvarna TC 450 1cil. A202AA Bastidores: ZKH A202AA-8V050001-- 2008
Husqvarna TC 450 1cil. A202AA Bastidores: ZKH A202AA-9V050001-- 2009
Husqvarna TC 450 1cil. A202AA Bastidores: ZKH A202AA-AV050001-- 2010
Husqvarna TC 450 1cil. H812AA Bastidores: ZCG H812AA-6V050108-ZCGH812AA-6V050764 2006
Husqvarna TC 450 1cil. H812AA Bastidores: ZCG H812AA-7V050001-- 2007
Husqvarna TC 450 54 CV, 40 kw 1cil. H802BA Bastidores: ZCG H802BA-5V052104-ZCG H802BA-5V052411 2005
Husqvarna TC 510 1cil. A200AB Bastidores: ZKH A200AB-8V000001-- 2008
Husqvarna TC 510 1cil. H813AA Bastidores: ZCG H813AA-6V050156-ZCGH813AA-6V050710 2006
Husqvarna TC 510 1cil. H813AA Bastidores: ZCG H813AA-7V050001-- 2007
Husqvarna TE 250 4T 16 CV, 12 kw 1cil. H810AA Bastidores: ZCG H810AA-6V000113-ZCGH810AA-6V050357 2006
Husqvarna TE 250 4T euro2 16 CV, 12 kw 1cil. H810AA Bastidores: ZCG H810AA-7V000001-- 2007
Husqvarna TE 250 4T euro3 16 CV, 12 kw 1cil. H810AA Bastidores: ZCG H810AA-7V003329-- 2007
Husqvarna TE 250 ie 12,2 CV, 9 kw 1cil. A300AA Bastidores: ZKH A300AA-AV000001-ZKHA300AA-AV049999 2010
Husqvarna TE 250 ie 20 CV, 14,5 kw 1cil. A200AA Bastidores: ZKH A200AA-8V000001-- 2008
Husqvarna TE 250 ie 20 CV, 14,5 kw 1cil. A200AA Bastidores: ZKH A200AA-9V000001-- 2009
Husqvarna TE 310 ie 12,2 CV, 9 kw 1cil. A204AA Bastidores: ZKH A204AA-9V000001-- 2009
Husqvarna TE 310 ie 12,2 CV, 9 kw 1cil. A204AA Bastidores: ZKH A204AA-AV000001-- 2010
Husqvarna TE 450 19 CV, 14 kw 1cil. H812AA Bastidores: ZCG H812AA-6V000013-ZCGH812AA-6V050764 2006
Husqvarna TE 450 euro2 19 CV, 14 kw 1cil. H812AA Bastidores: ZCG H812AA-7V000001-- 2007
Husqvarna TE 450 euro3 19 CV, 14 kw 1cil. H812AA Bastidores: ZCG H812AA-7V003332-- 2007
Husqvarna TE 450 ie 28 CV, 21 kw 1cil. A202AA Bastidores: ZKH A202AA-8V000001-- 2008
Husqvarna TE 450 ie 28 CV, 21 kw 1cil. A202AA Bastidores: ZKH A202AA-9V000001-- 2009
Husqvarna TE 450 ie 28 CV, 21 kw 1cil. A202AA Bastidores: ZKH A202AA-AV000001-- 2010
Husqvarna TE 510 19 CV, 14 kw 1cil. H813AA Bastidores: ZCG H813AA-6V000312-ZCGH813AA-6V050205 2006
Husqvarna TE 510 euro2 19 CV, 14 kw 1cil. H813AA Bastidores: ZCG H813AA-7V000001-- 2007
Husqvarna TE 510 euro3 19 CV, 14 kw 1cil. H813AA Bastidores: ZCG H813AA-7V003335-- 2007
Husqvarna TE 510 ie 30 CV, 22 kw 1cil. A203AA Bastidores: ZKH A203AA-8V000001-- 2008
Husqvarna WR 125 15 CV, 11 kw 1cil. 2H00AA Bastidores: ZCG 2H00AA-6V000011-ZCG 2H00AA-6V000662 2006
Husqvarna WR 125 15 CV, 11 kw 1cil. 2H00AA Bastidores: ZCG 2H00AA-7V000001-- 2007
Husqvarna WR 125 8 CV, 6 kw 1cil. 2H00AA Bastidores: ZCG 2H00AA-8V000001-ZCG 2H00AA-8V009999 2008
