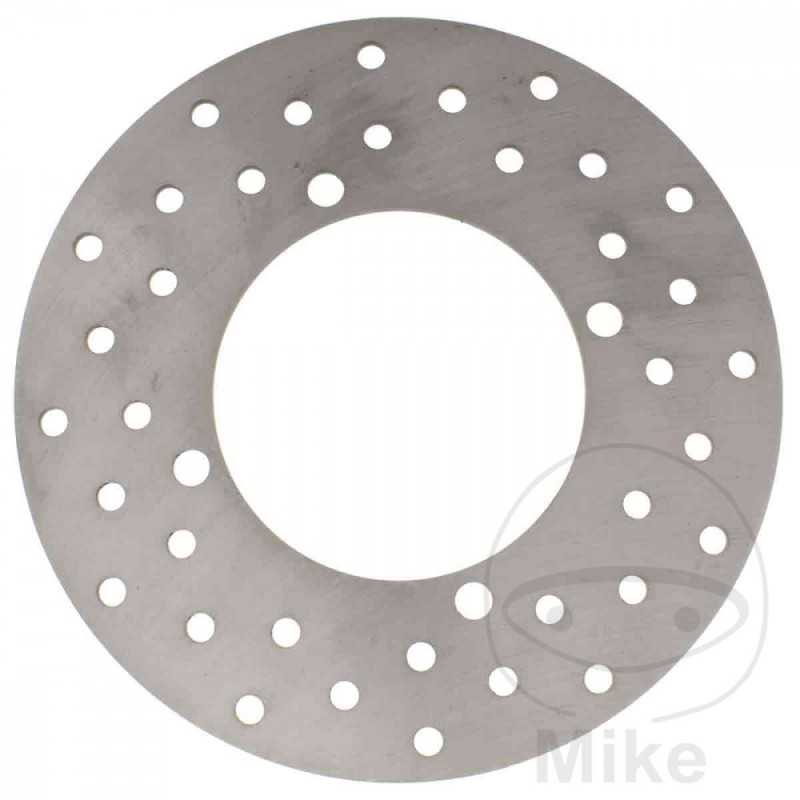

EBC Stainless steel brake disc for motorcycle 760.00.49

EBC MX brake disc for offroad / enduro and ATV. MADE IN THE UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.

The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of heat-treated carbon steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sport drivers EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 219MM
INSIDE DIAMETER: 105.6MM
CIRCLE SIZE: 124.5 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Polaris ACE 325 EFI 4WD 32 CV, 23,5 kw 1cil. - Bastidores: --- 2014-2015
Polaris ACE 570 EFI 4WD 45 CV, 33 kw 1cil. - Bastidores: --- 2015
Polaris ACE 570 SP EFI EPS 45 CV, 33 kw 1cil. - Bastidores: --- 2015
Polaris Ranger 1000 Diesel 4WD 23,4 CV, 17,2 kw 3cil. - Bastidores: --- 2015
Polaris Ranger 400 HO 4WD Mid Size 29 CV, 21,3 kw 1cil. - Bastidores: --- 2010-2012
Polaris Ranger 400 HO 4WD Mid Size 30 CV, 22,1 kw 1cil. - Bastidores: --- 2013-2014
Polaris Ranger 500 2WD 30 CV, 22 kw 1cil. - Bastidores: --- 2007-2008
Polaris Ranger 500 4WD 30 CV, 22 kw 1cil. - Bastidores: --- 2006-2007
Polaris Ranger 500 EFI 4WD Mid Size 30 CV, 22 kw 1cil. - Bastidores: --- 2007-2008
Polaris Ranger 500 EFI 4WD Mid Size 32 CV, 23,5 kw 1cil. - Bastidores: --- 2009-2012
Polaris Ranger 500 EFI Crew 4WD Mid Size 32 CV, 23,5 kw 1cil. - Bastidores: --- 2011-2012
Polaris Ranger 570 EFI 4WD Full Size 45 CV, 33 kw 1cil. - Bastidores: --- 2015
Polaris Ranger 570 EFI 4WD Mid Size 40 CV, 29,4 kw 1cil. - Bastidores: --- 2015
Polaris Ranger 570 EFI 4WD Mid Size 44 CV, 32,3 kw 1cil. - Bastidores: --- 2018
Polaris Ranger 570 EFI EPS 44 CV, 32,3 kw 1cil. - Bastidores: --- 2016-2018
Polaris Ranger 570 EFI LOF 4WD Mid Size EPS 40,8 CV, 30 kw 1cil. - Bastidores: --- 2017
Polaris Ranger 570 EFI LOF LOF EPS 40,8 CV, 30 kw 1cil. - Bastidores: --- 2016-2016
Polaris Ranger 570 EFI LOF LOF EPS 40,8 CV, 30 kw 1cil. - Bastidores: --- 2018-2018
Polaris Ranger 650 TM 2WD 18 CV, 13,2 kw 2cil. - Bastidores: --- 2006
Polaris Ranger 700 EFI 6WD 40 CV, 29,4 kw 2cil. - Bastidores: --- 2006-2008
Polaris Ranger 700 EFI 6WD 40,5 CV, 29,8 kw 2cil. - Bastidores: --- 2009
Polaris Ranger 700 EFI Crew 4WD 40 CV, 29,4 kw 2cil. - Bastidores: --- 2008
Polaris Ranger 700 EFI Crew 4WD 40,5 CV, 29,8 kw 2cil. - Bastidores: --- 2009
Polaris Ranger 700 HD EFI 4WD 40,5 CV, 29,8 kw 2cil. - Bastidores: --- 2009
Polaris Ranger 700 XP EFI 4WD 40 CV, 29,4 kw 2cil. - Bastidores: --- 2006-2008
Polaris Ranger 700 XP EFI 4WD 40,5 CV, 29,8 kw 2cil. - Bastidores: --- 2009
Polaris Ranger 800 EFI 4WD Mid-Size 50 CV, 36,9 kw 2cil. - Bastidores: --- 2013-2014
Polaris Ranger 800 EFI 6WD 2cil. - Bastidores: --- 2010-2012
Polaris Ranger 800 EFI 6WD 39,5 CV, 29 kw 2cil. - Bastidores: --- 2013-2014
Polaris Ranger 800 EFI Crew 4WD 39,5 CV, 29 kw 2cil. - Bastidores: --- 2013-2014
Polaris Ranger 800 EFI Crew 4WD 40 CV, 29,4 kw 2cil. - Bastidores: --- 2010-2012
Polaris Ranger 800 EFI Crew EPS 2cil. - Bastidores: --- 2012
Polaris Ranger 800 EFI Crew EPS 40 CV, 29,4 kw 2cil. - Bastidores: --- 2011
Polaris Ranger 800 EFI EPS 50 CV, 36,9 kw 2cil. - Bastidores: --- 2013-2014
Polaris Ranger 800 HD EFI EPS 40 CV, 29,4 kw 2cil. - Bastidores: --- 2010-2012
Polaris Ranger 800 XP EFI 4WD 46,4 CV, 34,1 kw 2cil. - Bastidores: --- 2010
Polaris Ranger 800 XP EFI EPS 46,4 CV, 34,1 kw 2cil. - Bastidores: --- 2010
Polaris Ranger 800 XP HO EFI 4WD 50 CV, 37 kw 2cil. - Bastidores: --- 2011-2012
Polaris Ranger 800 XP HO EFI EPS 50 CV, 37 kw 2cil. - Bastidores: --- 2011-2012
Polaris Ranger 900 Diesel 4WD 24 CV, 17,6 kw 3cil. - Bastidores: --- 2011-2014
Polaris Ranger 900 Diesel Crew 4WD 24 CV, 17,6 kw 3cil. - Bastidores: --- 2012-2013
Polaris Ranger 900 XP Deluxe EPS 69 CV, 50,7 kw 2cil. - Bastidores: --- 2015
Polaris Ranger 900 XP EPS 69 CV, 50,7 kw 2cil. - Bastidores: --- 2015
Polaris Ranger 900 XP Limited Edition EPS 69 CV, 50,7 kw 2cil. - Bastidores: --- 2015
Polaris Ranger EV 4WD Mid Size 30 CV, 22 kw 0cil. - Bastidores: --- 2010-2015
Polaris RZR 570 EFI 4WD 45 CV, 33 kw 1cil. - Bastidores: --- 2015
Polaris RZR 800 4 HO EFI 4WD 2cil. - Bastidores: --- 2011-2012
Polaris RZR 800 EFI 4WD 2cil. - Bastidores: --- 2008-2010
Polaris RZR 800 HO EFI 4WD 2cil. - Bastidores: --- 2011-2012
Polaris RZR 800 S HO EFI 4WD 2cil. - Bastidores: --- 2010-2010
Polaris RZR 800 S HO EFI 4WD 2cil. - Bastidores: --- 2012-2012
Polaris RZR 800 S HO EFI 4WD 20,4 CV, 15 kw 2cil. - Bastidores: --- 2009
Polaris RZR 800 S HO EFI 4WD 53 CV, 39 kw 2cil. - Bastidores: --- 2011
Polaris RZR 800 S HO EFI 4WD 53,4 CV, 39,3 kw 2cil. - Bastidores: --- 2014
Polaris RZR 800 S HO EFI 4WD 54 CV, 39,8 kw 2cil. - Bastidores: --- 2013
Polaris Sportsman 325 ETX EFI 4WD 32 CV, 23,5 kw 1cil. - Bastidores: --- 2015
Polaris Sportsman 400 HO 4WD 1cil. - Bastidores: --- 2011-2012
Polaris Sportsman 500 EFI 4WD 1cil. - Bastidores: --- 2007-2009
Polaris Sportsman 500 EFI Touring 4WD 1cil. - Bastidores: --- 2008-2009
Polaris Sportsman 500 HO 4WD 1cil. - Bastidores: --- 2007-2008
Polaris Sportsman 500 HO 4WD 1cil. - Bastidores: --- 2011-2012
Polaris Sportsman 500 HO 4WD 28,5 CV, 21 kw 1cil. - Bastidores: --- 2009
Polaris Sportsman 500 HO 4WD 36 CV, 26,5 kw 1cil. - Bastidores: --- 2010
Polaris Sportsman 500 HO Forest 4WD 36,7 CV, 27 kw 1cil. - Bastidores: --- 2011-2013
Polaris Sportsman 500 HO Touring 4WD 1cil. - Bastidores: --- 2010-2012
Polaris Sportsman 500 X2 EFI 4WD 1cil. - Bastidores: --- 2006-2009
Polaris Sportsman 570 EFI 4WD 44 CV, 32,3 kw 1cil. - Bastidores: --- 2015
Polaris Sportsman 570 EFI EPS 44 CV, 32,3 kw 1cil. - Bastidores: --- 2015
Polaris Sportsman 570 EFI Forest 4WD 44 CV, 32,3 kw 1cil. - Bastidores: --- 2014
Polaris Sportsman 570 EFI Forest EPS 44 CV, 32,3 kw 1cil. - Bastidores: --- 2014
Polaris Sportsman 570 EFI Touring 4WD 44 CV, 32,3 kw 1cil. - Bastidores: --- 2014-2015
Polaris Sportsman 700 X2 EFI 4WD 2cil. - Bastidores: --- 2008
Polaris Sportsman 800 EFI 4WD 2cil. - Bastidores: --- 2008-2012
Polaris Sportsman 800 EFI Big Boss 6WD 2cil. - Bastidores: --- 2009-2011
Polaris Sportsman 800 EFI Big Boss Forest 6WD 2cil. - Bastidores: --- 2012
Polaris Sportsman 800 EFI Touring 4WD 51,7 CV, 38 kw 2cil. - Bastidores: --- 2008-2009
Polaris Sportsman 800 HO EFI Big Boss Forest 6WD 51 CV, 37,5 kw 2cil. - Bastidores: --- 2016
Polaris Sportsman 800 HO EFI Big Boss Forest 6WD 51,7 CV, 38 kw 2cil. - Bastidores: --- 2015
Polaris Sportsman 800 X2 EFI 4WD 2cil. - Bastidores: --- 2009
