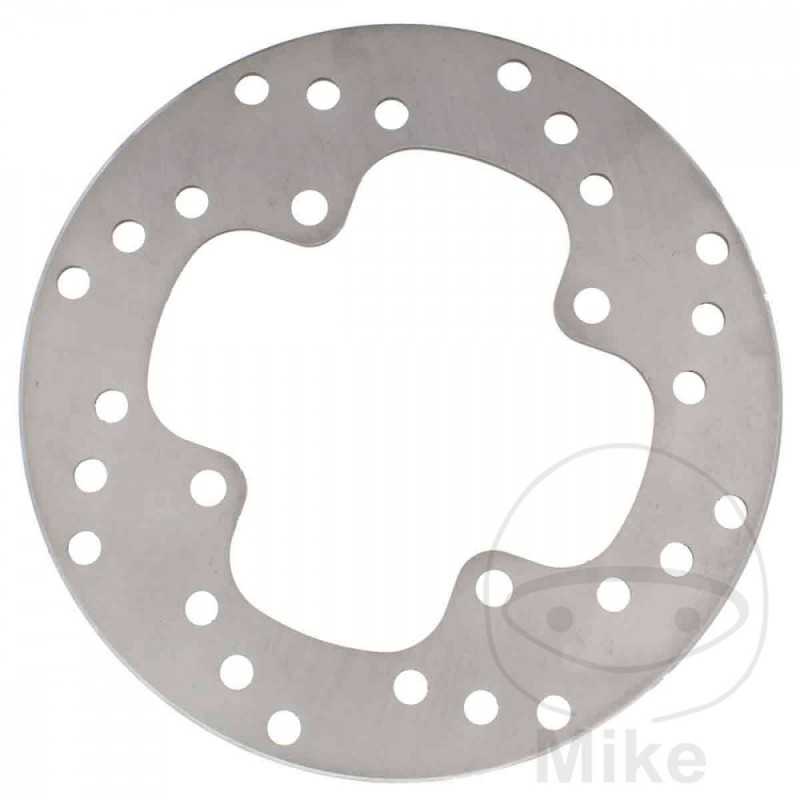

EBC Stainless steel brake disc for motorcycle 760.00.45

EBC MX brake disc for offroad / enduro and ATV. MADE IN THE UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.

The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of heat-treated carbon steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sport drivers EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 180MM
INNER DIAMETER: 82MM
CIRCLE SIZE: 100 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 8.5 MM
THICKNESS: 4.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BOMBARDIER OUTLANDER 330 2WD 19,5 CV, 14,3 KW 1CIL. - BASTIDORES: --- 2004-2005
BOMBARDIER OUTLANDER 330 4WD 19,5 CV, 14,3 KW 1CIL. - BASTIDORES: --- 2004-2005
BOMBARDIER OUTLANDER 400 18,3 CV, 13,5 KW 1CIL. - BASTIDORES: --- 2003-2004
BOMBARDIER OUTLANDER 400 MAX 18,3 CV, 13,5 KW 1CIL. - BASTIDORES: --- 2003-2006
BOMBARDIER OUTLANDER 800 MAX 64 CV, 47 KW 2CIL. - BASTIDORES: --- 2006
BOMBARDIER OUTLANDER 800 XT MAX 64 CV, 47 KW 2CIL. - BASTIDORES: --- 2006
CAN-AM OUTLANDER 400 32 CV, 23,5 KW 2CIL. - BASTIDORES: --- 2010-2014
CAN-AM OUTLANDER 400 INTERNATIONAL 32 CV, 23,5 KW 2CIL. - BASTIDORES: --- 2013-2014
CAN-AM OUTLANDER 400 MAX 32 CV, 23,5 KW 2CIL. - BASTIDORES: --- 2010-2014
CAN-AM OUTLANDER 400 XT MAX 32 CV, 23,5 KW 2CIL. - BASTIDORES: --- 2010-2014
CAN-AM OUTLANDER 500 40,4 CV, 29,7 KW 2CIL. - BASTIDORES: --- 2011-2012
CAN-AM OUTLANDER 500 MAX 40,4 CV, 29,7 KW 2CIL. - BASTIDORES: --- 2011-2012
CAN-AM OUTLANDER 500 XT DPS 40,4 CV, 29,7 KW 2CIL. - BASTIDORES: --- 2010-2012
CAN-AM OUTLANDER 500 XT MAX DPS 40,4 CV, 29,7 KW 2CIL. - BASTIDORES: --- 2010-2012
CAN-AM OUTLANDER 650 60 CV, 44,7 KW 2CIL. - BASTIDORES: --- 2010-2012
CAN-AM OUTLANDER 650 MAX 60 CV, 44,7 KW 2CIL. - BASTIDORES: --- 2010-2012
CAN-AM OUTLANDER 650 XT DPS 60 CV, 44,7 KW 2CIL. - BASTIDORES: --- 2010-2012
CAN-AM OUTLANDER 650 XT MAX DPS 60 CV, 44,7 KW 2CIL. - BASTIDORES: --- 2010-2012
CAN-AM OUTLANDER 800 R 71 CV, 52,2 KW 2CIL. - BASTIDORES: --- 2011
CAN-AM OUTLANDER 800 R MAX 71 CV, 52,2 KW 2CIL. - BASTIDORES: --- 2011-2012
CAN-AM OUTLANDER 800 R MAX LIMITED DPS 71 CV, 52,2 KW 2CIL. - BASTIDORES: --- 2010-2012
CAN-AM OUTLANDER 800 R X-MR DPS 71 CV, 52,2 KW 2CIL. - BASTIDORES: --- 2011-2012
CAN-AM OUTLANDER 800 R XT DPS 71 CV, 52,2 KW 2CIL. - BASTIDORES: --- 2011
CAN-AM OUTLANDER 800 R XT MAX DPS 71 CV, 52,2 KW 2CIL. - BASTIDORES: --- 2010-2012
CAN-AM OUTLANDER 800 R XT-P DPS 71 CV, 52,2 KW 2CIL. - BASTIDORES: --- 2010-2011
CAN-AM OUTLANDER 800 R XT-P MAX DPS 71 CV, 52,2 KW 2CIL. - BASTIDORES: --- 2010-2012
CAN-AM OUTLANDER 800 R X-XC DPS 71 CV, 52,2 KW 2CIL. - BASTIDORES: --- 2010-2012
CAN-AM RENEGADE 500 40,4 CV, 29,7 KW 2CIL. - BASTIDORES: --- 2010-2012
CAN-AM RENEGADE 800 R 71 CV, 52,2 KW 2CIL. - BASTIDORES: --- 2010-2011
CAN-AM RENEGADE 800 R X-XC DPS 71 CV, 52,2 KW 2CIL. - BASTIDORES: --- 2010-2011
