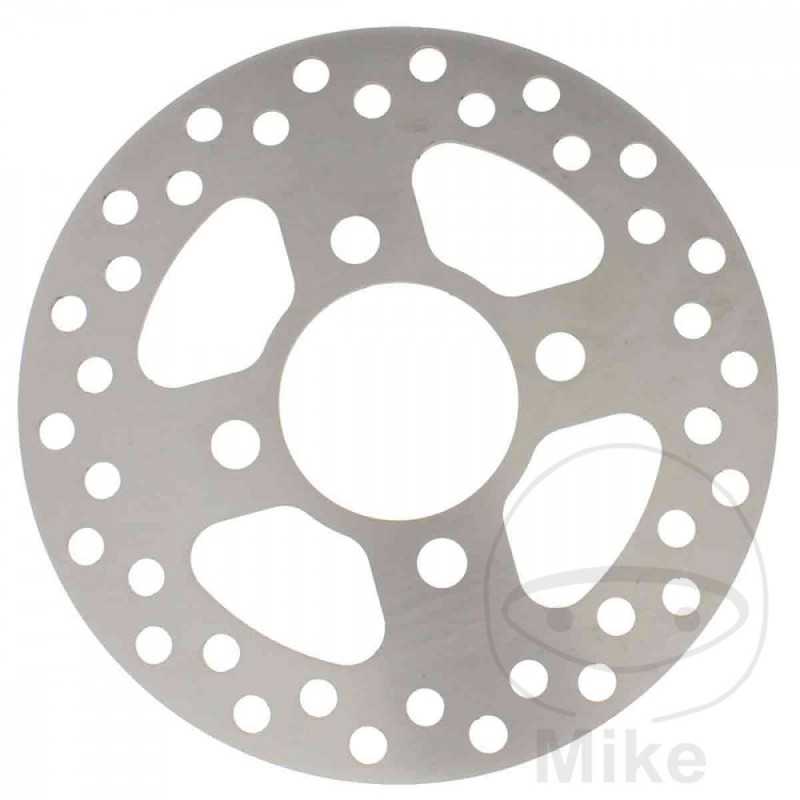

EBC Stainless steel brake disc for motorcycle 760.00.40

EBC MX brake disc for offroad / enduro and ATV. MADE IN THE UK.

The aim of the development is to improve the braking performance compared to the original brake disc. EBC uses HPSR low carbon steel, which has an 18% higher coefficient of friction. This steel is much more resistant to rust than cast steel. In addition, the entire surface is protected by a 3 micron thick layer of zinc, which wears off in the area of the contact patch of the brake pad during braking. Only in this area can it rust more easily over a long life.

The brake discs are perforated in Vogelschwingendesign in order to get along with as few holes as possible and to optimize the cleaning of the brake disc from rainwater and brake dust. The fewer holes there are, the better the wet braking performance and the less wear.

- Rigid brake disc.

- Made of heat-treated carbon steel.

- Drilled brake surface with optimized hole pattern.

- Radially ground.

- Galvanized for protection against corrosion.

- EBC recommends EBC Organic TT brake pads or for sport drivers EBC sintered brake pads in R or MXS mix.

- Independent design.

- The thickness of the brake disc may vary compared to the original part.
OUTER DIAMETER: 163MM
INSIDE DIAMETER: 51.2MM
CIRCLE SIZE: 72 MM
QUANTITY OF HOLES: 4
HOLE DIAMETER: 10.5 MM
THICKNESS: 3.5MM
VERSION: RIGID


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki KFX 450 R KSF 1cil. SF450BBB B8F Bastidores: SF450BBB-600001-SF450BBB-602900 2008
Kawasaki KFX 450 R KSF 1cil. SF450BBB B9F Bastidores: SF450BBB-602901-SF450BBB-603700 2009
Kawasaki KFX 450 R KSF 1cil. SF450BBB BAF Bastidores: SF450BBB-603701-SF450BBB-604000 2010
Kawasaki KFX 450 R KSF 1cil. SF450BBB BBF Bastidores: SF450BBB-604001-SF450BBB-604400 2011
Kawasaki KFX 450 R KSF 1cil. SF450BBB BCS Bastidores: SF450BBB-604401-SF450BBB-604700 2012
Kawasaki KFX 450 R KSF 1cil. SF450BBB BDF Bastidores: SF450BBB-604701-SF450BBB-604900 2013
Kawasaki KFX 450 R KSF 1cil. SF450BBB BEF Bastidores: SF450BBB-604901-SF450BBB-999999 2014
Kawasaki KFX 700 A KSV 2cil. SV700AAB 1 Bastidores: SV700AAB-600001-SV700AAB-602000 2004
Kawasaki KFX 700 A KSV 2cil. SV700AAB 2 Bastidores: SV700AAB-602001-SV700AAB-999999 2005
Kawasaki KFX 700 A KSV 49 CV, 36,3 kw 2cil. SV700AAB 6F Bastidores: SV700AAB-603201-SV700AAB-604200 2006
Kawasaki KFX 700 A KSV 49 CV, 36,3 kw 2cil. SV700AAB 7F Bastidores: SV700AAB-604201-SV700AAB-604699 2007
Kawasaki KFX 700 A KSV 49 CV, 36,3 kw 2cil. SV700AAB 8F Bastidores: SV700AAB-604700-SV700AAB-605200 2008
Kawasaki KFX 700 A KSV 49 CV, 36,3 kw 2cil. SV700AAB 9F Bastidores: SV700AAB-605201-SV700AAB-605700 2009-2010
Kawasaki KFX 700 A KSV 49 CV, 36,3 kw 2cil. SV700AAB BF Bastidores: SV700AAB-605701-SV700AAB-999999 2011
